Home > Products > Diesel Engine > kama type diesel engine, Italy type diesel engine ,small diesel engine (YL186FA)

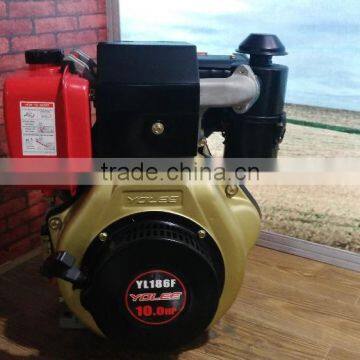

kama type diesel engine, Italy type diesel engine ,small diesel engine (YL186FA)
USD $160 - $250
/ Set
50 Sets(Min.Order)
- Ningbo/Shanghai
- T/T Credit Card
You May Like
Product Details
| Usage | Other, Water pump | Fuel | Diesel | |
| Stroke | 4 Stroke | Cylinder | Single Cylinder | |
| Cold Style | Other, Air-cooled | Start | Kick Start | |
| Place of Origin | Zhejiang, China | Brand Name | YOLEE | |
| Model Number | YL186FA | Dimension(L*W*H) | 485*485*545MM | |
| Weight | 53KGS | Certification | CE | |
| Warranty | One year | After-sales Service Provided | Overseas service center available |
Product Description
KAMA Diesel Engine Modle: YL186FA diesel engine price manual engine
10HP Diesel engine
1) Adopt 4-Stoke, air cooled, single cylinder engine;
2) Close in structure, simple in operation and covenievent in takeing or bringing;
3) Easy start system with low fuel consumption
4) CE & ISO9001 approved
5) Warranty will be one year from the shipping date
| Model | 186FA |
| Cooling method | Air-cooled |
| Type | Single cylinder, Vertical, Fourstroke, Direct injection |
| Bore× Stroke(mm) | 86*72 |
| Displacement(ML) | 418 |
| Compression ratio | 20± 1 |
| Engine Speed | 3000/3600 |
| Rated power(kw/rpm) | 5.5/3000 5.8/3600 |
| Max Power(kw/rpm) | 6.2/3000 6.6/3600 |
| Fuel | 0#or-10# light diesel oil |
| Fuel tank capacity(L) | 5.5 |
| Fuel consumption Rate(g/kw. h) | 285 |
| Lub-oil capacity(L) | 1.65 |
| Lubricating method | Pressure and splash combined |
| Crankshaft Direction | Clockwise from flywheel end |
| Starting method | Recoil manual start or electric start |
| Overall dimensions(L× W× H) (mm) | 485× 485× 545 |
| Dry weight(kg) | 53(recoil) 56(electric) |
Diesel engine exploded drawing
