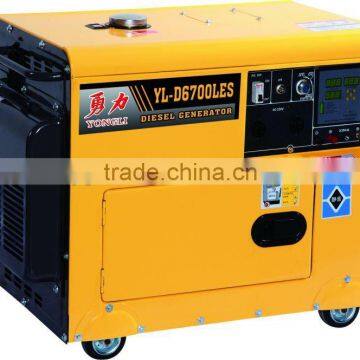

6KW diesel generator ATS DIGITAL display

FOB Price

Negotiable / Set

10 Sets(Min. Order)

Port Ningbo/shanghai port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	YOLEE
Model Number	YL-D6700LES	Output Type	AC Single Phase
Speed	300rpm/min	Frequency	50HZ
Rated Power	6KW	Rated Voltage	220V

Product Description

Specifications

Silent Diesel Generator
1. CE approved, powered by advanced air-cooled kama engine.
2. Noise-reducing enclosure,

Model	YL-D7700LES
Rated frequency (Hz)	50	60
Rated voltage (V)	220, 230, 240, 220/110, 230/115, 240/120

Rated output power (KVA)	5.5	6
Rated rotation speed (rpm)	3000	3600
DC output	12V, 7A
Power factor cosφ	1
Phase number	Single phase
Excitation mode	Self-excitation Brushless

Noise level dB(A)@ 7m (zero load - full load)	72

Overall dimension [mm(in)](L× W× H)	925× 520× 740

Net weight kg	160
Structure model	Low noise type with enclosure
Connection mode	Single bearing, rotor drive shaft, rigid coupling
Engine model	188F
Engine type	1-cylinder, 4-stroke, air-cooled, direct injection, diesel engine
Displacement	456CC
Compression ratio	19: 01
Rated power [KW(Hp)/rpm]	6.8 (7.6)/3600
Starting system	Electric starting
Rotation direction (view from flywheel)	Clockwise
Fuel type	0 (sumber), 10 (winter) diesel oil
Lube	SAE10W30 (above CC grade)
Low oil pressure alarm system	With

	Silent Diesel Generator 1. CE approved, powered by advanced air-cooled diesel engine. 2. Noise-reducing enclosure, made of high-efficient noise-proof material. 3. Ideal for home emergency use or as standby power supply. 4. Large fuel tank, ensuring hours of continuous output. 5. Advanced direct fuel injection system. 6. Large silent muffler & air-cleaner, reducing exhaust and intake noise. 7. A variety of specially-designed control panels available for different markets.

Silent Diesel Generator
1. CE approved, powered by advanced air-cooled diesel engine.

2. Noise-reducing enclosure, made of high-efficient noise-proof material.

3. Ideal for home emergency use or as standby power supply.

4. Large fuel tank, ensuring hours of continuous output.

5. Advanced direct fuel injection system.

6. Large silent muffler & air-cleaner, reducing exhaust and intake noise.

7. A variety of specially-designed control panels available for different markets.

OPITION:

DIGITAL display:display voltage,frequency,power,amp,etc

ATS : With the city electric grid, the generators automatically switch to automatic control box to start generating and with the normal power supply when net power off. City electricity to be restored, the automatic switch box automatically switch to the city and the normal electric power supply, standby generator in the state

Diesel engine drawing
