2017 type diesel generator (hot sales!)
- Ningbo/Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YOLEE | |
| Model Number | YLD6700LES | Output Type | AC Single Phase | |
| Speed | 3000rpm | Frequency | 50HZ | |
| Rated Power | 5KW | Rated Voltage | 220V | |
| Rated Current | 21A |
Product Description

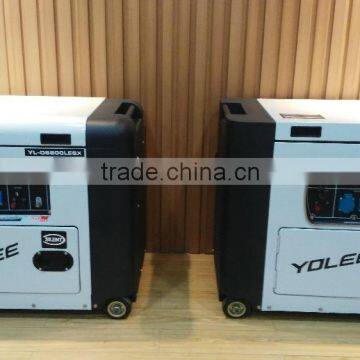

Silent Diesel Generator with kama engine
1. CE approved, powered by advanced air-cooled diesel engine.
2. Noise-reducing enclosure, made of high-efficient noise-proof material.
3. Ideal for home emergency use or as standby power supply.
4. Large fuel tank, ensuring hours of continuous output.
5. Advanced direct fuel injection system.
6. Large silent muffler & air-cleaner, reducing exhaust and intake noise.
7. A variety of specially-designed control panels available for different markets.
Diesel engine drawing
Model | YL-D6500LES | | |
Rated frequency (Hz) | 50 | 60 | |
Rated voltage (V) | 220, 230, 240, 220/110, 230/115, 240/120 |
| |
| |||
Rated output power (KVA) | 4.5 | 5 | |
Rated rotation speed (rpm) | 3000 | 3600 | |
DC output | 12V, 7A | | |
Power factor cosφ | 1 | | |
Phase number | Single phase | | |
Excitation mode | Self-excitation Brushless |
| |
| |||
Noise level dB(A)@ 7m (zero load - full load) | 72 |
| |
| |||
Overall dimension [mm(in)](L× W× H) | 925× 520× 740 | | |
| | ||
Net weight kg | 160 | | |
Structure model | Low noise type with enclosure | | |
Connection mode | Single bearing, rotor drive shaft, rigid coupling | | |
Engine model | 186F | | |
Engine type | 1-cylinder, 4-stroke, air-cooled, direct injection, diesel engine | | |
Displacement [cm³ (Cu-in)] | 406 (24.78) | | |
Compression ratio | 19: 01 | | |
Rated power [KW(Hp)/rpm] | 6.3 (8.6)/3600 | | |
Starting system | Electric starting | | |
Rotation direction (view from flywheel) | Clockwise | | |
Fuel type | 0 (sumber), 10 (winter) diesel oil | | |
Lube | SAE10W30 (above CC grade) | | |
Low oil pressure alarm system | With |
| |
