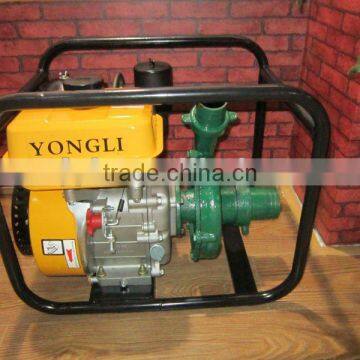

Cast Iron water pump

FOB Price

USD $50 - $200 / Set

10 Sets(Min.Order)

Supply Ability 50000 Set / Sets per Month
Port Ningbo/Shanghai Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	YOLEE
Model Number	YL-DWP80B	Theory	Centrifugal Pump
Structure	Gear Pump	Usage	Water
Power	Other, power	Standard or Nonstandard	Nonstandard
Fuel	Diesel	Pressure	High Pressure
Application	Fire

Product Description

* IRON  pump  body design

* High quality and mechanical sealed equipment

* Compact structure ,light weight,easy operation

* Easy maintenance

	Diesel Engine 1) Type: 1-cylinder, 4-stroke, air-cooled swirl chamber diesel engine 2) Work capacity: 196cm³ 3) Max. Output: 3.5horsepower/3000rpm 4) Ignition system: Non-contact transistor 5) Starting system: Recoil 6) Fuel tank capacity: 3L 7) Continuous operating time: 3hours 8) Engine oil system capacity: 0.7L Diesel engine advantage: 1.Competivite price 2.New design and good market Water Pump: 1) Diameter of outlet/inlet: 3inch /2.5inch 2) Max. Delivery lift:25 2) Rated power:2.5kw 3) Max. Water displacement: 500L /MIN Size and weight: 1) Over dimension(LWH): 535400420mm 2) Dry weight:34kg

Diesel Engine
1) Type: 1-cylinder, 4-stroke, air-cooled swirl chamber diesel engine
2) Work capacity: 196cm³
3) Max. Output: 3.5horsepower/3000rpm
4) Ignition system: Non-contact transistor
5) Starting system: Recoil

6) Fuel tank capacity: 3L
7) Continuous operating time: 3hours
8) Engine oil system capacity: 0.7L

Diesel engine advantage:

1.Competivite price

2.New design and good market

Water Pump:
1) Diameter of outlet/inlet: 3inch /2.5inch
2) Max. Delivery lift:25

2) Rated power:2.5kw

3) Max. Water displacement: 500L /MIN
Size and weight:
1) Over dimension(L*W*H): 535*400*420mm
2) Dry weight:34kg

Model	YL-DWP50B	YL-DWP80B	YL-DWP65B

Suction port diameter	(2")	(3")	(2.5")
Discharge port diamter	(2")	(2.5")	(2")
Total head	30m	25m	40m
flow rate	335L/min	500L/min	420L/min
Fuel tank capacity	3.6L	3.6L	3.6L
Net weight	30KG	34KG	30KG
Dimensions	535400420	535400420	535400420
Engine model	YL170FA	YL170FA	YL170FA
Type	Single-cylinder,4-stroke,air-cooled,swirl chamber
Engine speed	3000rpm
Engine outpurt	2.5kw
Bore*stroke	70*54mm
Displacement	208cc
Lube-oil capacity	0.7L
