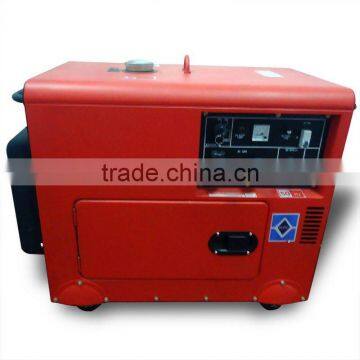

silent diesel generator 5kw with kama engine

FOB Price

Negotiable / Set

10 Sets(Min. Order)

Port Ningbo/Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	YOLEE
Model Number	YL-DG6600SE	Output Type	AC Single Phase
Speed	3000rpm/min	Frequency	50HZ
Rated Power	5KW	Rated Voltage	220V
Rated Current	22A

Product Description

Specifications

Diesel GeneratorAir-Cooled Diesel Generator
1. 5KW diesel generator set, silent type.
2. With electrical start,

Diesel GeneratorAir-Cooled Diesel Generator
1. 5KW diesel generator set, silent type.
2. With electrical start,
3. With CE certification.
4. Manufacturer's price

. With CE certification and so on
2. We produce engine more the 10 years
3. Our AVRs are more steady
4. Our productions range from 2KW to 6KW
5. Our dynamotors are 100% copper
6. We can Design and increase ATS, digital panel, three phase, type output and any other equipment you need.
7. Our guarantee is 1 years.
8. Our engine passed the continual500 hours

Advantage:
Features: High thermal efficiency, Flexible, easy maintenance
Scope: Emergency supply power for small office and home

Model	YL-DG6600SE
Rated frequency (Hz)	50	60
Rated voltage (V)	220, 230, 240, 220/110, 230/115, 240/120

Rated output power (KVA)	4.5	5
Rated rotation speed (rpm)	3000	3600
DC output	12V, 7A
Power factor cosφ	1
Phase number	three phase
Excitation mode	Self-excitation Brushless

Noise level dB(A)@ 7m (zero load - full load)	70-74

Overall dimension [mm(in)](L× W× H)	920× 520× 700
	36.22× 20.47× 27.56
Net weight [kg(lbs)]	140 (308)
Structure model	Low noise type with enclosure
Connection mode	Single bearing, rotor drive shaft, rigid coupling
Engine model	186FE
Engine type	1-cylinder, 4-stroke, air-cooled, direct injection, diesel engine
Displacement [cm³ (Cu-in)]	406 (24.78)
Compression ratio	19: 01
Rated power [KW(Hp)/rpm]	6.3 (8.6)/3600
Starting system	Electric starting
Rotation direction (view from flywheel)	Clockwise
Fuel type	0 (sumber), 10 (winter) diesel oil
Lube	SAE10W30 (above CC grade)
Low oil pressure alarm system	With

Diesel engine drawing and CE certificated
