SME S12R-PTAA2-C Diesel Engines 1200KW*1500rpm for Marine And Power Plant
- T/T
- 30 days
You May Like
-
Shanghai Mitsubishi Engine SME S12R-PTA2-C Marine Diesel Engine 1100KW*1500rpm
-
Shanghai Mitsubishi Engine SME S12R-PTA-C Marine Diesel Engine
-
MTU 4000 Series Engine And Generator Sets for Marine And Power Plant
-
BF-iCabinet 2MW HFO Industrial And Mining Mobile Containerized Generator Sets Power Station
-
BF-icabinet 1MW Mobile Containerized Gas Generator Sets for Cogeneration,refuse Landfill And Farms Gas Power Plant
-
MTU 4000 Series Engines And Diesel/gas Generator Sets Used for Marine And Standby Power for Hospital,data Center And Mining Industry
Product Details
| Type | Electric Motor | Fuel | Diesel | |
| Speed | High Speed | Ignition Mode | Electric Ignition | |
| Cooling Cylinder | Air-Cooled | Intake Pressure Impulse | Supercharged | |
| Piston Movement | Reciprocating | Cylinder Arrangement Form | V | |
| Number of Cylinders | 12-Cylinder |
Product Description
BFMP MAN generator sets and marine engine stock list

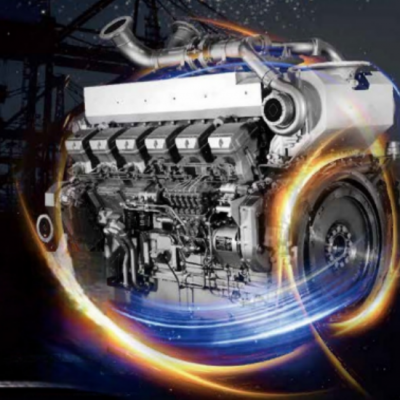

SME S12R-PTAA2-C Diesel Engine
·High-strength engine block and crankshaft connecting rod system, high reliability with high power.
·Production of high quality parts for engine. The core parts (turbocharger, high pressure fuel pump and fuel injector) are produced by MHI.
·The advanced intake system and fuel system of MITSUBISHI, high fuel injection pressure, good atomization, full combustion, perfect matching of air intake and fuel supply, and improve economic performance and emission performance.
·Large displacement, high power, high cost performance and outstanding competitiveness. Cases: buildings, schools, hospitals, factories.
SME S12R-PTAA2-C Diesel Engine
TECHNICAL PARAMETERS
Model | S12R-PTAA2-C | |
Engine Type | Direct injection/4-storke/Water-cooled | |
Intake Type | Turbo Charger/Air-air intercooler | |
No.of Cylinders | 12-V | |
Bore*stroke | mm | 170*180 |
Displacement | L | 49.03 |
Comperession Ratio | 13.5:1 | |
Prime Power with fan | kW | 1277 |
Standby Power with fan | kW | 1404 |
Prime power of genset | kW/KVA | 1200KW(1500KVA) |
Standby power of genset | kW/KVA | 1320KW(1650KVA) |
Rated speed | r/min | 1500 |
Type of govemor | Electrical Governor | |
Fuel Consumption | L/h | 317 |
Exhaust Air pipe diameter | mm | 321 |
Exhaust Gas flow | m3/min | 287 |
Exhaust temperature | ℃ | 520 |
Intake Air flow | m3/min | 102 |
Oil total | L | 180 |
Oil consumption rate | g/kw.h | 0.4 |
Flywhee Teeth | 193teeth | |
Flywheel Housing | SAE No.00 | |
Flywheel | SAE 21in | |
Dimension(L×W×H) | mm | 2520*1435*1978 |
Gross weight | Kg | 5300 |
