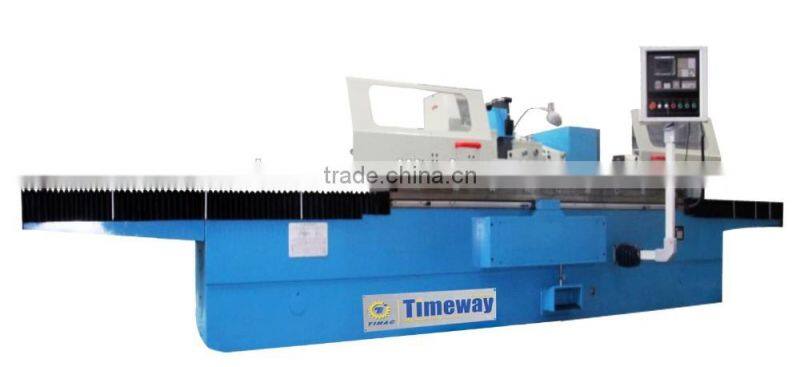

Economical-type High Efficiency CNC (Universal) Cylindrical Grinding Machine (Horizontal Cylindrical Grinder)

Economical-type High Efficiency CNC (Universal) Cylindrical Grinding Machine

GKE-320B    GK-320B

Main Functions and Features

1. The CNC cylindrical grinder is suitable for batch production of cylindrical parts grinding with high performance-to-price ratio.
2. The electrical system is controlled by KND1000Ti, and the executive system is driven by the CNC servo driver and servo motor. Worktable longitudinal travel and wheelhead cross traverse which with the high infeed accuracy are realized by the servo motors via the ball screw transmission. With the touch screen and human-machine interface. The machine is easy to operate. With other systems ans configured online automatic measuring instrument can also be based on user's needs.
3. The machine is simple and easy to operate. After simple training, it can be operated easily. By setting the parameter of longitudinal grinding or plunge grinding via the touch screen, an auto-grinding for the different workpiece is realized. With the function of worktable trip-stop, the machine can grind more than one journals of one workpiece automatical. The machine is simple and easy to operate. After simple training, it can be operated easily. By setting the parameter of longitudinal grinding or plunge grinding via the touch screen, an auto-grinding for the different workpiece is realized. With the function of worktable trip-stop, the machine can grind more than one journals of one workpiece automatically. The process parameter of more than one journals can be discretionary for long grinding of plunge grinding.
4. With the function of wheel dressing and compensation automatically.
5. Wheelhead spindle is supported by three bushing hydro-dynamic bearing, and high precision hydro dynamic-static bearing is also available for the user.
6. Timing provision of lubrication for machine moving parts according to program designing. Automatic lubrication of all moving parts. Tailstock has two ways:hydraulic and manual.
7. Workpiece, oil pump, coolant pump is driven by a separate motor.
8. The headstock is available to achieve continuously vatiable by frequency motor according to user's needs.

Main Accessories

• Wheel periphery dresser
• Wheel hub
• Balancing arbor
• Open-type steady rest
• Wheel extractor
• Magnetic separator

Extra Accessories

• Wheel balancing stand
• Hybrid wheel spindle
• Diameter measuring instrument

Technical Parameters

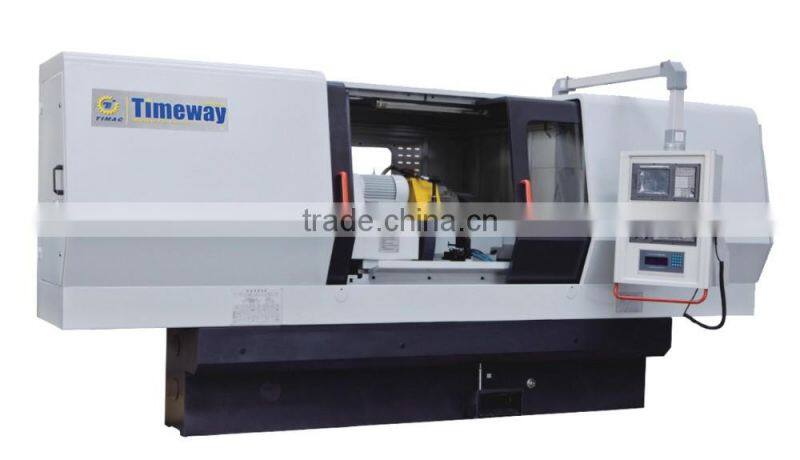

                                           Full protection shield type
