ROTARY TABLE

Features:

1. TS..A series rotary table is one of the most important accessary of milling machine. It is widely used for index boring , milling ,circle cutting,circle curve plane and segment etc operation.
2. As a option ,different table supply different flange, flange will be packed separately .otherwise ,dividing plates which provides from the option can indexing all of the integer between 2 and 66 also can indexing the numbers between 67 and 132 which can be divided exactly by number 2 .3 and 5.

Main specification:

Specification	TS160A	TS200A	TS250A	TS320A	TS400A	TS500A	TS630A	TS800A	TS1000A
Table diameter mm	Φ200	Φ200	Φ250	Φ320	Φ400	Φ500	Φ630	Φ800	Φ1000
Morse taper of the center hole	2#	3#		4#		5#		6#
width of the T-slot mm	10	12		14		18		22
Adjacent angle of table T-slot	90°		60°			45°
Width of the locating key mm	12	14		18		--	--	--	--
Graduation of the table	360°
Minimum value of vernier	10"
Indexing accuracy	80"	60"
Max workload kg	100	150	200	250	300	550	700	1200	2000
Net weight Kg	16.5	22.5	33.5	65	125	215	345	800	1300
Gross weight Kg	21.5	31	44.5	76	145	238	377	855	1400
Case dimensions mm	400×330	400×360	500×400	580×480	750×616	850×730	995×900	1175×1090	1430×1224
Case dimensions mm	×200	×208	×210	×238	×280	×302	×326	×391	×550

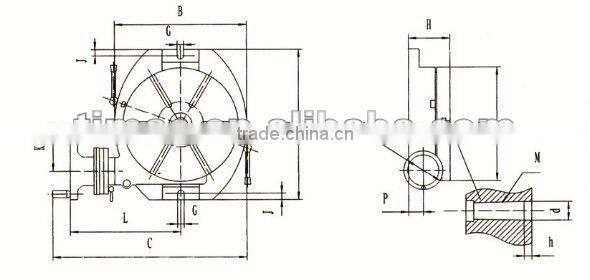

DIMENSIONAL SKETCH:

Installation sketch and dimensions:

Model	TS160A	TS200A	TS250A	TS320A	TS400A	TS500A	TS630A	TS800A	TS1000A
A	260	290	330	410	530	640	820	1000	1170
B	196	238	286	360	450	560	700	890	1080
C	332	368	422	493	612	753	898	1080	1295
D	Φ160	Φ200	Φ250	Φ320	Φ400	Φ500	Φ630	Φ800	Φ1000
G	12	14		18		22		22	--
H	75	80	90	110	140	158.5	160	215	250
J	12	14		18		22		30	--
K	76	91.25	102.5	128.5	180	230	295	364	364
L	194	211	241	273	337	383	488	535	654
M	MT2	MT3		MT4		MT5		MT6
P	27	27	30.5	44	60	65	60	78	108
Q	125				160	180	220	250
d	Φ25	Φ30		Φ40		Φ50		Φ50
h	6			10		12		14

Optional
Dividing plate 1 set
Flange 1 set
