SEMI-UNIVERSAL DIVIDING HEAD
USD $200 - $600
/ Set
10 Sets(Min.Order)
- 500 Set / Sets per Month
- China port
- T/T Credit Card
You May Like
Product Details
| Brand Name | TIMAC | Model Number | TBS-0, TBS-1 |
Product Description

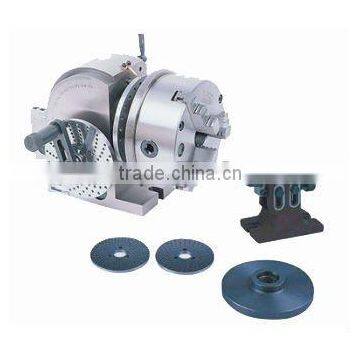

SEMI-UNIVERSAL DIVIDING HEAD
Features:
1. Semi-Universal Dividing Head is a simple Index Center and can be used for direct and indirect dividing.
2. Completes the gear,face,flute processing and no need accessories,but the whole construction is the same of the universal type.
3. The 24 quick-dividing holes can complete 2,3,4,,6,8,12,24 division indexding.Attaches 3 dividing palte along with the dividing head indirect dividing in any division indexding 2-50, 51-380.
SEMI-UNIVERSAL INDEX (HEAD-STOCK)
Unit:mm/in
| Model | A | B | H | h | a | b | g | Taper of Center | Diameter of Spindle hole | N.W.(kg) |
| TBS-0 | 193 | 140 | 173 | 100 | 166 | 90 | 16 | MT2 | 18 | 23.8 |
| 7.59 | 5.51 | 6.81 | 3.93 | 6.53 | 3.54 | 0.63 | N0.7 | |||
| TBS-1 | 242 | 168 | 220 | 128 | 206 | 113 | 16 | MT3 | 20 | 35.8 |
| 9.52 | 6.61 | 8.66 | 5.04 | 8.11 | 4.45 | 0.63 | N0.9 |
SEMI-UNIVERSAL INDEX CENTER (TAIL-STOCK)
Unit:mm/in
| Model | A1 | B1 | H1 | h | a1 | b1 | g1 | N.W.(kg) | Measurement m³ |
| TBS-0 | 175 | 87 | 107 | 100 | 130 | 92 | 16 | Packed with the Dividing head | |
| 6.89 | 3.42 | 4.21 | 3.93 | 5.12 | 3.62 | 0.63 | |||
| TBS-1 | 183 | 87 | 137 | 128 | 158 | 110 | 16 | Packed with the Dividing head | |
| 7.2 | 3.42 | 5.39 | 5.04 | 6.22 | 4.33 | 0.63 | |||
STANDARD ACCESSORIES
Dividing plate A,B,C.
Numbers of holes of dividing plate(worm gear reduction ratio 1:40)
Unit:mm/in
| Numbers of hole. | Plate A | 15 | 16 | 17 | 18 | 19 | 20 |
| Plate B | 21 | 23 | 27 | 29 | 31 | 33 | |
| Plate C | 37 | 39 | 41 | 43 | 47 | 49 |
