Home > Products > Machine Tool Accessories > UNIVERSAL DIVIDING HEAD
UNIVERSAL DIVIDING HEAD
Negotiable
/ Set
10 Sets(Min.Order)
- 500 Set / Sets per Month
- China port
- T/T Credit Card
You May Like
Product Details
| Brand Name | TIMAC | Model Number | TBS-2 |
Product Description
Specifications
1. Universal dividing head2. Milling dividing
3. TS-2
4. Popular export & competitive price

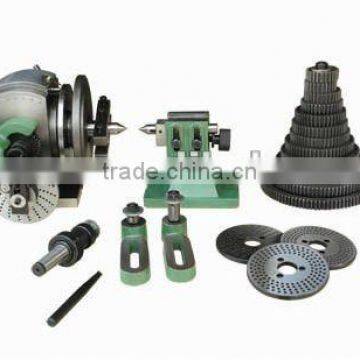

UNIVERSAL DIVIDING HEAD
Features:
1. The Universal dividing head (Index Center) has been designed to carry out all types of gear cutting.
2. Precision dividing and spiral word with greater precision and efficiency than before .
3. The center face can adjust from elevation 90 to depression 10,It suits for high standard inspection and test.
4. In order to satisfied customers,the worm gear radio is designed for 1:40.
UNIVERSAL INDEX CENTER (HEAD-STOCK)
Unit:mm/in
| Model | A | B | H | h | a | b | g | Work hole taper | N.W.(kg) |
| TBS-2 | 370 | 280 | 236 | 133 | 212 | 134 | 16 | MT4 | 73 |
| 14.57 | 11.02 | 9.29 | 5.24 | 8.35 | 5.28 | 0.63 | B&SN0.10 |
UNIVERSAL INDEX CENTER (TAIL-STOCK)
Unit:mm/in
| Model | A1 | B1 | H1 | h | a1 | b1 | g1 | N.W.(kg) | Measurement m³ |
| TBS-2 | 183 | 87 | 156 | 133 | 175 | 122 | 16 | Packed with the Dividing Head | |
| 7.2 | 3.42 | 6.14 | 5.24 | 6.89 | 4.8 | 0.63 | |||
STANDARD ACCESSORIES
Dividing plate A,B,C.
Numbers of holes of dividing plate(worm gear reduction ratio 1:40)
Unit:mm/in
| Numbers of hole. | Plate A | 15 | 16 | 17 | 18 | 19 | 20 |
| Plate B | 21 | 23 | 27 | 29 | 31 | 33 | |
| Plate C | 37 | 39 | 41 | 43 | 47 | 49 |
