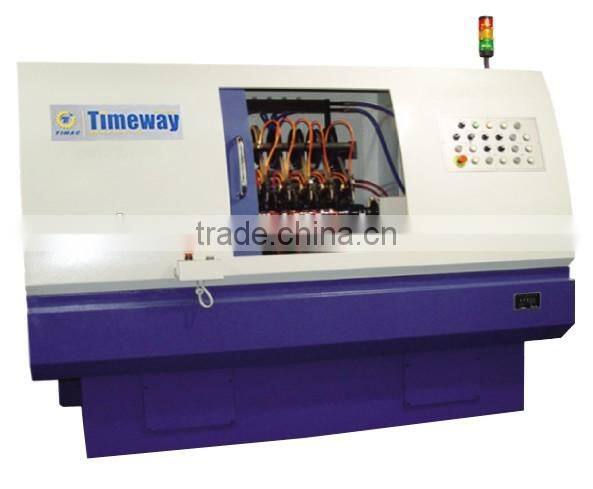

Cam Shaft Belt Polishing Machine (Metal Burnishing Machine)

High Precision Cam Shaft Belt Polishing Machine

P-100

Machine Summary

• Based on absorbed international advanced technology, P-100 camshaft abrasive belt polishing machine is a kind of machine tool, designed, developed and manufactured by our company, exclusively used for excircle surface polishing of camshaft components.

Feature and Performance

• With a rational layout and integral protective cover, the machine tool is convenient for maintenance and in conformity with human engineering requirements.
• For the work head, the rotation of spindle and axial vibration are controlled by two variable frequency motors respectively. With the aid of frequency conversion control system, the range of speeds and optimum vibration frequency can be selected according to the material and size of workpiece, thus to meet the requirement of improving surface roughness by means of polishing process.
• The forward and backward movement of tailstock spindle is controlled by hydraulic system.
• The feeding of abrasive belt winding mechanism is adjustable according to workpiece processing requirement, and the rotating direction of workpiece is set as forward and backward in order to improve machining quality. The surface roughness can be improved over one grade after a working cycle.
• The major component of electrical system is provided by Omron and fuji electric.
• The hydraulic system adopts the products of Northman.(Also can apply other brand of products in accordance with the requirement of users).
• Being easy and simple for operation, the machine tool features reliable performance and is suitable for processing multiple kinds of camshafts with different diameters and lengths.

Technical Parameter

Notes: The machine is made according customer's reqiurement on workpiece.

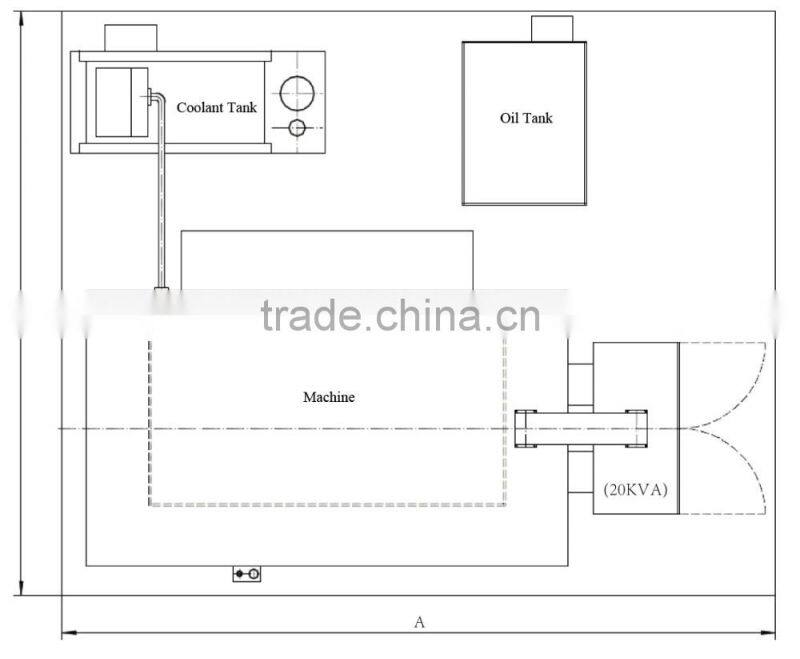

Layout Plan
