CNC Horizontal Worm Whirling Miller
USD $10,000 - $100,000
/ Set
1 Set(Min.Order)
- 700 Set / Sets per Month
- China Port
- T/T Credit Card
You May Like
Product Details
| Condition | New | Brand Name | TIMAC | |
| Model Number | SMK-180 | Type | Horizontal | |
| CNC or Not | CNC | Voltage | 380V 50Hz | |
| Power(W) | 5.5kw(milling head) | Dimension(L*W*H) | 6000x1500x1700mm | |
| Weight | 8000kg | Certification | CE ISO | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

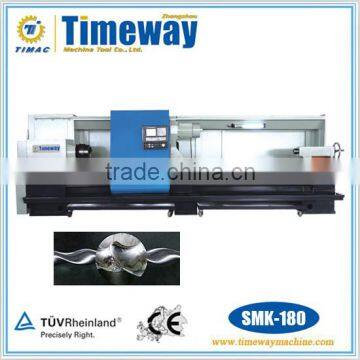

CNC Horizontal Screw/Worm Whirling Miller
SMK-180
Main Outlook
Product Description
Features
- The machine is a high-efficient machining equipment that is designed for solid of revolution and spiral parts, such as all kinds of threads, worm bar, screw, screw of inject machine, screw of screw pump and etc.
- Adopting layout of horizontal lathe, precision-ground high hardness guideway, width 600mm whole bed, KND CNC system three axis linkage, Cyclone milling cutting inside, high milling efficiency(6-20times of turning), spindle transmission chain is short, transmission accuracy is high, roughness is to Ra0.8um, specially suitable for cutting thin and long workpiece by adopting speical clamping device.
Technical Parameter
Specification | Unit | SMK-180 |
Max. diameter of milling cutter blank | mm | Φ180 |
Max. diameter of workpiece | mm | Φ120 |
Min. diameter of workpiece | mm | Φ35 |
Max. length of workpiece | mm | 3100 |
Spindle taper | - | C11 |
C-axis speed range | rpm | 0-20 |
Milling cutter speed range | rpm | 100-1000 |
Tailstock quill diameter | mm | Φ100 |
Tailstock taper | - | MT5 |
Number of tools | - | 6 |
X-axis servo motor torque | N.m | 10 |
Z-axis servo motor torque | N.m | 16 |
C-axis servo motor torque | N.m | 10 |
Milling head motor power | kw | 5.5 |
X/Z-axis min. feed unit | mm | 0.001 |
X/Z-axis positioning accuracy | mm | 0.01 |
CNC system | - | KND 1000Ti |
Cooling type of cutter | - | Nature |
Machine dimension(LxWxH) | mm | 6000x1500x1700 |
Machine weight | kg | 8000 |
