CNC Vertical Milling Machine For Sale Made In China
- China Port
- T/T
You May Like
Product Details
| Condition | New | Brand Name | TIMAC | |
| Model Number | KBM-1354B,KBM-1654,KBM-2063,KBM-2473 | Type | Vertical | |
| CNC or Not | CNC | Voltage | as customer's request | |
| Power(W) | 5.5kw | Dimension(L*W*H) | 2250*2280*2450 | |
| Weight | 2600kg | Certification | CE & ISO9001 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

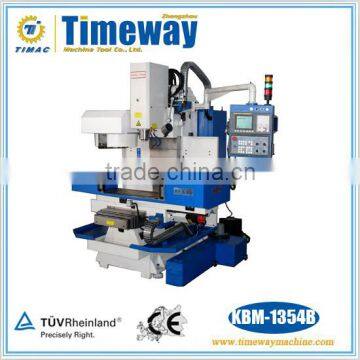

CNC Vertical Milling Machine For Sale
Chinese CNC Milling Machine
Features:
1. The spindle system features strong rigidity, it's suitable for rough machining and force cutting; hence improve machining efficiency, features long travel, heavy loading.
2. The machine can be used for drilling,boring,lathing and milling.
3. The machine is adoppt rectangular guide ways,featrues strong rigidity and high accuracy.
4. Radial tool holder of facing head on the headstock head for radial machining.
5. Optional digital readout device, reading accuracy 0.01mm,positioning accuracy 0.05mm.
Parameter:
Specification | KBM-1354B | KBM-1654 | KBM-2063 | KBM-2473 | |
Table | Table size (LxW/mm) | 1370 x 330 | 1370 x 406 | 1600 x 510 | 1854 x 610 |
Table loading capacity (KG) | 400 | 800 | 1200 | 1500 | |
T-slots (W / mm x No.) | 16 x 3 | 16 x 5 | 18 x 5 | 18 x 5 | |
Travel | X-axis (mm) | 800 | 1000 | 1200 | 1500 |
Y-axis (mm) | 450 | 480 | 700 | 740 | |
Z-axis (mm) | 480 | 600 | 600 | 700 | |
Max.move speed (mm/min) | 8000 | 8000 | 10000 | 10000 | |
Max.feed speed (mm/min) | 3000 | 3000 | 4000 | 4000 | |
Spindle | Spindle speed (r.p.m) | RANGE:40~6000 | |||
Spindle nose | BT40 | BT40 | BT40/ BT50 | BT40 /BT50 | |
Spindle motor (KW) | 5.5 | 7.5 | 7.5 | 7.5 | |
Servo motor (KW) | 1.5 | 1.5 | 2.8 | 2.8 | |
Spindle quill diameter (mm) | Φ120 | Φ150 | Φ150 / Φ155 | Φ150 / Φ155 | |
Spindle to column surface(mm) | 160-640 | 20-620 | 60-800 | 80-780 | |
Ball screws | X-axis (mm) | Φ32 x 5 P4 Double nuts | Φ32 x 5 P4 Double nuts | Φ40 x 10 P4 Double nuts | |
Y-axis (mm) | Φ32 x 5 P4 Double nuts | Φ40 x 5 P4 Double nuts | Φ40 x 10 P4 Double nuts | ||
Z-axis (mm) | Φ32 x 5 P4 Double nuts | Φ40 x 5 P4 Double nuts | Φ40 x 10 P4 Double nuts | ||
3-axis accuracy | Positioning accuracy | 0.025 mm | 0.03 mm | 0.03 mm | 0.04 mm |
Repeatability | 0.012 mm | 0.016 mm | 0.016 mm | 0.02 mm | |
Packing size | Semi-close cover | 2250x2280x2450 | 2500x2280x2650 | 2900x2280x2800 | 2900x2280x2900 |
Full-close cover | 2950x2280x2450 | 3300x2280x2650 | 3600x2800x2800 | 4600x2800x2900 | |
Machine weight (KG) | Semi-close cover | 2600 | 3800 | 5000 | 6000 |
Full-close cover | 3400 | 4720 | 6400 | 7500 | |
Standard Accessories:
Semi-isolated table shield, cutting fluid circulation system, auto.lubricaion system, spindle air flow, working light, level adjusting screw and block, clamping apparatus.
Optional Accessories:
The forth axis revolving table, vertical arm type ATC, full closed safety cover, cutter length measuring unit, edge finder, shank.
