Hot Sale CNC Vertical Bed-type Milling Machine

FOB Price

US$ 10,000 - 100,000 / Set

30 Sets(Min. Order)

Port China Port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	TIMAC
Model Number	BMK7124B	Type	Vertical
CNC or Not	CNC	Voltage	380V 50Hz
Power(W)	5.7/7.2KW	Dimension(LWH)	164012051950mm

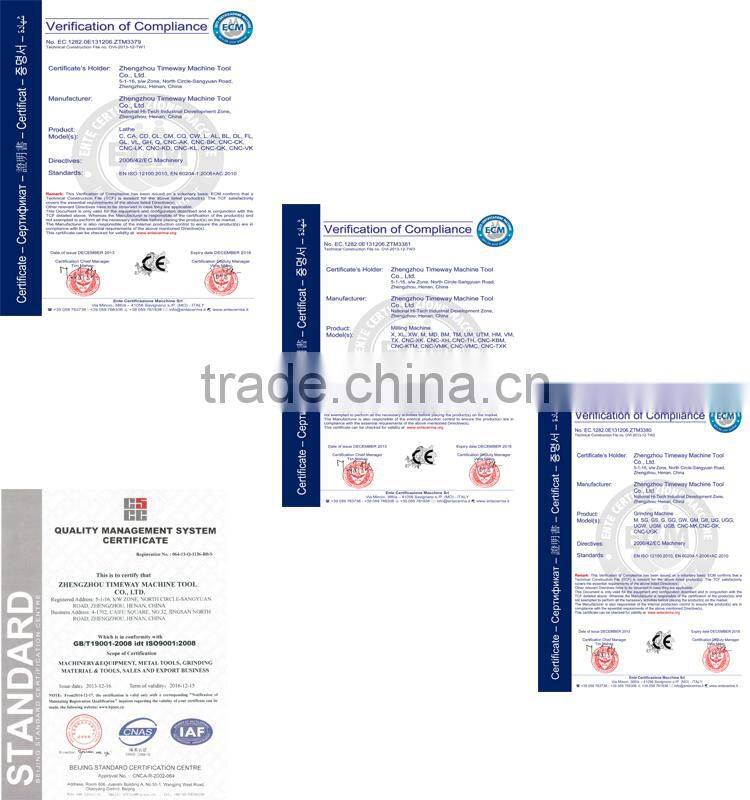

Weight	1000kg	Certification	CE ISO9001
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

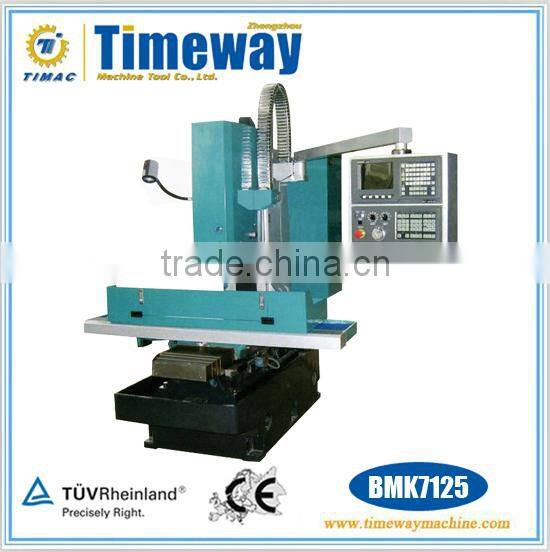

CNC Vertical Bed-type Milling Machine

BMK7124 BMK7124A BMK7124B BMK7125 BMK7130

Main Outlook

Main Performances

Performance and Feature
1. 4 pcs tool stations on worktable with high efficiency. It can finish all process of surface machining hole machining and tapping by clamping workpiece.
2. High and low step speeds available and stronger torque for low step speed.
3. 3 axis transmission by precision ball leadscrew, servo motor driven.
4. Two styles of tool change available, manually and pneumatically.
5. Various famous CNC controllers supplied with for more choice.
6. Machine stand and machine body are designed separately for easy and flexible installment by user.

Standard Accessories
Coolant system
Working lamp
Manual lubricating system
SIEMENS controller system
Auto lubricating system

Optional Accessories
GSK, FANUC
Tool raleased and clamped pneumatically
Heightened column(Z travel:50-550mm)
900*240mm worktable
160mm parallel vise
Tool holder
Machine stand made of iron casting

Specifications List

Technical Parameters

Specifications	Units	BMK7124/BMK7124A	BMK7124B	BMK7125	BMK7130
Size of worktable(L*W)	mm	800*240	800*240	1000*250	1372*330
T-slot(widthqtyspaces)	mm	16360	16360	16363	16358
Max. loading weight on worktable	kg	60	60	120	600
X/Y/Z axis travel	mm	430280400	430280400	535320375	820420480
Distance between spindle nose and table	mm	60-460	50-450/550	50-425	60-540/40-520
Distance between spindle center and column	mm	297	297	345	486
Spindle speed	rpm	100-4000	100-6000	100-4000(6000/8000)	100-4000(6000/8000)
Spindle taper		BT30	BT30	BT30	BT30/BT40
Tool clamping way		Manual/pneumatic	Pneumatic	Manual	Pneumatic
ATC capacity		no	4 pcs simple ATC	Optional	10
Feeding speed	mm/min	0-2000	0-2000	0-2000	0-2000
Rapid feeding speed: X/Y/Z axis	m/min	6	6	12	12
Positioning accuracy	mm	0.04	0.04	±0.008	±0.008
Repeat positioning accuracy	mm	0.02	0.02	±0.005	±0.005
Min. set unit	mm	0.01	0.01	0.01	0.01
Main motor power	kw	1.5	2.2/3.7	1.5/2.2	2.2/3.7
Feeding motor power	kw	1/1/1	1/1/1.5	1/1/1.5	1/1/1.5
Max. size of tool	mm	Φ60*175	Φ60*175	Φ60*175	Φ60250/Φ80250
Max. loading weight of tool	kg	3.5	3.5	3.5	3.5/7
N.W	kg	900	1000	1700	2400
Overall size(LWH)	mm	164012051950(2050)	164012051950(2050)	151617641708	198017802270
Packing size(LWH)	mm	190016202480(2580)	190016202480(2580)	225019102280	228020302480
