Double Milling Head CNC Straight and Helical Teeth Hobbing Machine

FOB Price

US$ 50,000 - 150,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	TIMAC
Model Number	HMK6016/2	Type	Horizontal
CNC or Not	CNC	Voltage	380V 50Hz
Power(W)	As actual situation	Dimension(LWH)	516025181794mm
Weight	12500kg	Certification	CE ISO
Warranty	One Year	After-sales Service Provided	Engineers available to service machinery overseas

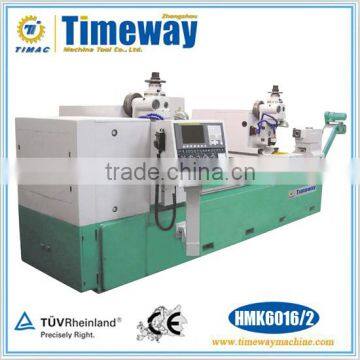

Double Milling Head CNC Straight and Helical Teeth Hobbing Machine

HMK6016/2

Main Outlook

Product Description

Function

It can simultaneously hob involute dplines on both ends of middle or rear axels of heavy-duty cars with two milling heads.

Technical Parameter

Specifications	HMK6016/2
Max.diameter to be machined	160mm
Max.length to be machined	2300mm
No.of teeth to be machined	24~30
Max.diameter of milling cutter to be mounted	130mm
Max.length of milling cutter to be mounted	115mm
Max.shifting of hob	40mm
Overall dimensions (LxWxH)	5160x2518x1794mm
Weight of the machine	12500kg
Workpiece to be machined	Straight flute

Detailed Images

HMK6030

CNC Horziontal Double Hobbing Head Spline Shaft Milling Machine (Special Need)

HMK6016/2

Zhengzhou Timeway Machine Tool Co., Ltd.: Contact nameDavid Cheung
Chat Now; Phone86-371-60308992; Address4-1702, 32# NORTH JINGSAN ROAD, ZHENGZHOU, HENAN,CHINA, Zhengzhou, Henan
