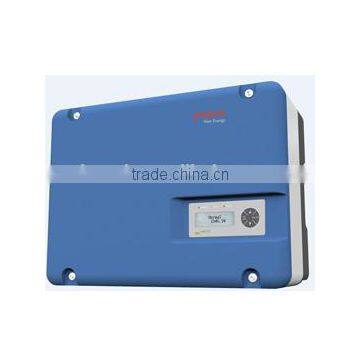

DC to AC Power Inverter 4000W Solar Pump Inverter; IP65 Protection; MPPT

1. Simple Introduction Of JNTECH Solar Pumping System for Irrigation and Home Water Supply:

Solar pumping system consists of four parts: solar panels, solar pumping inverter, three phase AC pump and water storage device. The solar pumping inverter converts DC power produced by solar panels to AC powerwhich drives AC pump to pump water from borehole, river,lake etc.

 2. Solar pump system Application

3. System features:

The advantage of JNTECH Solar Pumping System as following:

• Maximum Power Point Tracking (MPPT) for Optimum Solar Performance.
•  Automatic start and shut off according to solar intensity.
•  Soft start controlling in rush current, to avoid motor burning.
• IP65 design for outdoor application.
• System MPPT range for 220V-240 is 150-400V, 380-460V is 460-850V.
• No need derate the power capacity for pump matching. The matching power with pump is 1:1.
• 3 years warranty for solar pump inverter.
• Complete system protection function and long lifespan.
•  Visual LCD based indications, DC switch inside, float switch for dry or overflow protection.
• Support Utility grid or generator work as pass by or complementary, working time 24hours per day.

4. Project Information

Case one:

Solution System: 4kw  Solar Submersible Pump System; JN5.5HP

Solar Pumping Inverter: JNP4KH (4KW power capacity)

Application: Agriculture irrigation / Daily Water supply

location: Laayoune,Moroco

Total dynamic head (TDH): 40 m
Flow Rate:   20 m3/day
Cable length: 45 m / Pipe length: 700 m
Solar Generator: 20x 240 Wp, poly-crystalline
Installation: July,2014
Installed by: Societe Ultrasol

5, Solar panels

Polycrystalline 250W (Vmp=30.3V,Isc=8.71A) solar panels are used in system configuration

 We also have other specifications of solar panels, we couold supply them according to the system and the customer's requests.

6, Solar pumping inverter

• Power capacity: 4kw                                 • Highly efficient 3-phase AC motor         • Frequency 50Hz (60Hz optional) • stainless steel: AISI304                                Power factor: 0.87                                     Motor AC Drive SUB3" 4" 6"
• No electronics in the motor                         • Efficiency max. 92%                                  • Motor speed: 1,150~2,850 rpm
• Output voltage range:380~460Vac             • Insulation class: F                                    • Protection degree: IP68

9.   More function module:

AC PowerPACK, support the system working 24 hours per day!

Which work as power supplement or pass-by, allows the pump to be powered by an AC generator or commercial utility power, besides of solar energy.

The solar array remains connected. If the sun comes out again, less power is drawn from the AC source.

A common application is for diesel generator or unstable regions of utility grid. When the sun irradiation is insufficient, just switch on the AC power source, which will work as supplement; And even at night, AC power source can work as pass by.

The PowerPack will power the pump to its full capacity.

10.Extra service:

Design software to make the system configuration automatically.

• Monitoring system can realize remote control for inverters.
•
