Jntech 5.5kW Solar Water Pumping System Solar Power System for Irrigation in Boteti

Jntech 5.5kW Solar Water Pumping System Solar Power System for Irrigation in Boteti

1. Simple Introduction of 5.5kW Solar Water Pumping System:

This 5.5kW system consists of 4 parts: solar PV modules, PV pump inverter, three phase AC pump and water storage device. The pump inverter converts DC power produced by PV module to AC power required by the pump.

2. SYSTEM WORKING STATE:

STANDBY- - -START- - -LIGHT LOAD- - -FULL LOAD- - -LIGHT LOAD- - -STOP- - -STANDBY- - - POWER OFF

3. WATER YIELD CONDTION:

WATER OUTLET- - -SMALL WATER- - -RATED FLOW- - -SMALL WATER- - -NO FLOW

4. System features:
1. Energy conservation,environmental protection and low carbon;

2. Wide application with all kinds of three-phase AC pumps;

3. Low system maintenance cost compared with traditional AC pump system;

4. Automatic/manual operation mode;

5. Built-in data module, can check system fault and historical operation information;

6. Different remote communication function which can monitor and control operation state remotely;

7. IP 65 for outdoors application for different applicationenvironment under low installation cost;

8. Max. operation temperature 60 degrees centigrade;

9. Complete system protection function and long lifespan;

10. Matching all kinds of solar panels with high configuration redundancy;

11. Providing different solution,such us anti-theft,GPRS and utility power as  input option etc

5.System application:

6. Solar Panels:

Polycrystalline 250W (Vmp=30.6V,Isc=8A) solar panels are used in system configuration.

7.Solar Mounting Structure:

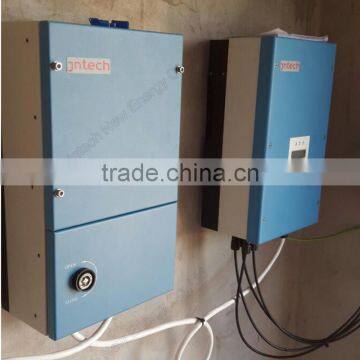

8. Solar Pumping Inverter:

9.AC pump:

We choose pump according to project head and water requirement.
