30HP(22kw) Solar Water Pump for Farming in Pakistan, PV & Grid Utility Hybrid Solar Water Pumping System
USD $16,898 - $16,899
/ Set
1 Set(Min. Order)
- Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
-
5.5HP(4kw) AC Solar Water Pump System, PV & Grid Utility Hybrid Solar Water Pumping System
-
1.1KW 3 Phase 60Hz Solar Water Pumping System for farming
-
AC solar water pumping system, solar water pump inverter with wide MPPT
-
15HP Solar Water Pumping System, DC/AC solar pump inverter with IP65
-
JNTECH 7.5KW Solar Water Pumping System in Pakistan, solar pump inverter with IP65
-
High efficiency solar water pumping system for irrigation
Product Details
| Place of Origin | Anhui, China | Brand Name | JNTECH | |
| Model Number | JNP22KH-SJ | Specification | Normal | |
| Application | Industrial | Output Voltage (V) | 3phase 380v | |
| Load Power (W) | 22kw | Solar Power (W) | 27kw | |
| Work Time (h) | 24h |
Product Description
1. Simple Introduction Of JNTECH 30HP(22kw) Solar Water Pumping System
JNTECH Solar Pumping Inverter converts DC power produced by PV module into AC power required by the pump motor. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.
Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.
The power drawn from AC source is adjustable according to the intensity of solar energy.
2. Product features:
1. Grid utility work as supplement when sun radiation is unavailable, support system working 24 h/day;
2. Full automatic unattended operation;
3. Soft start controlling in rush current, to avoid motor burning;
4. Max. Power Point Tracking (MPPT) control algorithm of Solar Pump Inverter for optimum solar performance.
5. IP65 design for machine, don't need extra box.
6. 3 years warranty for solar pump inverter.
7. Complete system protection function and long lifespan.
8. Remote monitoring and communication function, can control its start and stop remotely.
9. ROI is only less than 2 years compared to diesel generator.
10. Wide application with all kinds of PV modules and traditional AC pump.
3. 22kw solar pump inverter parameters
| Max. Input DC voltage | 880Vdc |
| Recommended MPPT voltage | 460-850Vdc |
| Max. Input DC current | 49A |
| Max. MPTT efficiency | 99% |
| Number of Strings | 1 |
| Max. applicable motor output power | 22KW |
| Rated output voltage | 380-460Vac 3 phase |
| Output frequency range | 0-50/60Hz |
| Rated output current | 42A |
| Dimension(W/H/D) | 390*532*210mm |
| weight | 34kgs |
| Max. efficiency | 98% |
| Protective class | I |
| Protection degree | IP65 |
| Environment temperature | -25ºC-+60ºC above 60ºC need derate operation |
| Cooling method | force cooling |
| Display | LCD |
| Communication interface | GPRS |
| Altitude | 3000m; above 3000m need derate operating |
| Noise emission | <50dB |
| compliance | EN 50178; IEC/EN 62109-1; IEC61800 |

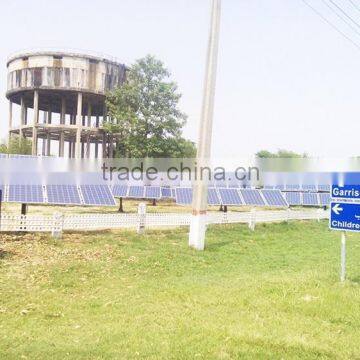

4, ON-Site Projects' Pictures
