Home > Products > Plate Compactor > WH-C80T Manual Small Compactor
WH-C80T Manual Small Compactor
- SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Application | Widely used in construction size,civil work and etc | |
| Power Type | Gasoline | Brand Name | W&H | |
| Model Number | C80T | Place of Origin | Jiangsu, China | |
| Power(W) | 5.5/5/4 | Dimension(L*W*H) | 80*51*68(cm) | |
| Weight | 84kg | Certification | CE.SGS.BV.ISO | |
| Warranty | one year |
Product Description
Specifications
manual small compactor WH-80T1.with CE,SGS,BV,ISO .
2.Air-cooled,single cylinder,4-stroke.
3.Engine:honda,robin,diesel
manual small compactor WH-C80T
manual small compactor Features:
1. Foldable handle for easy transportation and stock.
2. Open plate provides self-cleaning.
3. Built-in wheel for easy transportation.
4. Radius base plate for easy access to corner.
5. Sealed belt cover to prevent sand and soil in.
6. Heavy-duty shock mounts reduce vibration to the upper engine handle.
7. Protective frame is available as optional.
manual small compactor Specification:
Model | WH-C80TH | WH-C80TR |
Engine type | air-cooled, single cylinder,4-stroke | |
Engine | Honda GX160 | RobinEY20 |
Power(HP) | 5.5 | 5 |
Size of base plate(L*W)(cm) | 51*48 | |
Compaction depth(soil)(cm) | 30 | |
Centrifugal force(KN) | 15 | |
Operating weight(kg) | 80 | |
Shipping weight(kg) | 84 | |
Shipping size(L*W*H)(cm) | 80*51*68 | |
F A Q
♥ Q: What is your MOQ of this item?
A: 1 sets
♥ Q: Is it all right to make customer’s own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
♥ Q: What are your payment terms?
A: T/T 30% deposit,70% balance against the B/L copy or L/C at sight.
♥ Q: How long is your warranty?
A: Guarantee for one year from ex-factory date.
♥ Q:What is the delievery time?
A: 15-30 days after receiving your deposit.

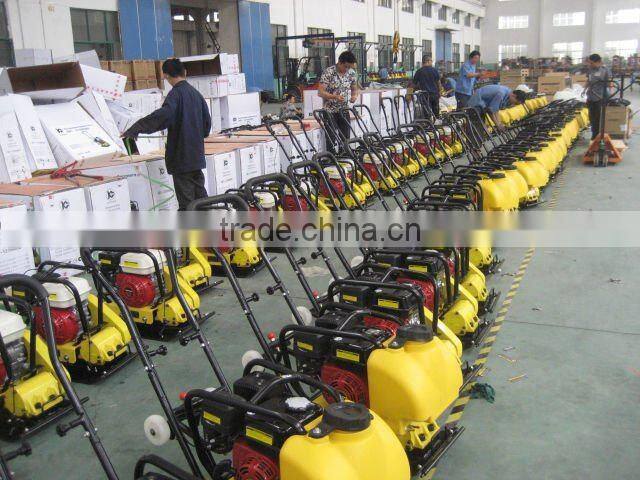

COMPANY AND PRODUCTION LINE
PACKING AND SHIPPING
EXHIBITION SHOW
manual small compactor Certificates:
Contact Us
- Wuxi W&H Construction Machinery Manufacturing Co., Ltd.
- Contact nameVivian Yin Chat Now
- Phone86-0510-83952990
- Addressyangshan, Wuxi, Jiangsu
