WH-C330H Reverse Plate Compactor

FOB Price

US$ 1 - 10,000 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Widely used in construction size,civil work and etc
Power Type	Gasoline	Brand Name	W&H
Model Number	C330H	Place of Origin	Jiangsu, China
Power(W)	13.0	Dimension(LWH)	10060115cm
Weight	251kg	Certification	CE,SGS,BV
Warranty	one year

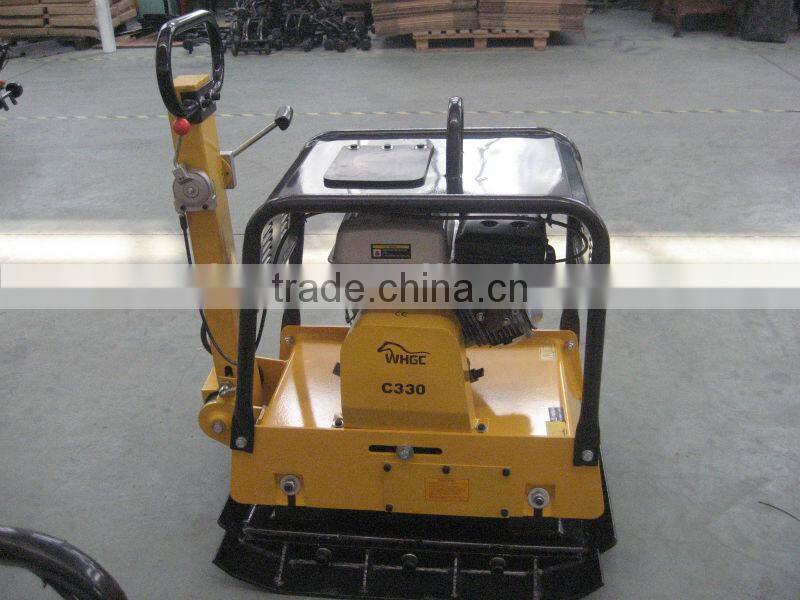

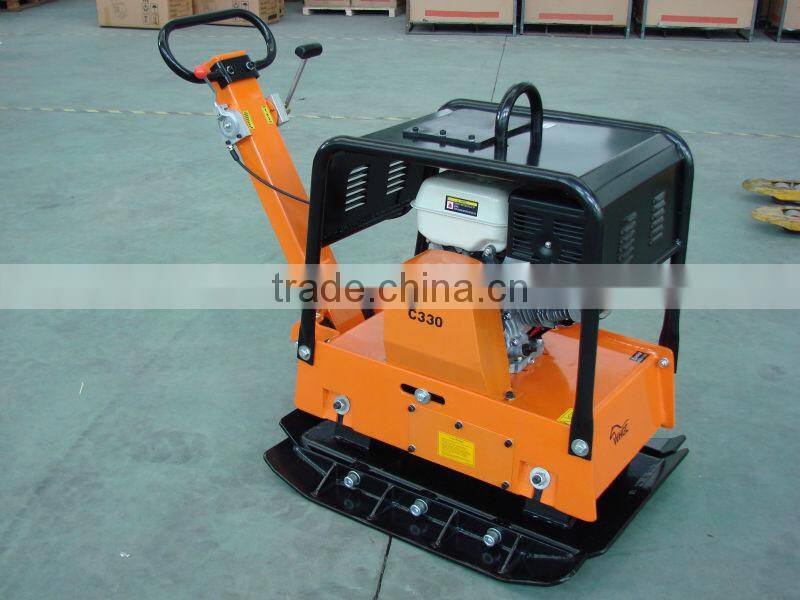

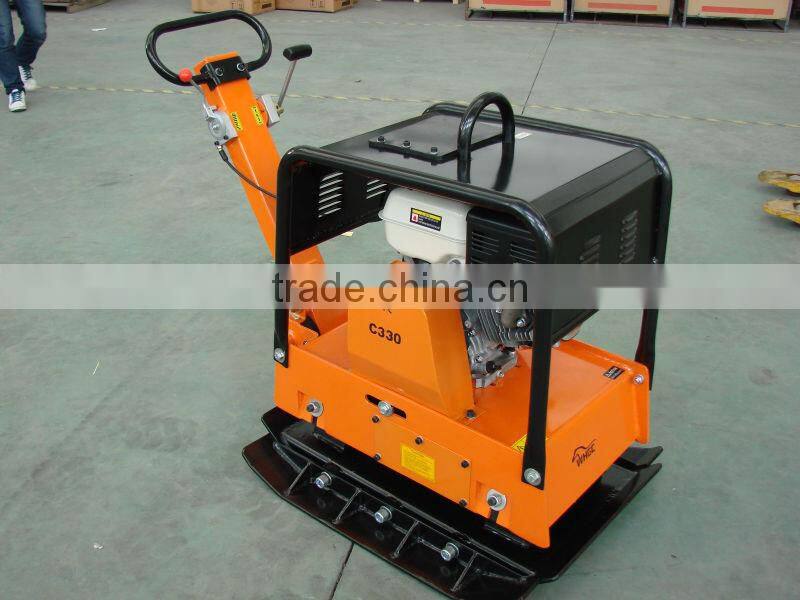

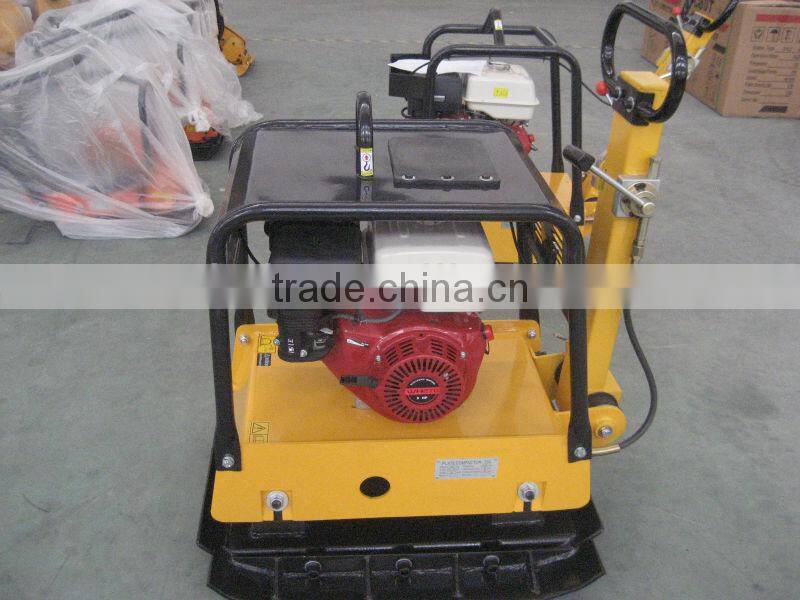

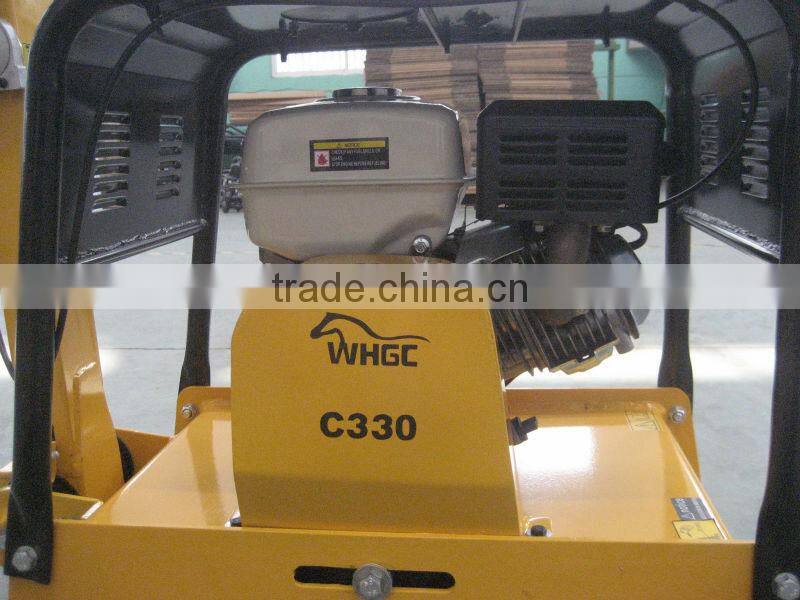

WH-C330H Reverse Plate Compactor
1.with CE,SGS,BV
2.Compaction depth:80cm
3.Engine:Honda,Diesel.

Reverse Plate Compactor WH-160H

Reverse Plate Compactor Features:

Humanization design handle with good anti-shocking ability and reduce operator fatigue.
It has fast leveling speed that can get firm compacting effect.
It is applied in dykes and dams,road base and other municipal enqineering builiding and maintenance.
Large shock mountes reduce vibration to the handle.
Heavy-duty shock mounts reduce vibration to the upper deck.
Wear-resistant base plates extend life,open design reduces dirt building.
Centrally-located lifting bar allows easy transportation in and out of trenches.
Semi-covered protection cage protects the plate from accidental job-site damage.

Reverse Plate Compactor Specification:

Model	WH-C330H	WH-C330HC	WH-C330D
Engine type	air-cooled, single cylinder,4-stroke
Engine	HondaGX390	Honda copy WH188F	Diesel,WH86F(E)
Power(HP)	13.0	13.0	9.0
Weight kg	251	251	251
*Size of base plate(LW)(cm)**	83.5*67
Max. centrifugal force(KN)	38
Compaction depth (cm)	80
Vibration frequency(V·P·M)	3750

Reverse Plate Compactor Certificates:
