WH-C80 Compaction Plates Machine
- SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Application | Widely used in construction size,civil work and etc | |
| Power Type | Gasoline | Brand Name | W&H | |
| Model Number | C80 | Place of Origin | Jiangsu, China | |
| Power(W) | 5.5 | Dimension(L*W*H) | 80*44.5*69(cm) | |
| Weight | 71kg | Certification | CE.SGS.BV.ISO | |
| Warranty | one year |
Product Description
Specifications
Compaction Plates Machine1.With CE,SGS,BV,ISO
2.Engine: Honda GX160
3.Opearting weight:71kg

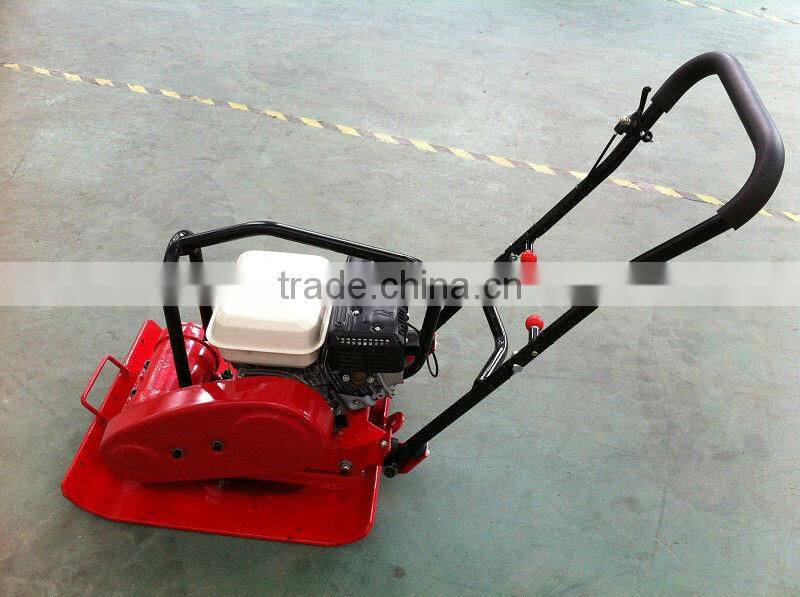

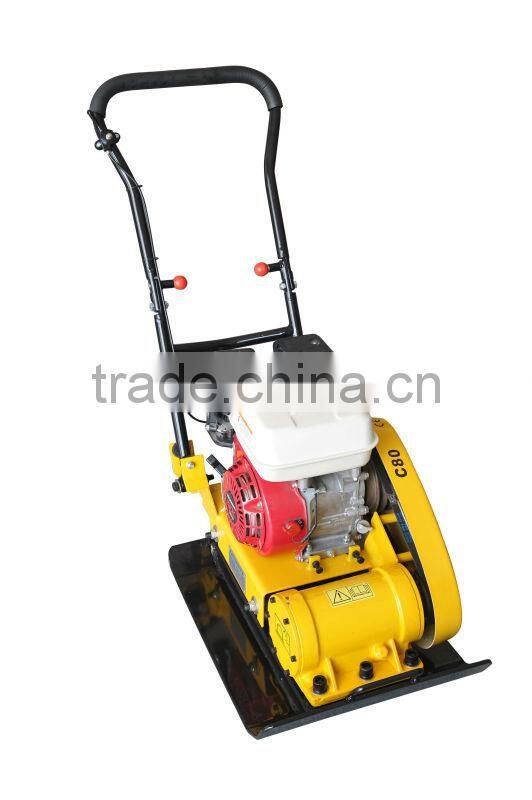

Compaction Plates Machine WH-C80
Compaction Plates Machine Features:
1. Foldable handle for easy transportation and stock.
2. Open plate provides self-cleaning.
3. Built-in wheel for easy transportation.
4. Radius base plate for easy access to corner.
5. Sealed belt cover to prevent sand and soil in.
6. Heavy-duty shock mounts reduce vibration to the upper engine handle.
7. Protective frame is available as optional.
Compaction Plates Machine Specification:
Model | WH-C80H | WH-C80R |
Engine type | air-cooled, single cylinder,4-stroke | |
Engine | Honda GX160 | RobinEY20 |
Power(HP) | 5.5 | 5 |
Size of base plate(L*W)(cm) | 59*42 | |
Compaction depth(soil)(cm) | 30 | |
Centrifugal force(KN) | 15 | |
Operating weight(kg) | 71 | |
Shipping weight(kg) | 75 | |
Shipping size(L*W*H)(cm) | 80*44.5*69 | |
Compaction Plates Machine Certificates:
