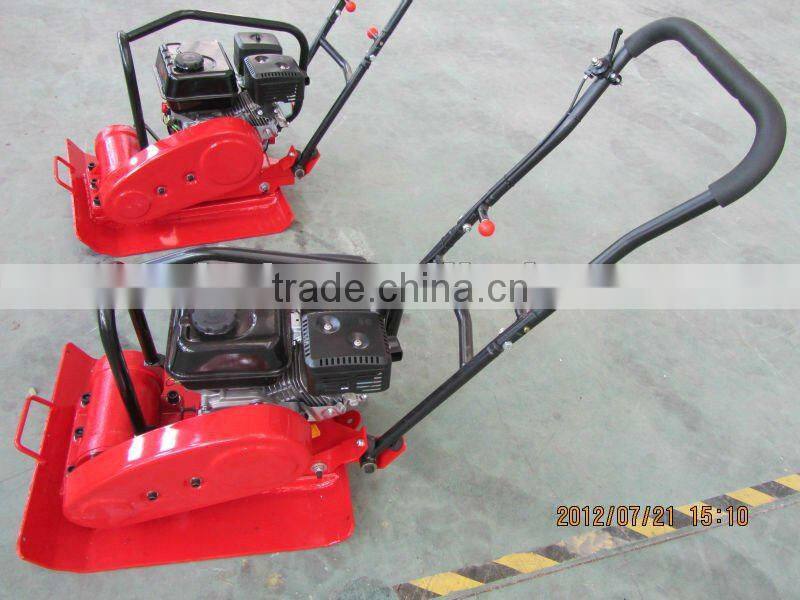

WH-C100 Vibratory Plate Tamper
- SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Application | Widely used in construction size,civil work and etc | |
| Power Type | Gasoline | Brand Name | W&H | |
| Model Number | C100 | Place of Origin | Jiangsu, China | |
| Power(W) | 5.5 | Dimension(L*W*H) | 70*48.5*80cm | |
| Weight | 95kg | Certification | CE,SGS,BV,ISO | |
| Warranty | one year |
Product Description
Specifications
WH-C100 vibratory plate tamper1.with CE,SGS,BV,ISO
2.Compaction depth:30cm
3.Engine:Honda,Robin,Diesel.
vibratory plate tamper WH-100
vibratory plate tamper Features:
1. Vibration isolated reversible handle for easy operation and reduced operator fatigue.
2. Open design reduces dirt building.
3. Centrally mounted fully enclosed exciter for an even spread of compactive force over the whole base plate.
4. Heavy-duty shock mounts reduce vibration to the upper engine & handle.
5.It is easy for transportation.
6.High efficiency,stronger compacting force,good forward capability and easy to climb the slope.
vibratory plate tamper Specification:
Model | WH-C100H | WHC100HC | WH-C100R | WH-C100D | |
Engine type | air-cooled, single cylinder,4-stroke | ||||
Engine | HondaGX160 | Honda copy WH168F | Robin EY20 | Diesel,WH170F | |
Power(HP) | 5.5 | 5.5 | 5.0 | 4 | |
Weight kg | 88 | 88 | 88 | 91 | |
Size of base plate(L*W)(cm) | 58.5*46 | ||||
Max. centrifugal force(KN) | 15 | ||||
Compaction depth (cm) | 30 | ||||
Vibration frequency(V·P·M) | 4500 | ||||
F A Q
♥ Q: What is your MOQ of this item?
A: 1 sets
♥ Q: Is it all right to make customer’s own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
♥ Q: What are your payment terms?
A: T/T 30% deposit,70% balance against the B/L copy or L/C at sight.
♥ Q: How long is your warranty?
A: Guarantee for one year from ex-factory date.
♥ Q:What is the delievery time?
A: 15-30 days after receiving your deposit.
COMPANY AND PRODUCTION LINE
PACKING AND SHIPPING
EXHIBITION SHOW
vibratory plate tamper Certificates:
