Home > Products > concrete mixer > Reliable performance JS1500 twin shaft concrete Mixer

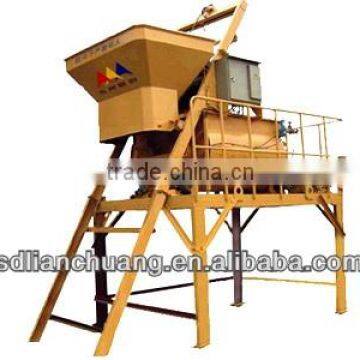

Reliable performance JS1500 twin shaft concrete Mixer
- Qingdao Shanghai
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | LIANCHUANG | Model Number | JS500,JS750,JS1000,JS1500,JS2000 | |
| Motor Power | 2*30kw | Charging Capacity | 2400 | |
| Reclaiming capacity | 1500 | Speed of Mixing Drum | 27rpm | |
| Water Supply Mode | water pump | Working Cycle Period | 60s-72s | |
| Discharge Way | pneumatic | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1) compact design with twin shaft design2) gear type reducer with reliable performance
3)Pneumatic discharge
As a double-horizontal-shaft forced type concrete mixer, the JS series concrete mixer has been provided with double superiorities, that is single-independent work and combinatorial function with PL series burden machine, also provide the matching engine for mixing plant, and so it applies to all kinds of large, middle and small scale prefabricated-component factory as well as industry and Civil Construction like highway railway bridge irrigation works dock and so on. With a high efficiency, this machine can be applied to all kinds of material, such as harsh concrete plastic concrete lightweight aggregate concrete and others.
With reasonable structure, novelty layout and easy operation and maintenance, we can make design according to special requirements for meeting the demand of customers.
Product characteristics:
With the features like advanced design reasonable structure reliable performance high quality short time lower energy consumption, this machine adopts high hardness and tenacity wear-resistant alloy cast iron for the scale board and mixing blade, and so the whole machine has a long useful life.
Model | JS500 | JS750 | JS1000 | JS1500 | |
Charging Capacity (L) | 500 | 750 | 1000 | 2400 | |
Discharging Capacity (L) | 800 | 1200 | 1600 | 1500 | |
Production Capacity(m3/h) | 25-30 | 35-45 | 50-60 | 75-90 | |
Max Aggregate Diameter | ≤40/50 | ≤40/60 | ≤60/80 | ≤60/80 | |
Cycle Time (s) | 72 | 72 | 60-72 | 60-72 | |
Mixing tank | Rotary Speed (r/min) | 36 | 33 | 27 | 27 |
| Number of Blade | 2*7 | 2*8 | 2*8 | 2*8 |
Mixing Motor | 18.5 | 30 | 2*18.5 | 2*30 | |
Lifting motor | 5.5 | 7.5 | 15 | 18.5 | |
Water pump motor | 1.1 | 1.1 | 3 | 5 | |
Dimensions ( mm) | Transport dimension | 3050*2530*2680 | 3100*2620*2580 | 4320*2200*3300 | 4320*2200*3300 |
| Operation dimension | 4461*3050*4180 | 5025*3100*5680 | 10460*3400*9050 | 11700*3800*9010 |
Total weight (Kg) | 4000 | 6500 | 7500 | 12000 | |
