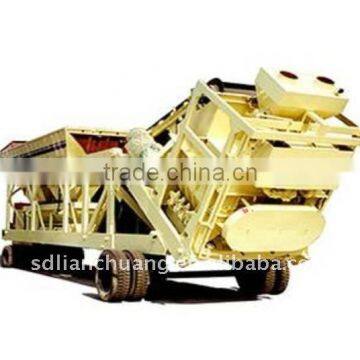

Mobile and portable concrete batching plant for different project site

YHZS Series of Mobile Concrete Mixing Plant, Concrete Batching Plant

Excellent Mixing Performance.

1. Horizontal twin-shaft compulsory mixer has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniform...

2. The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts.

3. Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines durability and reliability.

4. The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity.

5. Decelerating system uses high-speed, synchronized, and closed planetary decelerators

6. The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.

Control System

1. The control system of double computers with double controls consists of two industrial computers, one is production control computer and the other is production management computer. The control system has the following functions.

A. Automatic and manual control, easy operation;

B. Dynamic display of the production process, and monitoring in real time;

C. Saving of the data of production perimeters in the computer, printing of the daily, monthly, and yearly statistic reports of production;

D. Weighing accuracy: automatic re-feeding if there is shortage of weight, warning if there is overweight;

E. The operators, with the assistance of safety monitoring system, will know and monitor the running situations of the mixing plant in the control room;

2. The management computer is a backup computer for the whole electric control system. When the control computer is out of order, the management computer can be changed into the control computer to control production

3. Long-distance trouble shooting by internet and teleservice, which greatly improves the users ability to trouble shoot the system.

4. The control room, which is made of colorful shaped steel plates, is capacious, anti-noise and heat insulated. It guarantees the working temperature of the electrical components, also improves the working comfortability.
