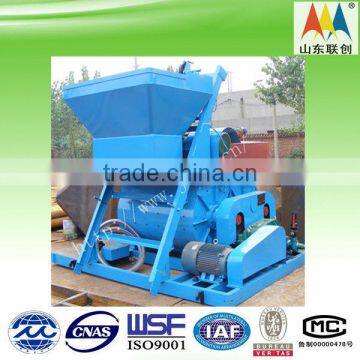

Double-shaft compulsorily mixer, JS1000 Concrete Mixer
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Power Type | Other, pneumatic | |
| Place of Origin | Shandong, China | Brand Name | Lianchuang | |
| Model Number | JS1000 concrete mixer | Power(W) | 37kw | |
| Dimension(L*W*H) | 9500*3800*8605 | Weight | 11000KG | |
| Certification | ISO9001:2000; ISO14001 | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
JS1000 Concrete MixerISO9001:2000; ISO14001
Double shaft compusory mixer
New-style concrete mixer
High quality with compet
JS1000 concrete mixer
1.High efficiency
2.Competitive price
3.Advanced technology
4.ISO9001& 2000 certified
JS1000 concrete mixer is dual horizontal shaft concrete mixer, which can can work independently, also can be
composed the concrete batching plant with PL800 and other matched equipment., and it can be applicable to
large, medium and small precast concrete products factory and roads, railways, bridges, water conservancy,
civil construction project, and it can mix dry and hard concrete, plastic concrete, light aggregate concrete and all
kind of mortar, it is one kind of high efficiency, widely used construction machinery. It owns reasonable design ,
and its mechanical accessories used industry standard parts, and its maintenance is much convenient.
JS1000 concrete mixer main configuration list
NO. | Name | Project | Production origin | QTY |
1 | Mixer system | Double-shaft mixer | Lianchuang | 1 |
Stirred tank | Lianchuang | 1 | ||
Main motor |
| 1/2 | ||
Reducer |
| 1/2 | ||
2 | Main frame | Ladder | Lianchuang | 1 |
Outrigger | Lianchuang | 2 | ||
Platform | Lianchuang | 2 | ||
Mixing platform | Lianchuang | 1 | ||
3 | Hopper upgrade system | Upgrade hopper | Lianchuang | 1 |
Hoist motor | Qidongsanshang | 1 | ||
Hoist reducer | Jiangsu/Shandong | 1 | ||
Wire rope | Purchased |
| ||
Feeding orbit | Lianchuang | 1 |
JS1000 concrete mixer main technical parameter
Model | JS1000 | |
Charging Capacity (L) | 1600 | |
Reclaiming capacity (L) | 1000 | |
Rated production rate m3 | 50-60 | |
Aggregate Maximum grain diameter | Scree (mm) | 80 |
Gravel(mm) | 60 | |
Stirring vane | Rev(r/min) | 33 |
QTY | 2×8 | |
Main motor power KW | 30 | |
Discharging height (m) | 3.8 | |
Discharging type | Pneumatic | |
Total weight(Kg) | 11000 | |
Overall dimensions (LXWXH) mm | 9500×3800×8605 | |
