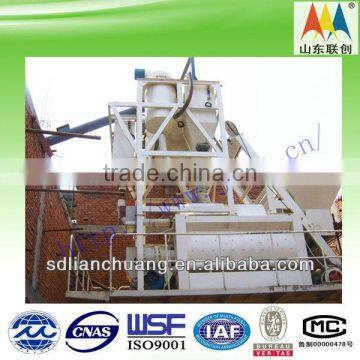

JS 750 concrete mixer station

FOB Price

USD $1 - $50,000 / Set

1 Set(Min.Order)

Port QingDao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	LianChuang	Model Number	JS750
Motor Power	30kw	Mixing Power	30kw
Charging Capacity	800	Reclaiming capacity	500
Speed of Mixing Drum	30.5r/min	Water Supply Mode	Water pump
Working Cycle Period	60s	Discharge Way	Manual/pneumatic/electromotion
Outline Dimension	495036366260mm	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.ISO9001:2000 certified
2.Capacity:25m3/h
3.Electrical Power:18.5kw
4.Rotating Speed:35r/min

JS 750

JS series of the concrete mixer is twin-shaft forced type one, can mix dry hard, plastic, liquid, such as lightweight aggregate concrete and a variety of mortar. Drum set with high manganese cast steel liner and mixing blade, durable, and easy to replace. This machine is designed reasonable, compact, easy to operate, reliable, good quality with stirring, high efficiency, low energy consumption, noise and so on.

1. The machine owns the advantages of independent operation under one machine and forms a simple concrete mixing station with PLD serial batching machines.

2. It may provides matching principal machines to mixing stations, applicable for large, medium, and small-size prefabrication components plants and industrial and civil construction engineering including roads, bridges, water conservancy and docks.

Technical Parameters

Item	Parameter
Charge Volume	1200L
Discharge Volume	750L
Productivity	≥35m³ /h
Max Size of Aggregate	80/60(Pebble/Macadam) mm
Mixing Blade	Rev	30.5r/min
Mixing Blade	Qty	2x7
Mixing Electromotor	Type	Y200L-4
Mixing Electromotor	Power	30kW
Windlass Electromotor	Type	YEZ132M-4-B5
Windlass Electromotor	Power	7.5kW
Water Pump Electromotor	Type	65DWB-35-5
Water Pump Electromotor	Power	1.1kW
Discharge Height	1500mm,3000mm,3800mm (It can be designed as requirement)
Outline Dimension ( LxWxH)	Operating state	3100x3500x5620mm
Weight	6100kg(Stand 1.5m

others

Model	JS2000	JS1500	JS1000	JS750	JS500
Output capacity	2000L	15000L	1000L	750L	500L
Feeding Capacity	3200l	2400L	1600L	1200L	800L
Mixing time	35-45S	35-45S	35-45S	35-45S	35-45S
Production Capacity	>=100m3/h	>=75m3/h	>=50m3/h	>=37-45m3/h	>=20-30m3/h
Rated motor power	37×2KW	30×2KW	18.5KW×2	30KW	18.5KW
Max particle size of aggregate	60/80mm	60/80mm	60/80mm	60/80mm	60/80mm
Power of hoist motor	22KW	18.5KW	13KW	7.5KW	5.5KW
Power of water pump	4KW	4KW	3KW	1.1-1.5KW	0.75-1.1KW
Total weight	15000KG	11130KG	9500KG	5500KG	3500KG
