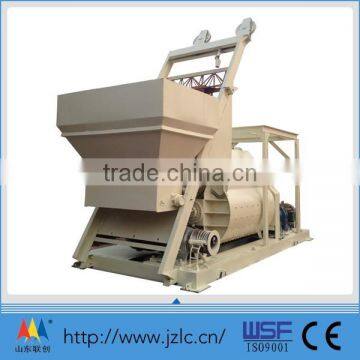

JS500 Concrete Mixers With Lifting System

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	Lianchuang	Model Number	JS500
Motor Power	24.75KW	Mixing Power	18.5KW
Charging Capacity	800L	Reclaiming capacity	500L
Speed of Mixing Drum	36r/min	Water Supply Mode	water pump
Working Cycle Period	35-45S	Discharge Way	automatic
Outline Dimension	448030035634mm	After-sales Service Provided	Engineers available to service machinery overseas

JS500 Concrete Mixers

Model		JS500	JS750	JS1000	JS1500	JS2000
Charging Capacity (L)		800	1200	1600	2400	3200
Reclaiming capacity (L)		500	750	1000	1500	2000
Rated production rate m3		25-30M	37-45	50-60	75-90	100-120
Aggregate Maximum grain diameter	Scree (mm)	80	80	80	80	80
Aggregate Maximum grain diameter	Gravel(mm)	60	60	60	60	60
Stirring vane	Rev(r/min)	36	33	27	27	24
Stirring vane	Qty	2×7	2×8	2×8	2×8	2×8
Main motor power KW		18.5	30	37	60	74
Discharging height (m)		1.6/3.8	1.6/2.2/3.0/3.8	3.8	3.8	3.8
Discharging type		Manual/ pneumatic/ electromotion	Pneumatic/electromotion	Pneumatic	Pneumatic	Hydraulic pressure
Total weight(Kg)		4100	5500	11000	12000	15000
Overall dimensions (LXWXH) mm		4448×3003×4606	4950×3636×6260	9500×3800×8605	11700×3800×9010	10560×3876×10710

Concrete Mixers With lift and bracket:

Concrete Mixer Without lift:

Concrete Mixer Loading :

Exhibition:
