12 M3/h Hydraulic Concrete Pump
US$ 15,000 - 25,000
/ Set
1 Set(Min. Order)
- Shanghai/Ningbo
- T/T Credit Card
You May Like
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Zhejiang, China | Brand Name | Wengong | |
| Model Number | WZBT-12S | Power(W) | 22kw | |
| Weight | 1800kgs | Dimension(L*W*H) | 4000x1300x1550mm | |
| Certification | CE, ISO9001:2008 | Warranty | 6months | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
hydraulic concrete pump>Adpot German technology
>S tube distributing valve,Continuous pump
>Energy saving,Low oil temperatur

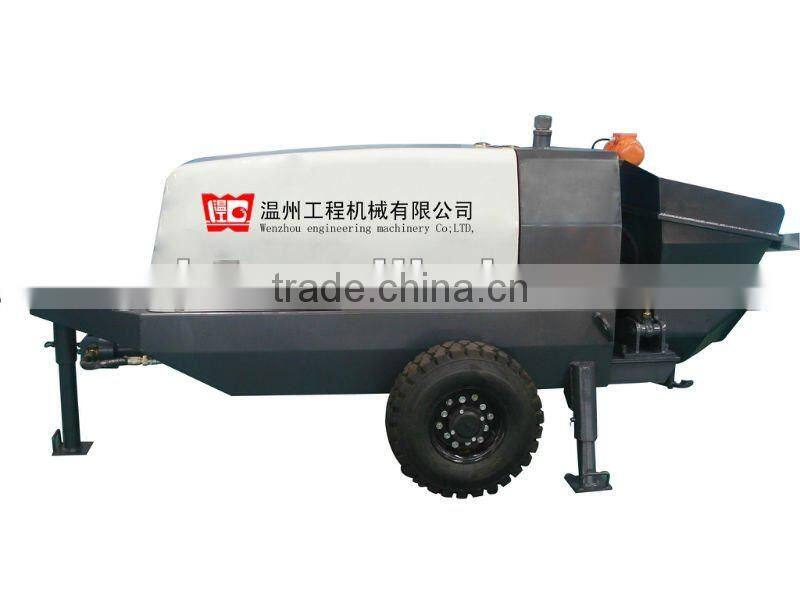

WZBT-12S concrete pump
Application
1.deliver warm or lightweight insulation foam cement, mortar, small aggregate concrete;
2.deliver and spray fire protection, thermal insulation material;
3.deliver and spray ecological environment in the green soil;
4.deliver and spray the plain concrete, fiber concrete in various projects construction;
ure grouting for various kinds of foundation piles.
Main technical parameters
| Items | Units | WZBT-12S |
| Theoretical maximum throughput | m3/h | 12 |
| Maximum pumping pressure | MPa | 6 |
| Theoretical maximum vertical delivery distance | m | 80 |
| Theoretical maximum level delivery distance | m | 300 |
| Maximum aggregate sizes | mm | 20 |
| Land-slide degree | cm | 12--23 |
| Delivery hose inside diameter | mm | 100/70 |
| Qty of delivery cylinder | pc | 2 |
| Concrete cylinder inside diameter × stroke | mm | Φ120×700 |
| Hydraulic oil tank capacity | L | 165 |
| Feeding height | mm | 1100 |
| Feeding hopper capacity | m3 | 0.3 |
| Motor electric power | kw | 22 |
| 3-phase Voltage & frequency | We can make specially for you | |
| Dimensions (L × W × H) | mm | 4000×1300×1550 |
| Weight | kg | 1800 |

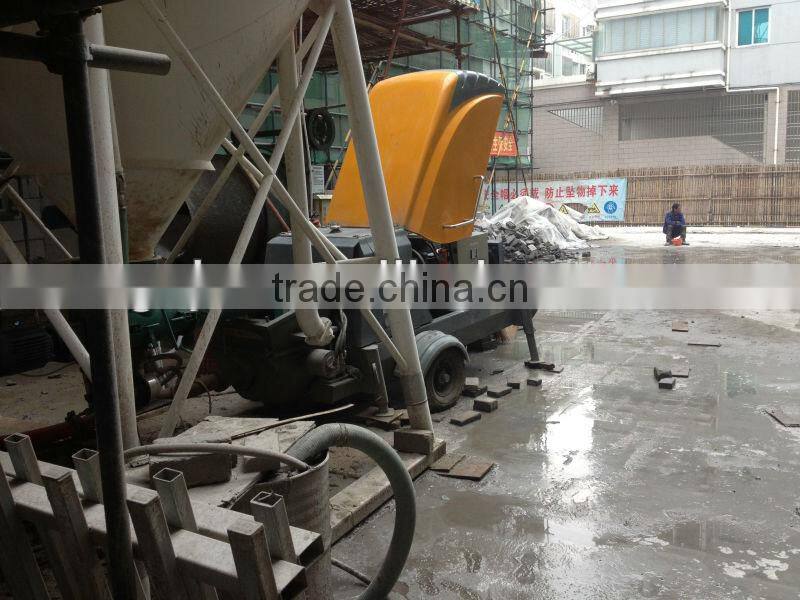

1. The concrete pump is used for pumping fine concrete and mortar which have been used for 3years.

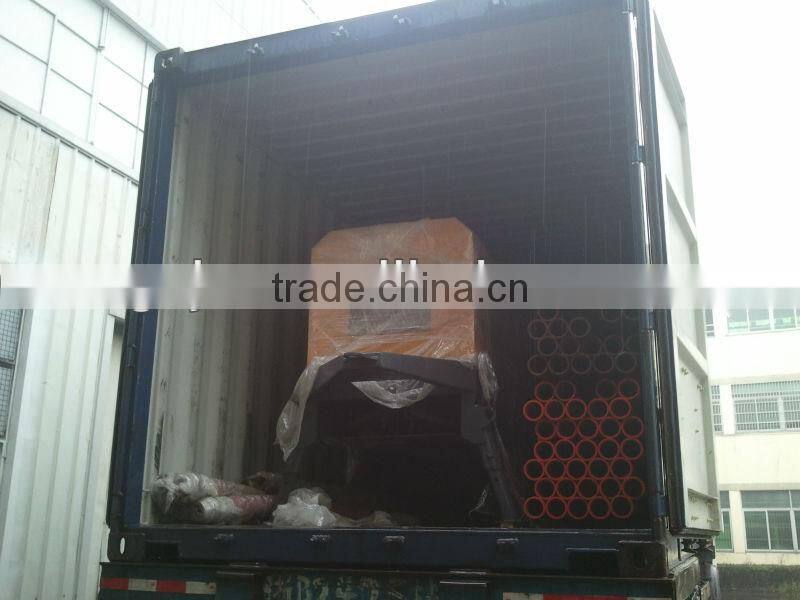

2. It's packed into 20ft container and export to Philippines.
Contact Us
- Wenzhou Engineering Machinery Co., Ltd.
- Contact namePeng Jiabin Chat Now
- Phone86-577-86529608
- AddressNo.99 Aojiang north road,Wenzhou Economic & Technical Development Zone,Wenzhou,China, Wenzhou, Zhejiang
