9CBM DongFeng Concrete Truck
- SHANGHAI/NINGBO PORT
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | WenGong | Model Number | DongFeng DALISHEN |
Product Description
Specifications
DALISHEN Concrete truck> Produce concrete truck 15years,CE
>Eaton and SAUER hydraulic system
>290hp, 6x4,11:00wire tire

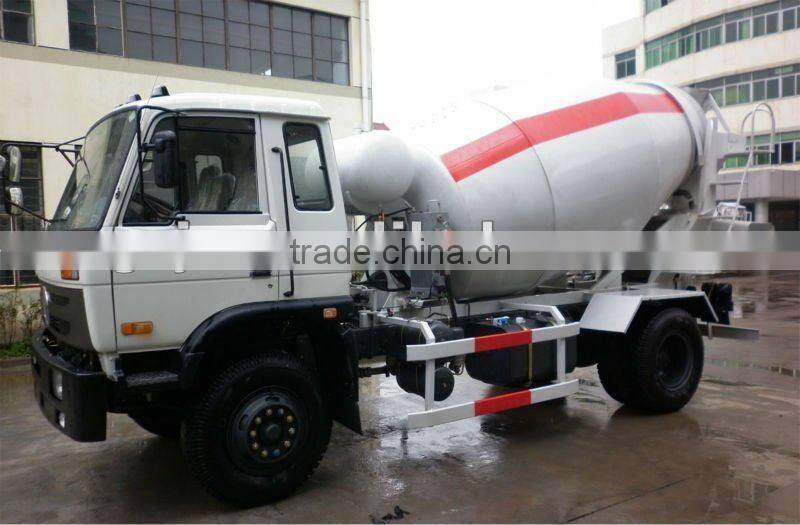

9CBM DongFeng concrete truck
This product is very favored by commodity concrete manufacturers and highway and railway construction units with structure featuring unique advantages and practicability. Different classes of chassis offer with outstanding quality and advanced technology. The hydraulic system adopts the worlds top technology and components, including the oil pump, motor and reducer made by Eaton and SAUER from USA, BONFBIGLIOLI from Italy, LOSI from Germany and KAYABA from Japan.
The agitator tank uses the current advanced tank optimal design, double spiral curve surface mould cold-presses the 3D agitator blade to form different helix angleslead angles and guiding angles. Make sure of even agitating and discharging quickly and cleanly. Both the tank body and the blades are made of high-strength wearable armor plate.
| DongFeng DALISHEN Concrete Truck Mixer | ||||
| Entire Truck and Chassis Parameters | Model of entire turck | DFL5250GJBAX1 | ||
| Model of chassis | DFL32550A1 | |||
| Engine model | ISL340.30E | |||
| Power (hp) | 250 | |||
| Weight of the truck (kg) | 13000 | |||
| Weight of rated load (kg) | 11870 | |||
| Overall dimension (mm) | 8840×2500×3930 | |||
| Whole Function & Technical Parameters | Mixing Volume (m3) | 8 / 9 | ||
| Driving Hydraulic System | Pump | Model | EATON, REXROTH,SAUER | |
| Max working pressure/Output | 42Mpa / 90ml/rev | |||
| Motor | Model | EATON, REXROTH,SAUER | ||
| Max working pressure/Output | 42Mpa / 90ml/rev | |||
| Decelerator | Model | BONFIGLIOLI (Italy), LOSI (Germany),ZF (Germany) | ||
| Torqve | 60000 Nm | |||
| Speed Ratio | 100 | |||
| Cooler | Type / tank volume | Chinese YS-18 / Germany AKG-25 | ||
| Mixing Drum Technical Parameters | Geometric Volume (m3) | 14.6 /15.1 | ||
| Filling Rate(%) | 63 | |||
| Speed of Charge-in(m3/min) | ≥3 | |||
| Speed of Discharge(m3/min) | ≥2 | |||
| Residual rate(%) | 0.5 | |||
| Speed of Agitator(r/min) | 0-16 | |||
| Leaning Angle | 1-15° | |||
| Land-slide Degree | 70-260mm | |||
| Marterial of Tank Body | B520J Wearable steel | |||
| Structure of Spiry Blade | Cold double-helix of three-dimensional leaf mold | |||
| Water Supply System | Way of Water Supply | Offered by air compressor | ||
| Water Tank Volume (L) | 350 | |||
