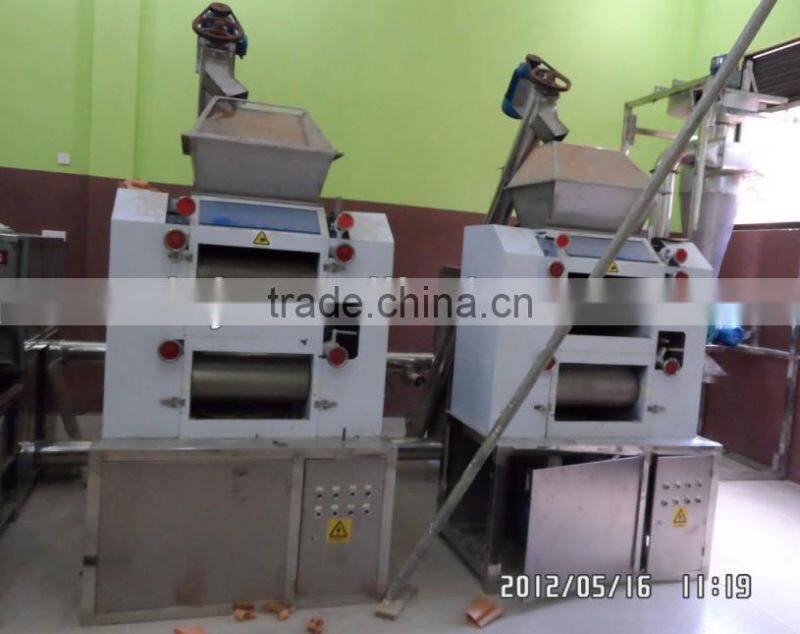

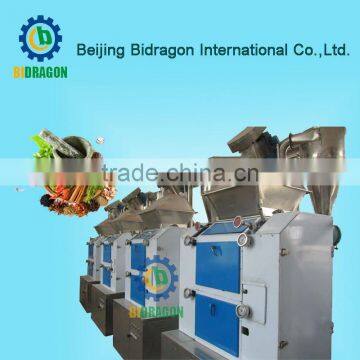

BCH 600 Fennel Powder Grinding Machine

Specifications

PRODUCT NAME:

BCH-800 SPICY POWDER PROCESSING MACHINE FENNEL POWDER GRINDING MACHINE

TECHNICAL PARAMETERS:

BCH-800 Paprika Powder Grinding Machine

1.Output: process 800kg/hour.
2.The total power: 69.6 KW, the voltage: 380V, 50HZ    Milling Machine Weight: about 7.2t

bulk 7 m3     number of the container(20feet)  4sets(FOUR)
3. The size of workshop. It needs a workshop; the length of the workshop is 5m. The span is 3.5m, the height is 3.5m. Our product line occupies 3*2.5 m.

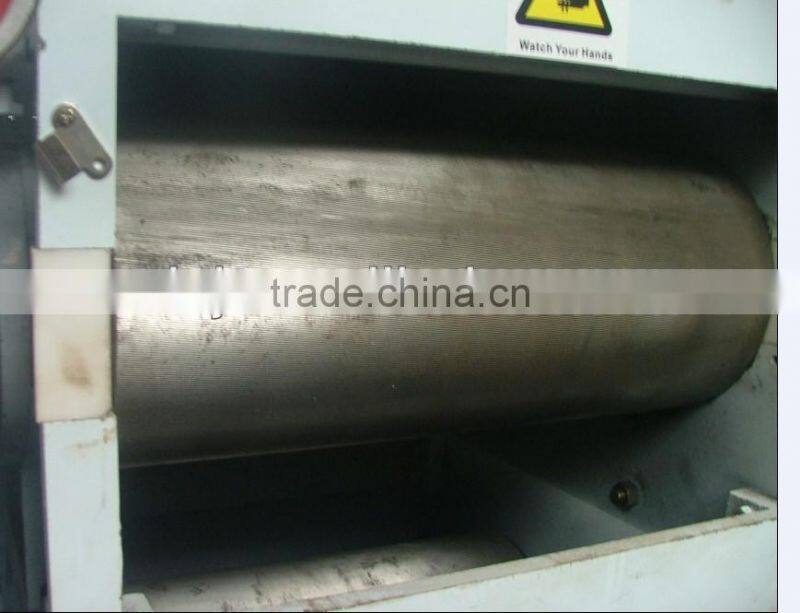

4. Man power requirement: 1-2 persons.This chili pepper milling machine is Chinese patent product, it has the high milling efficiency with lower power consumption, this chili pepper milling machine can grind the pepper into 30 meshes to 80 meshes (finess). This chili pepper milling machine is different from other general milling machine, it’s speciallydesigned for grinding into chili powder with four rollers instead of two rollers.

SPICY PROCESS GENERAL FLOW CHART :

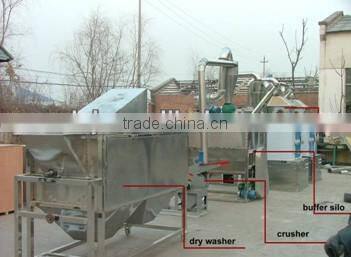

Chili drying --Chili cleaning--Chili feeding--Chili crusher/crushing--pneumatic lift--transfer silo--1 set four rollers chili powder machine --collected powder of chili—chili power sterilization--chili powder package
