Home > Products > HZS Series concrete batching plant > HZS25 Concrete Batching Plant With Low Price for Best Selling

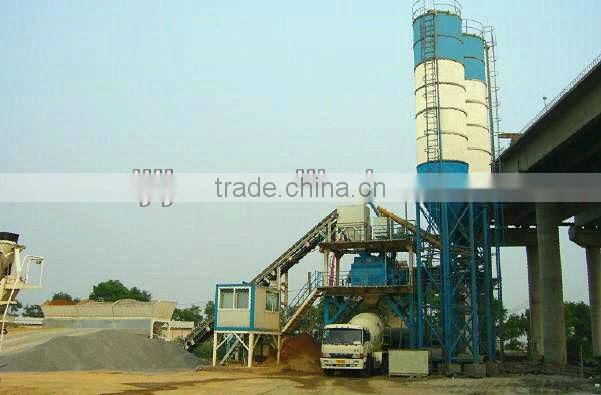

HZS25 Concrete Batching Plant With Low Price for Best Selling
- Qingdao
- T/T Credit Card
You May Like
-
Good After-sales Concrete Batch Plant for Sale With Low PriceHZS25
-
Competitive Price Mini Concrete Mixer, Stationary Concrete Batching Plant HZS25
-
HZS50 Concrete Batch Station With Good After-sales for Sale
-
HZS50 Low Cost Concrete Batching Plant for Sale
-
HZS50 Certified Concrete Batch Plant for Sale
-
HZS25 Professional Concrete Batching Plant for Sale
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Shandong, China | Brand Name | JIANLING | |
| Model Number | HZS25 | Power(W) | 18.5kw | |
| Certification | CE ISO TUV | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
HZS25 Concrete Batching Plant Price
Features of concrete batching plant:
1. The concrete batching plant is a large-scale concrete mixing equipment, combining material storage, measurement and mixing, with high output.
The equipment, which adopts forced mixer with double horizontal shafts as its matching principal machine with 3.8m concrete unloading height, can mix all kinds of concrete, especially hard concrete
2. Applicable for projects of architectures, water and electricity, highways, ports, docks and bridges in medium scale as well as large-and-medium scale preformed unit plants and concrete manufacturing plants.
3. Microcomputer control and electronic scale weighing guarantee high measuring accuracy and small error.
4. Functions include screen display, batching storage, automatic gap compensation and manual system which makes manual and automatic control available in mixing process.
In addition, the equipment is equipped with printing system and can be installed with monitoring system according to user demand to realize concentrated control and integral management of the entire equipment.
Main Technical Parameters of Concrete batching plant:
Model | HZS25 | HZS40 | HZS50 | HZS75 | |
Theoretical Output Rate (m3/h) | 25 | 40 | 50 | 75 | |
Mixer | Model | JS500 | JS750 | JS1000 | JS1500 |
Power(kw) | 18.5 | 30 | 18.5×2 | 30×2 | |
Discharging Capacity | 0.5 | 0.75 | 1 | 1.5 | |
Production Cycle(s) | 72 | 72 | 72 | 72 | |
Capacity of Aggregate Storage Bin m3 | 3×4 | 3×4.5 | 3×8 | 3×8 | |
Measuring Accuracy % | Aggregate | ±2 | ±2 | ±2 | ±2 |
Cement | ±1 | ±1 | ±1 | ±1 | |
Water | ±1 | ±1 | ±1 | ±1 | |
Additive | ±1 | ±1 | ±1 | ±1 | |
Coal Ash | ±1 | ±1 | ±1 | ±1 | |
Matching Cement Bin | SNC50 | SNC100 | SNC100 | SNC100 | |
Matching Cement Screw Conveyor | LSJ40 | LSJ40 | LSJ40 | LSJ80 | |
Matching Coal Ash | SNC50 | SNC100 | SNC100 | SNC100 | |
Matching Coal Ash Screw Conveyor | LSJ40 | LSJ40 | LSJ40 | LSJ40 | |
Discharge Height( m) | 3.8 | 3.8 | 3.8 | 3.8 | |
*We can customize according to your requirements, welcome to enquire, we will give you the detailde and accurate concrete batching plant price.
Technical Parameter of Matched Cement Silo/Bin:
Model | Tanker Diameter | Tanker Height | Tanker Total Height | Matched Mixer | Matched Screw Conveyor |
SNC30 | 3m | 4.8m | 11.4m |
|
|
SNC50 | 3m | 5.4m | 12m | JS500 | 219 |
SNC80 | 3m | 9m | 15.6m | JS750 | 219/273 |
SNC100 | 3m | 11.4m | 18m | JS1000/2000 | 219/273 |
SNC150 | 3.3m | 23.5m | 29m | JS1500 | 273/325 |
SNC200 | 4.5m | 18.6m | 25.2m | JS2000/3000 | 325 |
Technical Parameter of Matched Screw Conveyor:
Model | Output Rate | Speed of Screw Shaft | Motor Power | Rotating Speed of Motor | Diameter | Screw Pitch | Conveying Length |
LSJ20 | 20t/h | 204rpm | 2.2-5.5kw | 1440rpm | 168mm | 112-150mm | 3-13m |
LSJ40 | 40t/h | 204rpm | 5.5-11kw | 1440rpm | 219mm | 133-200mm | 4-12m |
LSJ80 | 80t/h | 204rpm | 11-18.5kw | 1440rpm | 273mm | 166-250mm | 4-12m |
LSJ120 | 120t/h | 143rpm | 15-22kw | 1440rpm | 325mm | 200-300mm | 6-11m |
We also supply concrete mixer, concrete batching plant / mixing plant, Concrete Mixing Station, Concrete batching machine, screw conveyor, cement silo, if you are interested in our products, please do not hesitate to contact us, we will offer the best quality and the most competitive price to you, thanks.
Our Advantages:
1. Trade directly with factory who has over 20 years' history.
2. Professional team.
Perfect quality.
Perfect service idea.
3. Competitive price.
4. Best manufacturer in jinan China.
5. We accept all kinds of payment & trade terms.
6. with advanced technology and prompt service, we build long business with world customers, such as Canada,Poland,Russia,Kazakhstan, Azerbaijan ,
Canada,Poland,Russia,Kazakhstan, Azerbaijan, Mongolia, Saudi Arabia, UAE, Yemen, Algeria, Malaysia, Indonesia, Philippines. Etc.we have good experience
Complete after-sale service system:
1.Warranty:1 year.
2.Eengineer is available to service abroad.
2.In the overall process,provide installation instruction and debugging for customers and train operating staff free of charge.
3.Techincal assistance is avaible in 24 hours.
__________________________________________________
Shandong Jianling Machinery Co., Ltd.
has more than 25 years of production experience. The Company seeks survival with quality and promotes development with science and technology. The Company has developed successively a wide range of concrete machinery and road construction machinery since it’s establishment and now it is one of the Chinese enterprises with complete types, advanced technology and strong capacity in producing complete sets of concrete batching, mixing and conveying machinery and road construction machinery.
Welcome to out Factory:
Certificate:
Contact Us
- Shandong Jianling Machinery Co., Ltd.
- Contact nameCathy cheng Chat Now
- AddressNo. 6, Industrial Middle Road, Gushan Industrial Park, Changqing Dist.
