Home > Products > HZS Series concrete batching plant > HZS75 concrete batching plant for sale mix concrete
HZS75 concrete batching plant for sale mix concrete
- 20 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
concrete mixing station HZS25 for sale
-
HZS25 concrete batching plant concrete mixer plant for sale
-
HZS75 Factory Suppy Cheap Ready-mixed Concrete Batching Plant
-
HZS40 Factory Supply Low Price Cement Batching Plant
-
HZS25 t concrete mixer plant for sale with famous brand
-
YHZS50 factory supply mobile concrete batch plant
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Shandong, China | Brand Name | JIANLING | |
| Model Number | HZS75 | Power(W) | 60kw | |
| Certification | TUV ISO CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

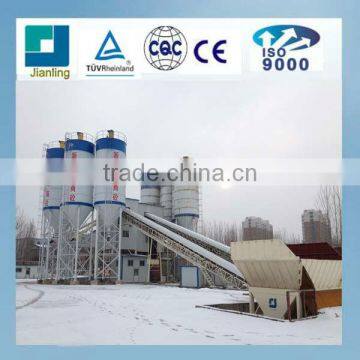

HZS75 concrete batching plant
Features of concrete batching plant for sale:
1. The concrete batching plant is a large-scale concrete mixing equipment, combining material storage, measurement and mixing, with high output.
The equipment, which adopts forced mixer with double horizontal shafts as its matching principal machine with 3.8m concrete unloading height, can mix all kinds of concrete, especially hard concrete
2. Applicable for projects of architectures, water and electricity, highways, ports, docks and bridges in medium scale as well as large-and-medium scale preformed unit plants and concrete manufacturing plants.
3. Microcomputer control and electronic scale weighing guarantee high measuring accuracy and small error.
4. Functions include screen display, batching storage, automatic gap compensation and manual system which makes manual and automatic control available in mixing process.
In addition, the equipment is equipped with printing system and can be installed with monitoring system according to user demand to realize concentrated control and integral management of the entire equipment.
Main Technical Parameters of mini concrete batching plant for sale:
*We can customize according to your requirements, welcome to enquire.
Technical Parameter of Matched Cement Silo/Bin:
Model | Tanker Diameter | Tanker Height | Tanker Total Height | Matched Mixer | Matched Screw Conveyor |
SNC30 | 3m | 4.8m | 11.4m |
|
|
SNC50 | 3m | 5.4m | 12m | JS500 | 219 |
SNC80 | 3m | 9m | 15.6m | JS750 | 219/273 |
SNC100 | 3m | 11.4m | 18m | JS1000/2000 | 219/273 |
SNC150 | 3.3m | 23.5m | 29m | JS1500 | 273/325 |
SNC200 | 4.5m | 18.6m | 25.2m | JS2000/3000 | 325 |
Technical Parameter of Matched Screw Conveyor:
Model | Output Rate | Speed of Screw Shaft | Motor Power | Rotating Speed of Motor | Diameter | Screw Pitch | Conveying Length |
LSJ20 | 20t/h | 204rpm | 2.2-5.5kw | 1440rpm | 168mm | 112-150mm | 3-13m |
LSJ40 | 40t/h | 204rpm | 5.5-11kw | 1440rpm | 219mm | 133-200mm | 4-12m |
LSJ80 | 80t/h | 204rpm | 11-18.5kw | 1440rpm | 273mm | 166-250mm | 4-12m |
LSJ120 | 120t/h | 143rpm | 15-22kw | 1440rpm | 325mm | 200-300mm | 6-11m |
We also supply concrete batching/mixing plant, Concrete Mixing Station, Concrete batching machine, screw conveyor, cement silo, concre reclaimer
If you are interested in our products, welcome to enquire.
_________________________________________________
Shandong Jianling Machinery Co., Ltd.
has more than 25 years of production experience. The Company seeks survival with quality and promotes development with science and technology. The Company has developed successively a wide range of concrete machinery and road construction machinery since it’s establishment and now it is one of the Chinese enterprises with complete types, advanced technology and strong capacity in producing complete sets of concrete batching, mixing and conveying machinery and road construction machinery.
Welcome to our factory:
Certificate:
FAQ:
Q1: Are you a factory or a trading company?
A: We are not only a factory, but also have our own oversea dept.
Q2: Before send us the inquiry, what should you know?
A:
1. Do you need Concrete Batching Plant or Stabilized Soil Mixing Plant?
2. (1) If you need Concrete Batching Plant, do you need Stationary (Fixed), Mobile or Ready-mixed Concrete Batching Plant, and what is the capacity?
(2) If you need Stabilized Soil Mixing Plant, do you need Stationary (Fixed) or Mobile Stabilized Soil Mixing Plant and what is the capacity?
3. Do you need Cement Silo? We can supply you 50T / 100T / 150T / 200T / 300T / 500T... If so, how many silos do you need? And what is the capacity?
4. About the power condition, in China is 380V / 50HZ / 3P, the same or not?
5. For the Aggregate Batcher, which is for the storage of sand, stone and other aggregates, how many hoppers do you need? Usually, we supply you 3 / 4 / 5 hoppers.
Q3: Why choose us?
A:
1. We are professional manufacturer and exporter with our own factory;
2. We have our own professionals and technicians to handle development, design, production, sales and service;
3. Our products have passed the CE Certification and ISO9001: 2008.
4. We use the real steel structure.
5. We use several famous brand accessories: such as Load cell---TOLEDO, Cylinder---AIRTAC, Screw conveyor---SICOMA, Silo accessory---WAM, Electronic control components---SIEMENS and SCHNEIDER...
6. Excellent mixing performance;
7. The whole set of machine can be auto-operated by PLC;
8. Perfect after service;
9. High quality and reasonable price
10. 12 months guarantee;
11. Have a professional, respectful, and effectively cooperate team;
12. The quality of our machineries is stability for we have about 14 years’ experience.
13. Cooperate with many universities to get the latest technology
14. We combine our experience with European technology to improve our machinery quality.
15. Our customers are all over the world, especially the Africa, Middle East, South America, Southeast Asia, Australia, Russia, etc, and received very well feedback from them.
