HZS50 professional architectural concrete batch plant
- 20 Set / Sets per Month
- QINGDAO
- T/T Credit Card
You May Like
-
HZS75 concrete batching plant for sale mix concrete
-
concrete mixing station HZS25 for sale
-
HZS25 concrete batching plant concrete mixer plant for sale
-
HZS75 Factory Suppy Cheap Ready-mixed Concrete Batching Plant
-
HZS40 Factory Supply Low Price Cement Batching Plant
-
HZS25 t concrete mixer plant for sale with famous brand
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Shandong, China | Brand Name | JIANLING | |
| Model Number | HZS50 | Power(W) | 37kw | |
| Certification | CE TUV | Warranty | 2 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

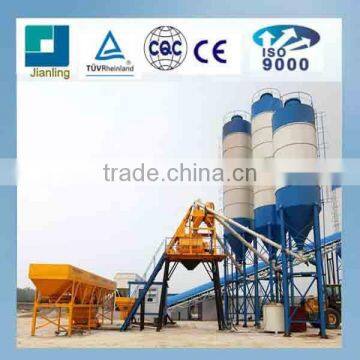

HZS50 concrete batch plant
Features of HZS50 concrete batch plant
1. HZS50 is a large-scale concrete mixing equipment, combining material storage, measurement and mixing, with high output.
Can mix all kinds of concrete, especially hard concrete
2. Applicable for projects of architectures, water and electricity, highways, ports, docks and bridges in medium scale as well as large-and-medium scale preformed unit plants and concrete manufacturing plants.
3. Microcomputer control and electronic scale weighing guarantee high measuring accuracy and small error.
4. Functions include screen display, batching storage, automatic gap compensation and manual system which makes manual and automatic control available in mixing process.
Main Technical Parameters of HZS50 concrete batch plant
Model | HZS25 | HZS40 | HZS50 | HZS75 | |
Theoretical Output Rate (m3/h) | 25 | 40 | 50 | 75 | |
Mixer | Model | JS500 | JS750 | JS1000 | JS1500 |
Power(kw) | 18.5 | 30 | 18.5×2 | 30×2 | |
Discharging Capacity | 0.5 | 0.75 | 1 | 1.5 | |
Production Cycle(s) | 72 | 72 | 72 | 72 | |
Capacity of Aggregate Storage Bin m3 | 3×4 | 3×4.5 | 3×8 | 3×8 | |
Measuring Accuracy % | Aggregate | ±2 | ±2 | ±2 | ±2 |
Cement | ±1 | ±1 | ±1 | ±1 | |
Water | ±1 | ±1 | ±1 | ±1 | |
Additive | ±1 | ±1 | ±1 | ±1 | |
Coal Ash | ±1 | ±1 | ±1 | ±1 | |
Matching Cement Bin | SNC50 | SNC100 | SNC100 | SNC100 | |
Matching Cement Screw Conveyor | LSJ40 | LSJ40 | LSJ40 | LSJ80 | |
Matching Coal Ash | SNC50 | SNC100 | SNC100 | SNC100 | |
Matching Coal Ash Screw Conveyor | LSJ40 | LSJ40 | LSJ40 | LSJ40 | |
Discharge Height( m) | 3.8 | 3.8 | 3.8 | 3.8 | |
Technical Parameter of Matched Cement Silo/Bin:
Model | Tanker Diameter | Tanker Height | Tanker Total Height | Matched Mixer | Matched Screw Conveyor |
SNC80 | 3m | 9m | 15.6m | JS750 | 219/273 |
SNC100 | 3m | 11.4m | 18m | JS1000/2000 | 219/273 |
SNC150 | 3.3m | 23.5m | 29m | JS1500 | 273/325 |
SNC200 | 4.5m | 18.6m | 25.2m | JS2000/3000 | 325 |
Technical Parameter of Matched Screw Conveyor:
Model | Output Rate | Speed of Screw Shaft | Motor Power | Rotating Speed of Motor | Diameter | Screw Pitch | Conveying Length |
LSJ20 | 20t/h | 204rpm | 2.2-5.5kw | 1440rpm | 168mm | 112-150mm | 3-13m |
LSJ40 | 40t/h | 204rpm | 5.5-11kw | 1440rpm | 219mm | 133-200mm | 4-12m |
LSJ80 | 80t/h | 204rpm | 11-18.5kw | 1440rpm | 273mm | 166-250mm | 4-12m |
LSJ120 | 120t/h | 143rpm | 15-22kw | 1440rpm | 325mm | 200-300mm | 6-11m |
