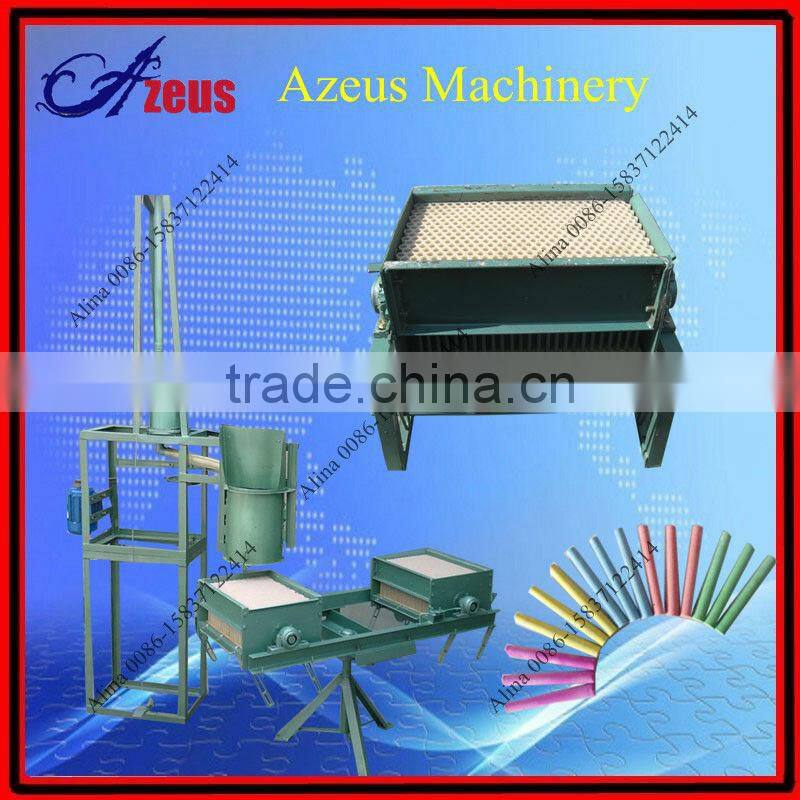

High Efficiency Automatic Colorful Dustless Chalk Making Machine Price

Specifications

High efficiency automatic colorful dustless chalk making machine price

Features

1. various capacity chalk machines, capacity rages from 6,000 PCS-48,000 PCS per hour

2. high capacity,reasonable price

3. automatic operation system,saving labor and raw materials

4. easy operation, one operation video is available

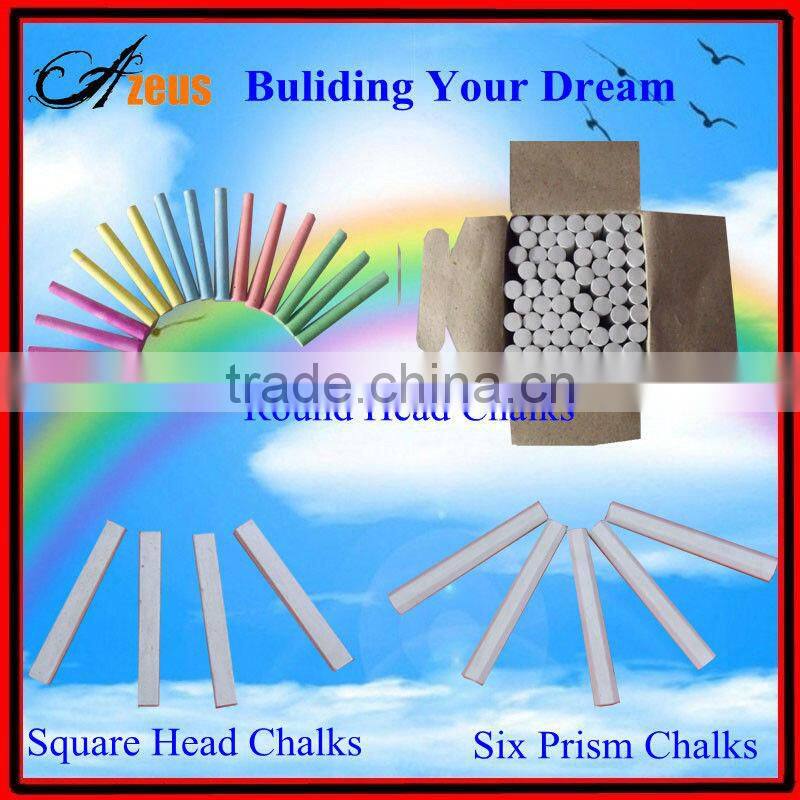

5. chalk shapes: round,square, six prism or other customized

6. taking up small area, starting big business

AUS-FM800-4 White Chalk Machine Details:

1. with 4 moulds, needing 1 person to operate

2. electric mixing slurry
3. capacity is 12,000~24,000 pieces/hour
4. Machine weight is 350 kg, and volume is 1.65m3
5. needing 3 person to pack chalks

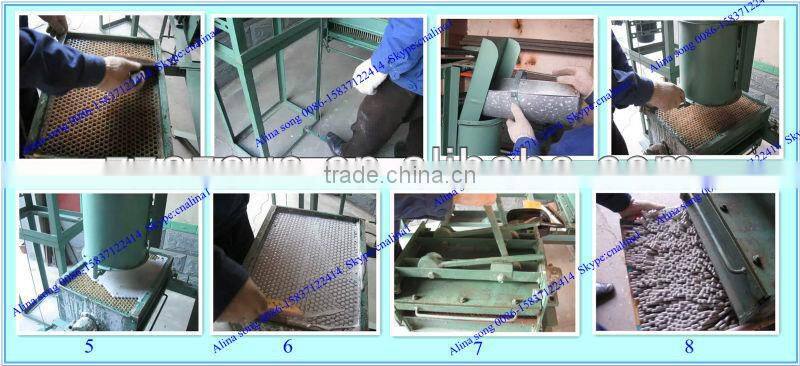

Process of making chalks:

1. Brushing oil evenly on the mould, new mould should brush more oil;

2. Water supply: step on the water supply switch, water flows into mixer bucket automatically

3. Pouring quantitative gypsum powder (calcium sulphate) into mixer bucket and closing the lid

4. Turning on the power, mixing for 3~5 mins.

5 Turning the switch on the bottom of mixer bucket, make the mixture into mould. Then using scraper smear mixture into mould hole

6. Using finger to try the hardness of chalks in the hole, when feeling stiff, to turn the mould down, putting into the tray, then operating automatic ejection structure, all the chalks will be pushed put one time.

7. Drying chalks: drying chalks under the sun, or putting them into chalk dryer machine

Technical parameters

Chalk Size Available

**** The standard chalk size is 10mm (big head)×8mm (small head)×75(length), other sizes are for options

General Introduction

1. The chalk making machine is supplied water automatically, mixing material by electric mixer, filling mould, taking off mould. All the work is in a round assembly-line.

2. They can be used to make white chalks and colorful chalks. For colorful chalks, red, orange, yellow, green, blue,brown colors are available. For chalk shapes,we can offer round head chalk moulds, square head chalk moulds and six prism chalk moulds. All our chalks are dustless chalks.

3. 2-3 days are needed to dry chalks under the sun, and the actual time depends on the weather. If you have a dryer(chalk drying machine), the chalks will be dried within 5-6 hours. Chalk dryer is available, if you need.

4. for the raw materials, if you make white chalks, only need gypsum powder;  If you make colorful chalks, need gypsum powder and color paste.

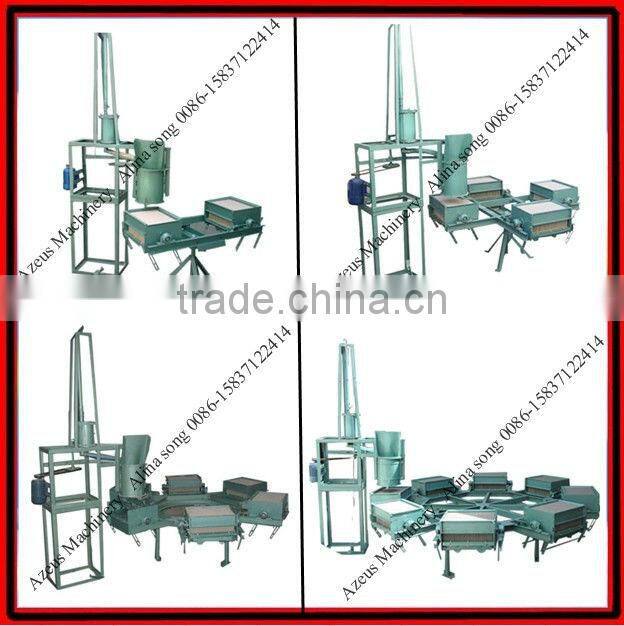

More chalk machine photos

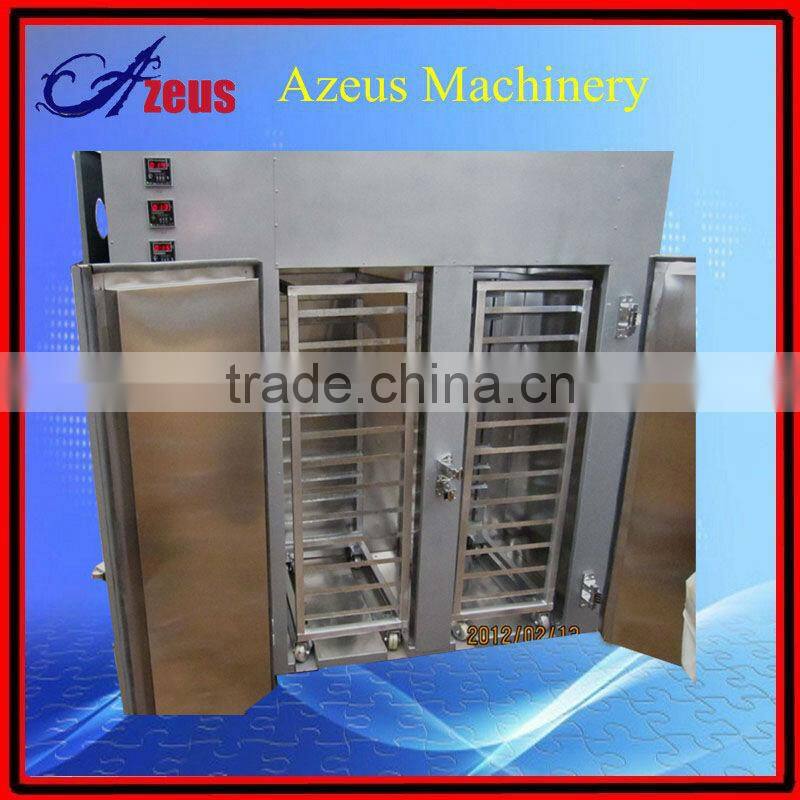

Chalk Dryer Machine

Remarks:

1.The quality of chalk stick is depend on the quality of gypsum, and the ratio of water and gypsum is 1:1.

2. Delivery time: within 10-15 days after receiving the payment.

3. Quality Guarantee Terms: The main body (not included wearing parts) guarantee is one year.
