High quality crimped wire mesh machine

High quality crimped wire mesh machine

1. Product Description

         Crimped wire mesh machine is the use of large diameter wire by gining machines for rolling into shape, weaving various mechanical specification for the square hole sieve series weaving machines. Automatic crimped wire mesh machine can finish the work from making the wire crimp to formation of the net automatically. fast, easy to operate and good performance of the machine.

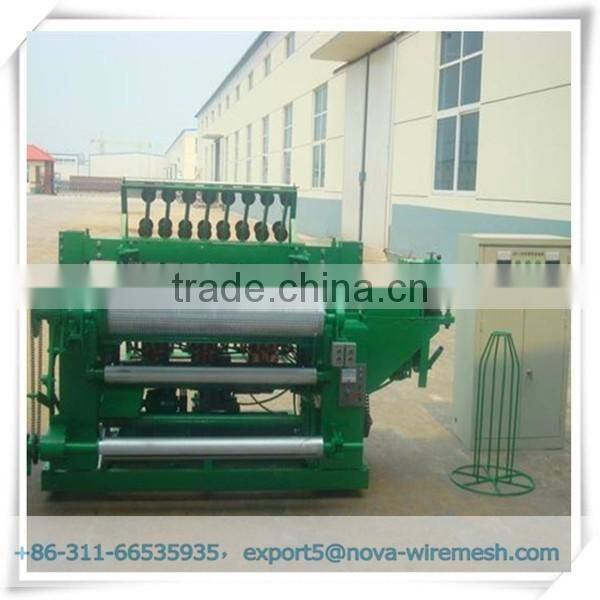

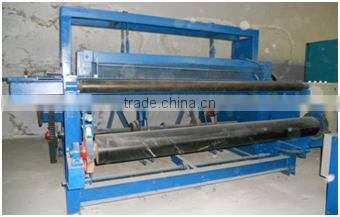

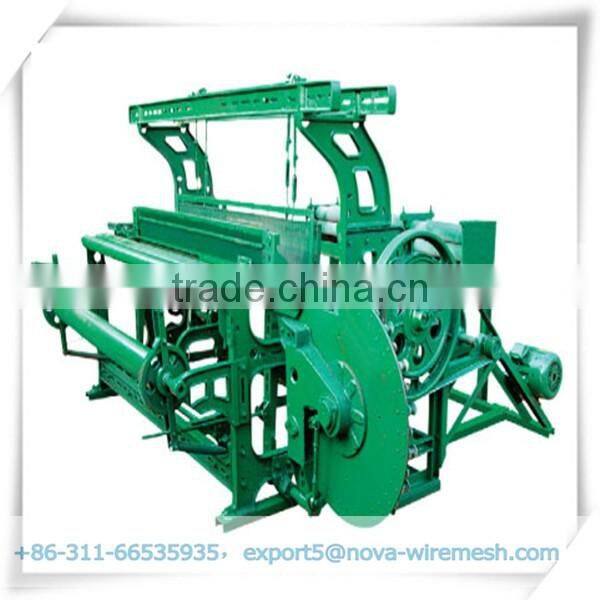

Type1: full automatic crimped wire mesh machine

Technical parameter:

Wire diameter: 0.2-2.0mm

Width: 1.0--2.0m

Mesh size: according mold

1. The new crimped mesh weaving machine covers the type of old loom, the function is
2. complete.
3. The standardization eagerly anticipates the silk screen machinery new tidalcurrent, its perfection Manifests below
4. The designation of outside can compare favorably with 130 shuttless loom, which is made in Japan.
5. Reform the spare part not to be able to use in common,brings the trouble to the user.
6. Creat four kinds of weaving,so the crimped mesh machine are used widely.Steady,weaves precisely.
7. The times of shuttle belt is improving greatly.

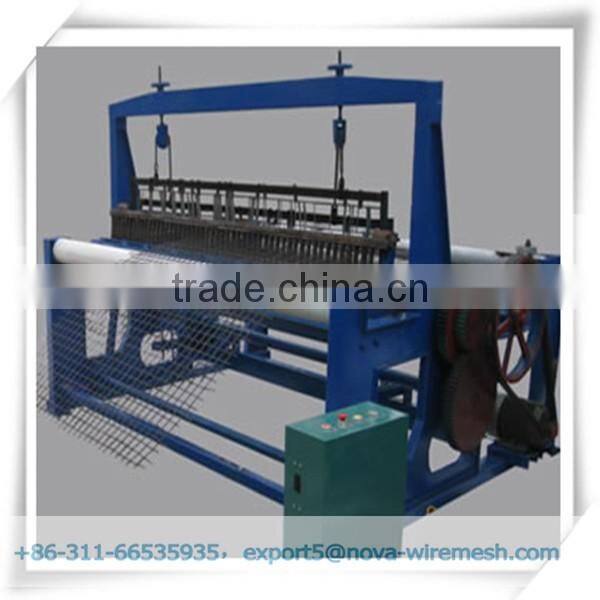

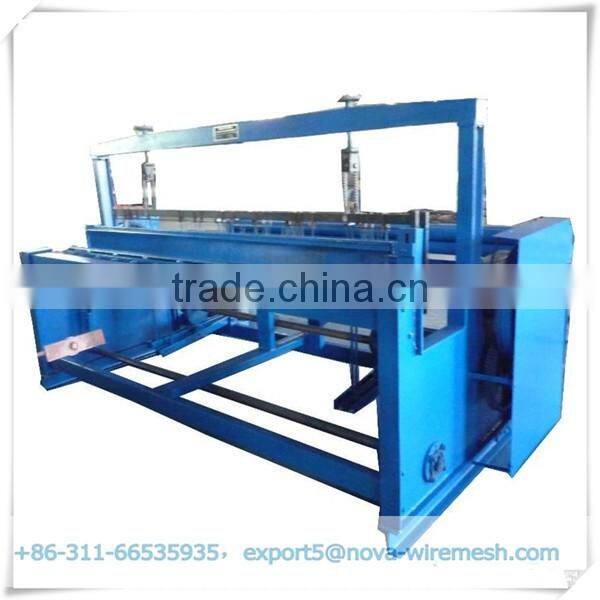

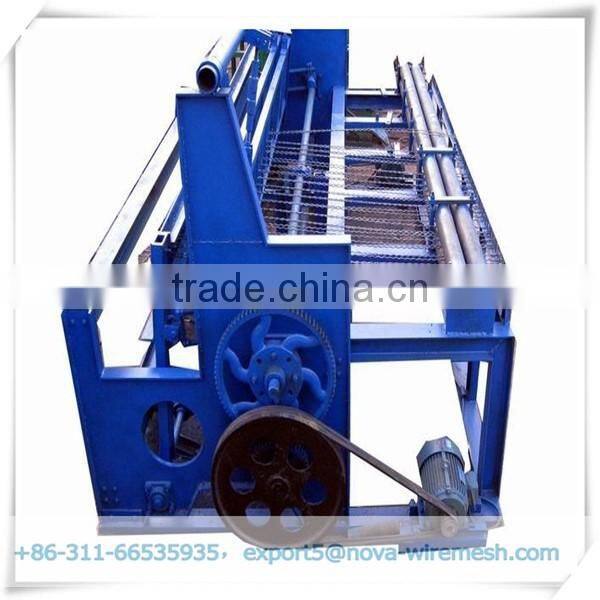

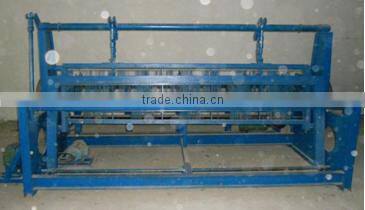

Type2:semi-automatic crimped wire mesh machine

Technical parameter:

Wire diameter: 2.0-7.0mm

Width: 1.0--3.0m

Mesh size: according mold

1. The series of Semi-automatic crimped wire mesh machine weave crimped wire net of steel, iron, lead and stainless steel wire with big diameter. The net is weaved by the machine after the thick wire is formed to crimp by the rolling machine.
2. Breadth of the net is 0.9-2.5m
3. The diameter of the wire is 2.0-8.0mm.
4. The size of the mesh is 2×2mm-80×80mm.
5. Dimension size:2200x3100x1800mm
6. Power:4kw
7. Weight:2.5T
8. The structure of the machine is compactness and rational. It performs satisfactorily and runs smoothly.
9. Breadth of the net produced by each gauge of the machine can be adjusted in a certain extent.

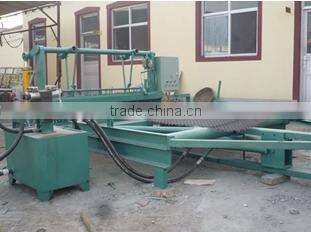

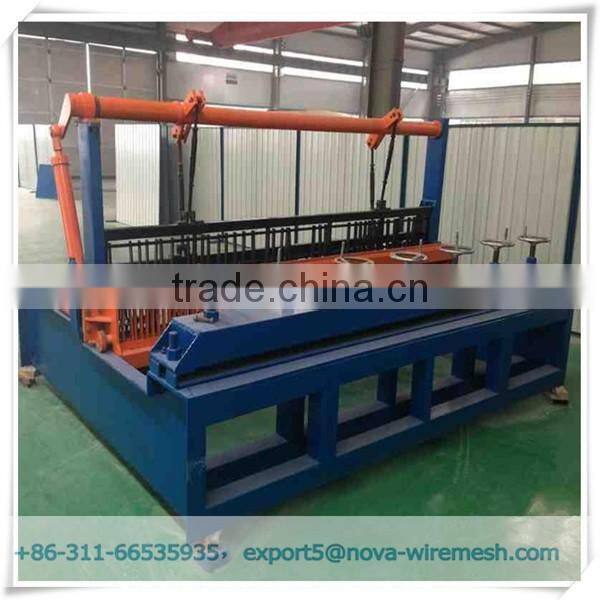

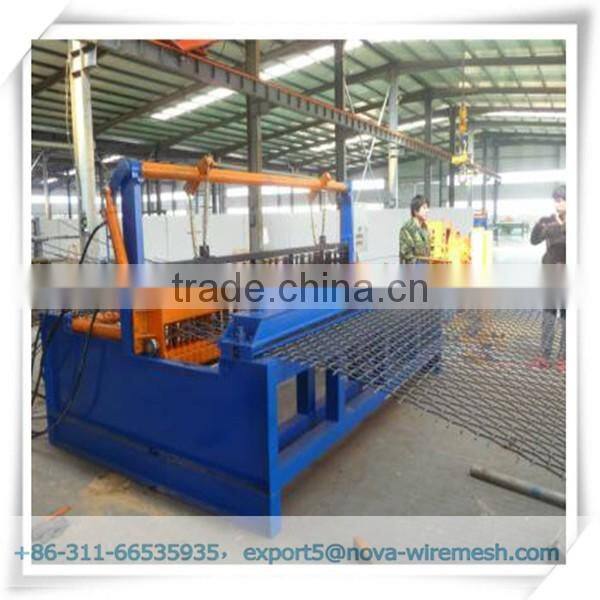

Type3: hydraulic crimped wire mesh machine

Technical parameter:

Wire diameter: 7--16mm

Width: 1.0--3.0m

Mesh size: according mold

1. Control method:electric cabinet, foot switch controlliing
2. Weaving wire dial:2mm-14mm
3. Weaving mesh size:2.5mm-150mm
4. Crimped wire speed:45m-60m/min
5. Weaving width:2500mm
6. Weaving speed:15-30times/min
7. Power:7.5kw
8. Weight:3200kg
9. Equipment include:crimped wire machine, pay-off stand, hydraulic weaving machine, hydraulic pump
10. Widely used in mining, petrochemical, coal, ore screening.

2. Packing and delivery

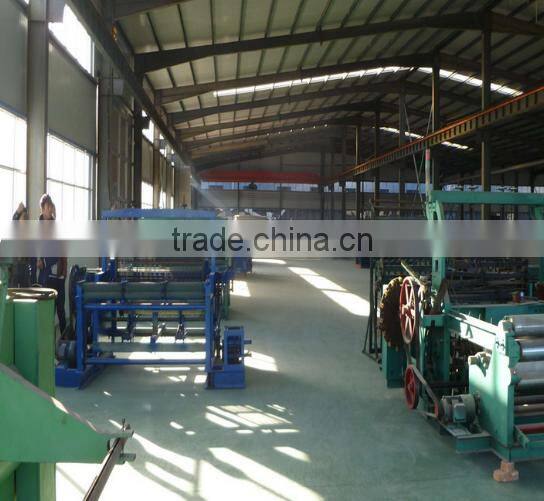

3, Shows:

8.  Our Service:

 Guarantee and After-sale Service:

 1.Warranty: One Year.

 2.Enough spare parts of machines could be supplied.

 3.Factory Own Designing and Inspection Team.

 4.All machines were tested and adjusted before delivery.

 5.Engineers avaliable to service machinery overseas: Worker-training, installation.etc.

 6.24 hours technical support by e-mail or calling service.

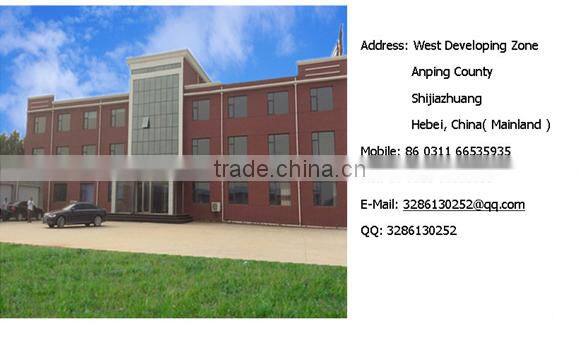

9. Company Information

Hebei Nova Metal Wire Mesh Products Company (Original name is Anping Nova wire mesh products factory) is a professional manufacturer of metal wire meshes. Nova was founded in 1999, located in the famous "Chinese Screen town" - Anping West Industry Developing Zone, which is about 220km to Beijing and 270km to Tianjin port.

Our products include 6 series, they are: Gabion series, which include gabions, gabion boxes, reno mattresses; Fence series,etc.
