Carbonization Stoves for Charcoal
- Qingdao
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
-


Carbonization Stove Charcoal Machine
 -


High Forming Rate Hard Wood Carbonization Furnace
 -


High Capacity Large Volume Sawdust Charcoal Furnace
 -


Environmental Wood Branch Coconut Shell Carbonization Stove
 -


High Carbonization Rate Bamboo Wood Branch Carbonization Oven
 -


Bamboo Wood Charcoal Kiln for Bbq at Sale

Product Details
| Condition | New | Type | Air Flow | |
| Application | Making Charcoal | Place of Origin | Henan, China | |
| Brand Name | Dongxing | Model Number | THL | |
| Effective Volume | 8CBM | Dimension(L*W*H) | 1.5M*2.17M | |
| Weight | 4.8t | Voltage | 380V | |
| Power(W) | 0.22kw | Certification | ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

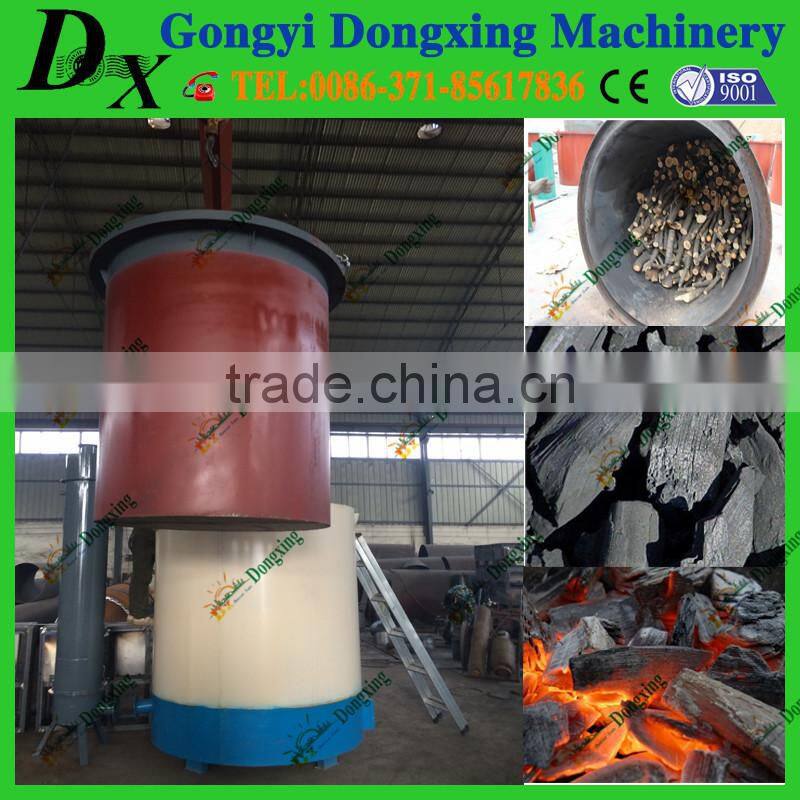

Carbonization stoves for charcoal
The information of the  Carbonization stoves for charcoal
The Carbonization stoves for charcoal
 are used to make charcoal by the materials of wood log, sawdust, leaves coconut shell and so on in a high temperature condition.
It is a dry distillation in a oxygen free atmosphere.The CO, methane and oxygen are produced in this process.
Then we will recycle them by purification treatment and reheat to the Carbonization stoves for charcoal.
Feature:
100% smokeless of the carbonizing precess.
Cooled waste water without ammonia.
Continious carbonizing process.
Special design:
Adjust temperature of the Carbonization stoves for charcoal.
Best wear resistance materials of the Carbonization stoves for charcoal.
Cooling the waste gas by water

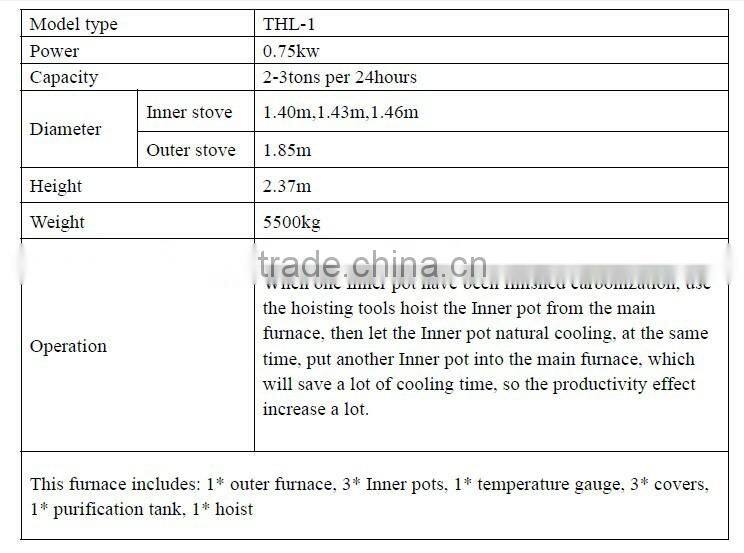

The data of the Carbonization stoves for charcoal

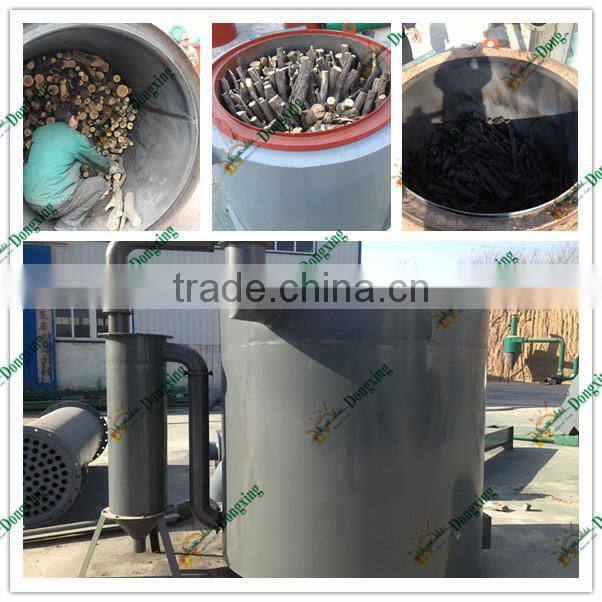

Working process of the  Carbonization stoves for charcoal

Drying process
First of all, we use waste wood or gas or others to gasoline to fire the carbonization stoves for charcoal. When the temperature goes 180 centi-degree.
The moisture from the wood is removed by the out heating of the gas or wood and the inner heating from the wood itself.
There is no chemical reaction of the wood.
Beginning of the carbonizing process
With the times goes on, the wood comes into 280 centi-degree,
the heating mainly comes from the Charcoal barbecue stove itself.
In this process, the wood comes into a thermal decompose reaction.It comes to a chemical reaction.
The hemicellulose are reacted into CO2,CO, and little acetic acid.
The process of the carbonizing process
The temperature goes 300-650 centi degree, the material would be fast heating decomposed into acetic acid, wood tar and methanol and so on.
Meanwhile the methane and the ethylene are produced in this process. This flamability gas will be firing the stove to reheat the furnace.
The wood would be dry distallation process to make charcoal.
The highest point of the carbonizing process
In this process, you have to increase the temperature to 800-1000 centi-degree,the volatile gas would be discharged in the wood, then to increase the carbon content,
the grafite content would be better, the electroproductibility would be better.

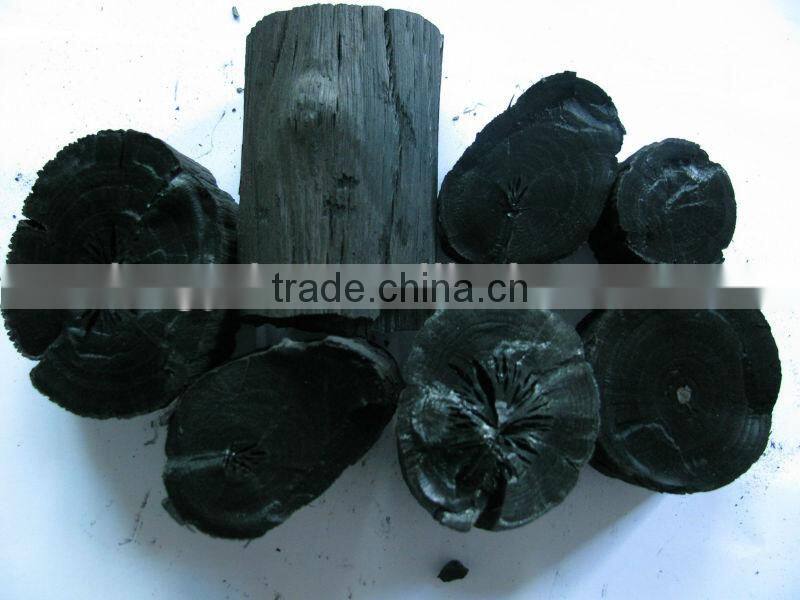

Final product of the  Carbonization stoves for charcoal

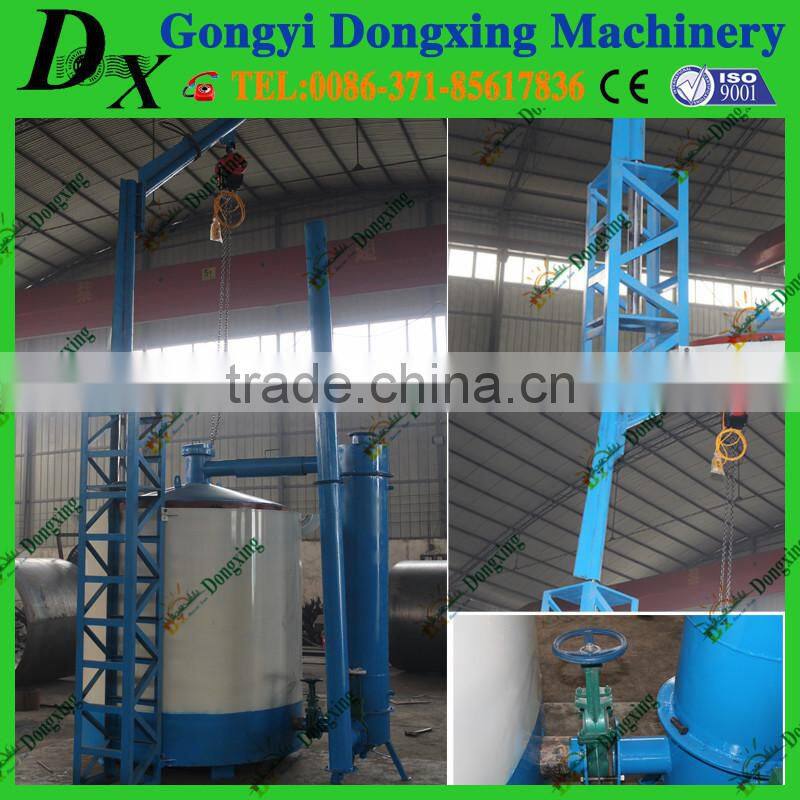

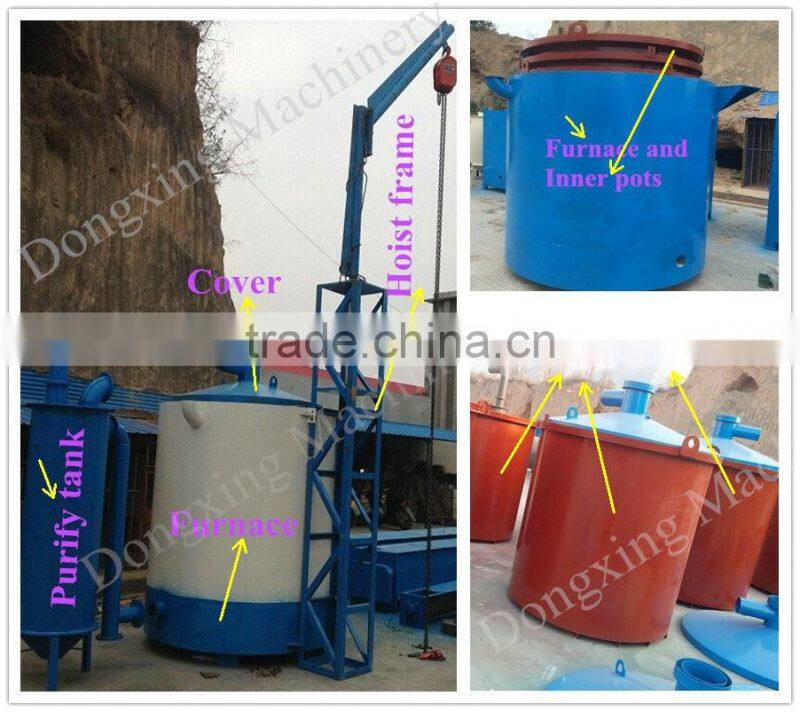

Components of the Carbonization stoves for charcoal
 Carbonization stoves for charcoal
