Hoist Type Wood Charcoal Furnace

The information of the Wood charcoal furnace

The  Wood charcoal furnace is used to make the charcoals by dry installation and mositure removement in the oxygen free atomosphere.

The principle of the  Wood charcoal furnace

The   Wood charcoal furnace use the high temperature and dry carbonization process to make charcoals. Its equipment use high temperature cooling system to cool the charcoals products so less cooling time will be needed.

The feature of the Wood charcoal furnace

I: smokeless: the gas which produce in the carbonization process would be reuse by the Carbonization furnace for briquette charcoal . The little water vapor would be come out into the atomosphere.

II:easy to operate. You only need one person to make charcoals. That will help you save your workers.

Materials to make charcoals for the Wood charcoal furnace

The final products to make charcoals for the  Wood charcoal furnace

The process of the Wood charcoal furnace

I: heating process

at first, hard fire are used to improve the temprature of the Carbonization furnace for briquette charcoal . After half an hour, you should use one line fire to remove the moisture of the materials.

II:pyrolyse and dry distillation the materials.

After the moisture are almost removed, the process is a chemical action to make charcoal by pyrolyse and distillation process. In this process, the wood tar would be produced. My factory design a purification tank to collect the wood tar.

III: the cooling process

When there are almost no smoke appears in th process, the carbonization process are ended.Hang the inner port out and seal the pipes of the cover.

Let is cooling by wind or naturally or water. When the temperature comes to 50 centi degree, you can make the charcoals out from the inner port.

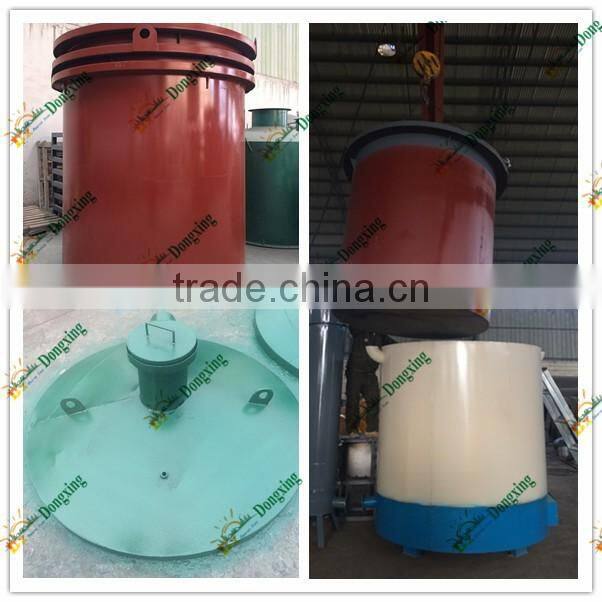

The components of the Wood charcoal furnace

I: inner port

This part include inner tank and sealed top libs. they are made of wear resistence materials. The three steel baskets are packed together. It would be easy to ship.

II: outer port

The heating room are used to heat the stove.

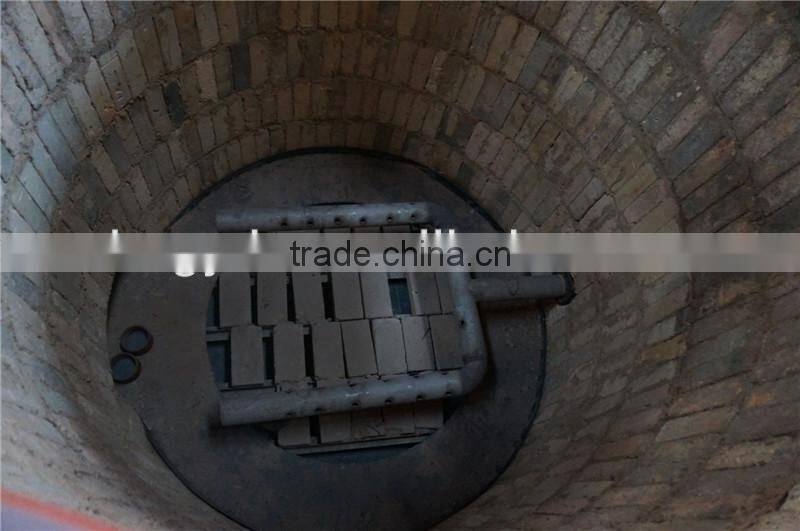

The furnace body are made of good quality bricks.

The heat keeping layer is heating insulting materials to keep heat.

III: purification tank

The purification tank and exhausted-gas recycling pipe are contained.It is used to purify the smoke by cooling scream technique and filter the wood tar. The smoke after the purification tank would be water vapore to the aire and no polution to the environment.
