Home > Products > All Kinds of Lathe > M1420 Cylindrical Grinding Machine,grinding Machine, Cylindrical Grinding Machine
M1420 Cylindrical Grinding Machine,grinding Machine, Cylindrical Grinding Machine
US$ 4,000 - 12,000
/ Set
1 Set(Min. Order)
- Dalian Port or Shanghai Port
You May Like
-
X6323A Universal Milling Machine, Milling Machine, Turret Milling Machine
-
X6325 Universal Radial Milling Machine, Universal Milling Machine,radial Milling Machine With High Performance
-
Z3040*10 RADIAL DRILLING MACHINE, Drilling Machine, Driller,lathe Machine
-
Z3040*10 RADIAL DRILLING MACHINE, Drilling Machine, Driller
-
M618A Surface Grinding Machine,grinding Machine, Grinder
-
Z3040*10 Drilling Machine, Radial Drilling Machine
Product Details
| Condition | New | Type | Cylindrical Grinding Machine | |
| CNC or Not | Normal | Max. Grinding Diameter | 400,300 | |
| Max. Grinding Length | 750,520 | Brand Name | Acecare | |
| Model Number | M1420 | Voltage | N/M | |
| Power(W) | 4.24 | Dimension(L*W*H) | 2000*1420*1600 | |
| Weight | 2500/2700KG | Certification | ISO9001 |
Product Description

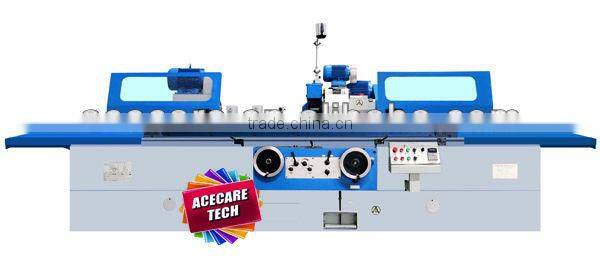

M1420 Cylindrical Grinding Machine
M1420 machine is suitable for grinding external and internal cylinder and cone, and end face of shaft. It has features of high accuracy, strong rigidity, high grinding efficiency in operation. This machine is suitable for workable for workshops with medium and small batch production, and tool, rapair workshops.
| TIONS | Max diameter to be ground | mm | 200 |
| Min diameter to be ground | mm | 8 | |
| Max length to be ground | mm | 520/750 | |
| Heigh of center | mm | 125 | |
| Distance between center | mm | 550/750 | |
| piece weight | kg | 50 | |
| WORK TABLE | Max.longitudinal travel | mm | 600/800 |
| Max.angle of swivel | 0 | 1.285714286 | |
| Hydraulic traveres speed | m/min | 0.01-4 | |
| Traverse per turn of handwheel | mm/r | 6 | |
| HEAD-STOCK | Spindle speed | r/min | 60,85,230,120,170,460 |
| Taper of headstock center | Morse | No.3 | |
| Dia. of headstock chuck | mm | 25 | |
| TAILSTOCK | Taper of headstock center | Morse | No.3 |
| Stroke of center sleeve | mm | 25 | |
| WHEE-LHEAD | Rapid travel of wheelhead | mm | 20 |
| Traverse per turn of handwheel | mm | 1 | |
| Movement per graduation on micro adjustment knob | mm | 0.001 | |
| Speed of wheelhead spindle | r/min | 2230/1820. | |
| Traverse of wheelhead | mm | 150 | |
| diameter of grinding wheel | mm | 300-400 | |
| width of grinding wheel | mm | 40 | |
| Total power motor520mm,750mm | kw | 4.24 | |
| Overall dimensions of the machine520mm,750mm(L×W×H) | mm | 2000×1420×1600/2700×1420×1600/3100×1400×1600 | |
| Weight of the machine 520mm,750mm | kg | 2500/2700 | |
