Home > Products > All Kinds of Lathe > CK6130 CNC Lathe Machine, CNC Lathe Machine, Lathe
CK6130 CNC Lathe Machine, CNC Lathe Machine, Lathe
US$ 5,000 - 15,000
/ Set
1 Set(Min. Order)
- Dalian Port or Shanghai Port
You May Like
-
Z3040*13 RADIAL DRILLING MACHINE,drilling Machine,radial Drilling Machine
-
M618A Surface Grinding Machine,sureface Grinding Machine, Grinding Machine
-
Z3040*10 Radial Drilling Machine,driling Machine, Driller
-
X6336 Turret Milling Machine,milling Machine,Horizontal Milling Machine
-
Z3040*13 Radial Drilling Machine
-
Universial Milling Machine, Model X6325 Radial Miller---Acecare Tech
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Place of Origin | Liaoning, China | |
| Brand Name | Acecare | Model Number | CK6130 | |
| Voltage | 380v | Power(W) | 2.2kw | |
| Dimension(L*W*H) | 1470*880*1440mm | Weight | 1020KG |
Product Description

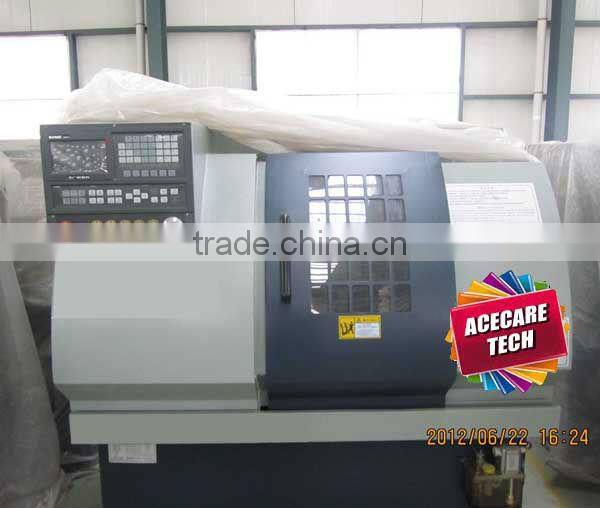

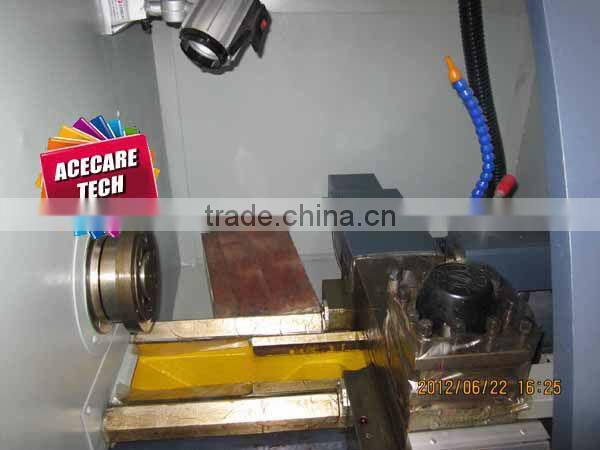

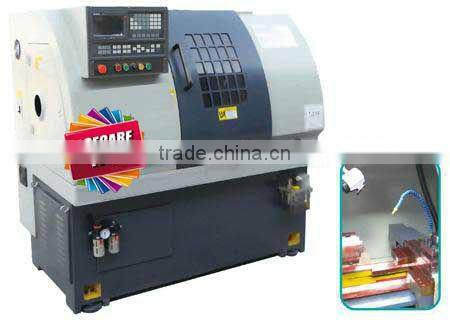

CK6130 CNC Lathe Machine
Features:
1)High efficient and high accurate tooling.
2)Infinitely variable speed change for spindle.
3)High rigidity for spindle structure.
Standard configuration:
GSK CNC system, lighting & cooling systems, bedway lubrication system, gang tool holder
| SPECIFICATION | PARAMETER |
| Max. swing dia. over bed | 320 |
| Max. swing dia. over toolpostequipped with gang type tool holder base | 100 |
| Max. swing dia. over toolpostequipped with electric tool post | 120 |
| Max. length of workpiecedistance between two centers | 300 |
| Spindle bore | 35 |
| Spindle taper | MT5 |
| Spindle speed | 300~2800r/min |
| Max. lateral strokeX axis | 125mm |
| Max. longitudinal strokeZ axis | 250mm |
| Pulse equivalent in longitudinal and lateral | X0.005mm Z0.01mm |
| Max. rapid feed in longitudinal and lateral | X4000mm/min Z8000mm/min |
| Pitch range of turning thread | 0.2~5mm |
| Tailstock quill taper | MT2 |
| Max. stroke of tailstock quill | 60mm |
| Min.setting unit(X/Z) | 0.001/0.001mm |
| Repositioning accuracy(X/Z) | 0.012/0.016mm |
| Circle/Cylinder | 0.005,0.01/100mm |
| Main motor | Y100L-4 380V 50Hz 2.2kw |
| Power of cooling pump | 380v 50Hz 40w |
| Overall dimension of machine | 1470×880×1440mm |
| N.W./G.W | 920/1020kg |
