Ship Loader in China

Ship Loader| |Loader in China| Ship Loader in China |Ship Loader in China | Ship Loader in China | Ship Loader in China

Specifications

1.ISO 9001:2008

2.Independent intellectual rights
3.China's largest manufacturer
4.500t/h~6000t/h

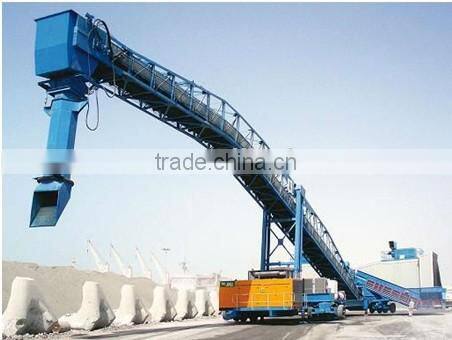

Portable Ship Loader is new dock ship loader equipment,and entire ship loading system is installed on any traveling gear at any position of dock.

System Introduction

   1. Traveling system: it adopts self-propeled driving system, and driving equipment consists of tire, axle, bearing and hydraulic motor.

   2. Belt feeder system: belt feeder consists of transmission drum roll, turnabout drum, and roller, delivery tape, cleaning device, safety protection device, tension device and metal structure frame.

   3. Arm support pitching system: arm support pitching system concludes hydraulic system and fixed support frame, and it is working by the use of double hydro-cylinder arm support with arm support pitch at 17 º -32 º angle.

   4. Feeding device: feeding device makes material be delivered on belt feeder evenly, and it can be supported with tire mobile feeding device.

   5. Charging barrel system: hose trunk swing system consists of hose swing back and front device and swing conponents. Propel equipment consists of hydraulic system, hose trunk and other components.

   6. Hydraulic control and hydraulic station: it serves to support entire ship loader to move, and support hydro-cylinder arm support to do pitching motion, and drive hose trunk to swing back and front as well as support traveling system.

   7. Electric apparatus: it consists of power supply, belt delivery component, controlling part, illumination, and signaling and safety signal protection. Movabl power station can satisfy power supply for ship loader and supporting feeding equipments.
