hydraulic press brake/bending machine/CNC machines

Specifications

hydraulic press brake/bending machine/CNC machines , hydraulic press brake

Technical datas:

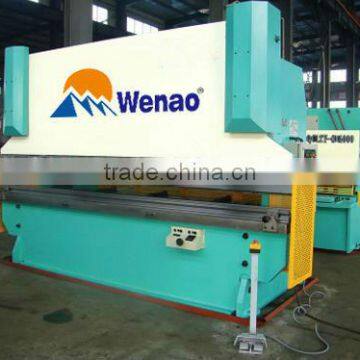

Hydraulic press brake machine, WC67Y-160/6000

 MAIN COMPONENTS:

hydraulic elements   :  Busch (Germany)/OMEGA(U.S.A)

digital readout : ESTUN E10D
mail motor,main electric parts : Siemens (Germany)

seal:Nok (Japanese).
Guarantee  :14 months from the date of B/L.

CHARACTOR:

1)whole steel-welded,standard upper and lower dies,hydraulic transmission system,foot pedal with emergency stop.

2)The machine equips with DRO(digital readout) system to display the values of ram and backguage,(ball screws),and equip the side and back guard.to equip CNC system,you can choose  the system E-20+ CNC(made in China) or Delem 51 system (from Netherlands),All price include the servo-motor, To equip with light curtains for rear of press brake,you can choose the system from China or sick from Germany.

 All include the servo-motor.

To equip with light curtains for rear of shearing machine,you can use system from China madeor sick from Germany.

 WC67Y-160/6000 hydraulic press brake,technical data as following:
Nominal  Force : 1600kn
Length of worktable  : 6000mm
length of walls : 4880mm
Ram stroke   : 320mm
throat depth : 320mm
Opening height   : 580mm
Amount of ram adjustment : 300mm
Distance of back gauge   : 0-600mm (ball screws)
Stroke  : 5times/minute
No.of main cylinders  : 2 pieces
No.of compensating cylinders   : 3 pieces
Main power   : 15kw(Siemens,Germany)
power for back gauge (ball screw)  : 0.55kw(Siemens,Germany)
power for ram adjust  : 0.55kw(Siemens,Germany)
hydraulic elements  : Busch (Germany)/OMEGA(U.S.A)
electrical elements   : Siemens (Germany)
delivery  : 60days
payment : 30% in advance,balance before shipment,or L/C at sight
Guarantee  : 14 months from the date of B/L
Dimension  : 650x230x350cm
Net weight  : 32ton

The machine equips with DRO(digital readout) system to display the values of ram and
backguage,(ball screws),and equip the side and back guard.
to equip CNC system,if you use the system from China E-20+,E-200 or use Delem 41,Delem 51 system (from Netherlands)
