PRESS BRAKE

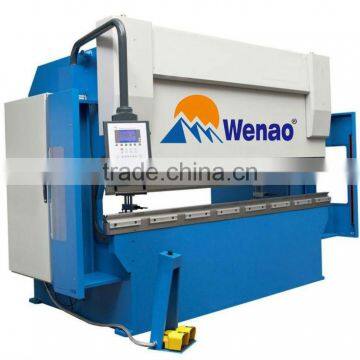

hydraulic press brake

hydraulic press brake WC67Y-80/4000 technical datas as following:
Nominal  Force                                  :800kn
Length of worktable                         :4000mm
length of walls                                  :3000mm
Ram stroke                                       :110mm
Opening height                                 :420mm
Amount of ram adjustment               :100mm
Distance of back guage                    :0-400mm (ball screws)
Stroke                                               :12 times/minute
Main power                                       :7.5kw(Siemens,Germany)
power for back guage (ball screw)   :0.55kw(Siemens,Germany)

hydraulic system                               : OMEGA(U.S.A)

electrical system                               :Siemens(Germany)
power for ram adjust                        :0.55kw(Siemens,Germany)

MAIN COMPONENTS:

integrated hydraulic system,

hydraulic elements   : OMEGA(U.S.A).

digital readout : south korea.
mail motor,main electric parts : Siemens (Germany).

seal:Nok (Japanese).
Guarantee  : 14 months from the date of B/L.
Autonics readout and rotary encoder.

CHARACTOR:

1)whole steel-welded,standard upper and lower dies,hydraulic transmission system,foot pedal with emergency stop.

2)The machine equips with DRO(digital readout) system to display the values of ram and backguage,(ball screws),and equip the side and back guard.
to equip CNC system,you can choose  the system E-20+ CNC(made in China) or Delem 51 system (from Netherlands),All price include the servo-motor, To equip with light curtains for rear of press brake,you can choose the system from China or sick from Germany.

 All include the servo-motor.

To equip with light curtains for rear of shearing machine,you can use system from China madeor sick from Germany.

  Press brake technical details:

 Example:   How to count bending power?

                 8(Ratio) x 2 mm(thickness) x 2.5 meter (width)= 40.

                 so, you need WC67Y-40T/2500 press brake to bend 2 mm thick x2500mm width mild steel.

•How to get a accurate quotation from us ?

1,tell us metal thickness.

2,tell us metal widthness.

• How to check shipping cost from China to my country?

Very simple,tell us your city or port.

• How to check imported charges or tax ?

Call your l them machine HS code.

Press brake and rolling machine are 84622990. shearing machine is 84623990.

• How to see our machine in your local place?

We have sold lots of machines to the world,in most situation,you can see our machine

in your country,however,we can not promise 100%,so,confirm with us by email.

• How to repair&maintain our machine ?

Generally,the hydraulic machine is not easy to break.even though the problem occur,it is small problem.

we can solve it through email and video.

• do you offer commissioning service ?

yes,we can offer commissioning service,but,the buyer need to afford plane tickets.

• Do you offer teaching&training ?

yes, we prefer that you arrange your worker to China. or our engineer go to your country.

• what policy for broken parts?

within one year,we offer free parts.

if beyond one year,you need to buy by factory cost

Detailed Product Description

1. Export quality license by government
2. SME factory control cost easy focus on quality
4. CE/ISO
3. English video manual

FEATURE OF      CNC hydraulic press brake/automatic bending machine/plate press brake/press brake bending machine

1.It’s very popular in metalworking market for bending metal sheet

 2.Various model of bending 4-40mm thickness and 1000-9000mm length.

 3.Steel welded construction, vibrating aging function

 4.Servo backgauge and RV working table comensation is optional

 6.Motorized back gauge and cutting number can digital readout ,E10 or CNC100

 7.Power break protection device to guarantee safety during maintenance

 8. Debug and goodafter-sales service

CHARACTOR:

1)whole steel-welded,standard upper and lower dies,hydraulic transmission system,foot pedal with emergency stop.

2)The machine equips with DRO(digital readout) system to display the values of ram and backguage,(ball screws),and equip the side and back guard.to equip CNC system,you can choose  the system E-20+ CNC(made in China) or Delem 51 system (from Netherlands),All price include the servo-motor, To equip with light curtains for rear of press brake,you can choose the system from China or sick from Germany.

 All include the servo-motor.

To equip with light curtains for rear of shearing machine,you can use system from China madeor sick from Germany.

  TECHNOLOGY DATA OF CNC hydraulic press brake
