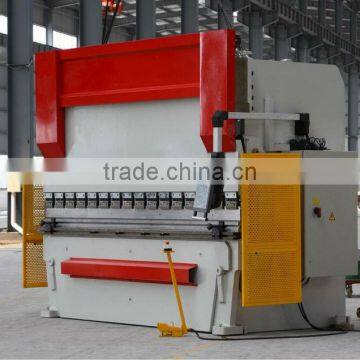

Hydraulic press brake WE67K-80/2500 press brake / bending machine
- Nantong/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | WENAO | Model Number | WE67K-80/2500 | |
| Machine Type | Press Brake | Raw Material | Steel Bar | |
| Material / Metal Processed | Stainless Steel | Power | Hydraulic | |
| Automation | Automatic | Extra Services | Machining | |
| Certification | Other, CE& ISO 9001:2000 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Hydraulic press brake WE67Y bending machine1.CE&ISO certificated
2.20 years experience
3.Good quality& Reasonable
Hydraulic press brake WE67K-80/2500 press brake / bending machine, Hydraulic press brake WE67Y bending machine, CNC hydraulic press brake for sale, Small CNC press brake
Main features:
WE67K Series Press brakes/ metal bender adopt electro-hydraulic synchronization to control the ram with high automation & efficiency.
1. It equipped with Delem control system (made in Netherlands) (Cybelec could by used also), raster displayer, hydraulic value, servo motor are all importing products.
2. It adopts reliable electro-hydraulic proportional synchronization servo and its parallelism precision could reach 0.02mm. It can support eccentric load.
3. Ram stroke (Y1, Y2) and back gauge are controlled by controller.
4. Back gauge is adopted with ball screw and linear guide way, the repeat positioning precision of X is very high and act smartly.
5. The models are available in variety of range from 100 ton up to 500 ton and length from 2000 mm up to 6000 mm. Any tailor-made are available on request.
| Model | Nominal | Length of | Distance | Throat | Stroke | Max. open | Motor | Net weight | Dimensions |
| force | workbench | between vertical | depth | height | power | (L x W x H) | |||
| (KN) | (mm) | columns(mm) | (mm) | (mm) | (mm) | (kw) | (kg) | mm | |
| WE67K-63/2500 | 630 | 2500 | 2275 | 250 | 200 | 380 | 7.5 | 4100 | 3100x1725x2355 |
| WE67K-63/3200 | 630 | 3200 | 2975 | 250 | 200 | 380 | 7.5 | 4900 | 3800x1725x2355 |
| WE67K-80/2500 | 800 | 2500 | 2250 | 250 | 200 | 380 | 7.5 | 5200 | 3100x1725x2240 |
| WE67K-80/3200 | 800 | 3200 | 2950 | 250 | 200 | 380 | 7.5 | 5800 | 3800x1725x2240 |
| WE67K-80/4000 | 800 | 4000 | 3750 | 250 | 200 | 380 | 7.5 | 7600 | 4600x1765x2400 |
| WE67K-100/2500 | 1000 | 2500 | 2220 | 320 | 200 | 415 | 7.5 | 7100 | 3150x1850x2530 |
| WE67K-100/3200 | 1000 | 3200 | 2920 | 320 | 200 | 415 | 7.5 | 7900 | 3850x1850x2690 |
| WE67K-100/4000 | 1000 | 4000 | 3720 | 320 | 200 | 415 | 7.5 | 9000 | 4750x1850x2800 |
| WE67K-125/2500 | 1250 | 2500 | 2200 | 320 | 200 | 415 | 7.5 | 7100 | 3150x1850x2530 |
| WE67K-125/3200 | 1250 | 3200 | 2900 | 320 | 200 | 415 | 7.5 | 8050 | 3850x1850x2690 |
| WE67K-125/4000 | 1250 | 4000 | 3700 | 320 | 120 | 415 | 7.5 | 9700 | 4750x1850x2800 |
| WE67K-160/3200 | 1600 | 3200 | 2850 | 320 | 200 | 455 | 11 | 12000 | 3900x1940x2630 |
| WE67K-160/4000 | 1600 | 4000 | 3650 | 320 | 200 | 455 | 11 | 14000 | 4700x1940x2800 |
| WE67K-160/6000 | 1600 | 6000 | 5650 | 320 | 200 | 455 | 11 | 19500 | 6700x2340x3100 |
| WE67K-200/3200 | 2000 | 3200 | 2795 | 320 | 200 | 455 | 15 | 15800 | 3900x2000x2970 |
| WE67K-200/4000 | 2000 | 4000 | 3595 | 320 | 200 | 455 | 15 | 17200 | 4900x2000x2990 |
| WE67K-200/6000 | 2000 | 6000 | 5595 | 320 | 200 | 455 | 15 | 24600 | 6900x2100x3700 |
