Home > Products > Other machines > High Performance Open-type Press / Punching Press /power Press
High Performance Open-type Press / Punching Press /power Press
- Shanghai
- T/T D/P D/A
You May Like
Product Details
| Brand Name | Wenao | Model Number | JH21-80 | |
| Condition | New | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1) Steel welded body, Mechanical press with fix stroke2) Overload protected,Safety device, PLC control
3) Wet clucth

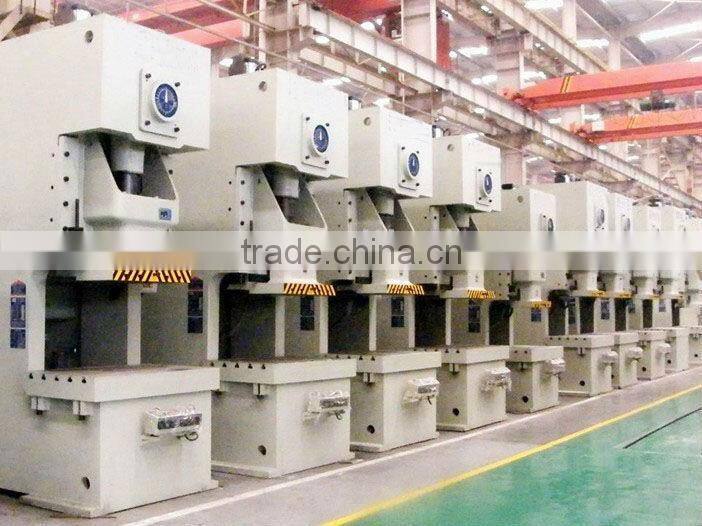

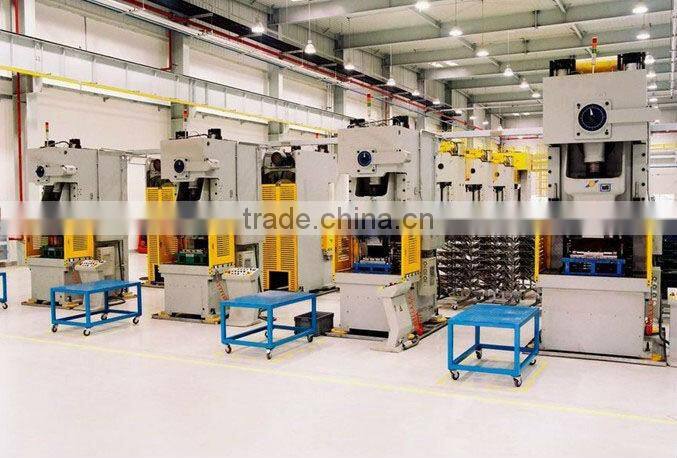

high performance open-type press / punching press /power press
Description:
Universal high performance presses are widely used in the fields of aeronautics, auto, agriculture machines, electric machines, apparatuses and meters, medical equipments, electrical home appliance and hardware.
1.Welded frame with quality steel which means good rigidity.
2.Square figure long guide with six friction faces makes abrasion resistant and punching precision.
3.Hydraulic overload protector has sensitive response and reliable motion, which can protect the die when overloading.
4.Combined pneumatic clutch and brake are made of friction material, which means long service life.
5.Closed gear-driven, dipped in lube, which drives stably with low noise.
6.Slide with counter balancer, which will eliminate the clearance and improve the stability and precision.
7.Intermittent auto lubrication makes every point get fine and safe lubrication. Thus, long service life is saved.
8.PLC electric control system is safe and reliable.
9. Air cushion, photo guard, auto feeder and speed die changing are optional.
Key Components:
NO | Name | Manufacture |
1 | Pneumatic dry clutch - brake | TAIWAN(Ningbo)Hua Lin |
2 | PLC Control | Japan Mitsubishi |
3 | Text Indicator | TAIWAN DELAT |
4 | Key Electrical components | Schneider |
5 | Hydraulic overload protection | Japan SHOWA |
6 | Double electromagnetic valve | Wuxi Tuofa |
7 | Lubrication System | American BIJUR |
8 | Main pneumatic element | Jinan Hua Neng |
Item | Unit | JH21-80 | JH21-63 | |
Nominal Pressure | KN | 800 | 630 | |
Nominal Pressure Stroke | mm | 4.5 | 4 | |
Slide Stroke | mm | 130 | 120 | |
No. of Strokes per minute | Fixed | SPM | 60 | 60 |
Variable | SPM | 40-70 | 45-75 | |
Max. die Height | mm | 330 | 300 | |
Die Height Adjustment | mm | 80 | 70 | |
Throat Depth | mm | 310 | 260 | |
| F.B. | mm | 600 | 500 |
L.R. | mm | 1000 | 850 | |
Thickness of Bolster | mm | 140 | 130 | |
| F.B. | mm | 460 | 400 |
L.R. | mm | 540 | 480 | |
Stem hole | mm | φ50X80 | φ50X65 | |
Distance between Uprights | mm | 600 | 580 | |
Optional Cushion | Pressure | KN | 60 | 60 |
Stroke | mm | 50 | 50 | |
Main Motor | Model | Y132M-4 | Y132S-4 | |
Power | KW | 7.5 | 5.5 | |
Slide Motor | Model | YPE500-4Z |
| |
Power | kW | 0.5 |
| |
Overall Dimension | F.B. | mm | 1774 | 1590 |
L.R. | mm | 1186 | 1090 | |
Height | mm | 3085 | 2730 | |
Gross Weight | kg | 6900 | 5700 | |
