High Gain Antenna 806-960MHz Panel Antenna HK-8090-D12L65 Wholesales
- shenzhen port
- T/T Credit Card PayPal
You May Like
-
Good Price Base Station 806-960MHz Directional Panel Antenna HK-8090-D15L65 Wholesales
-
New Arrivel Bu353s4 With Sirf IV GPS Receiver Gps Antenna Receiver
-
GAM-1512 GPS Antenna Module
-
GA-60 Drills a Hole Fixed GPS Antenna(Low Input Voltage)
-
SKYLAB 3g Usb Modem Gps Best Price
-
SKYLAB Android Usb Gps Dongle Best Price
Product Details
| Place of Origin | Guangdong, China | Brand Name | hkshanhai | |
| Model Number | HK-8090-D12L65 |
Product Description
high gain antenna 806-960MHz panel antenna HK-8090-D12L65 wholesales
panel antenna
What is the Features of directional pannel antenna?
Features:
1.High gain |
2.Work around the clock |
3.Optimization of sizes |
4.Dual-polarized |
5.Application: |
6.CDMA,GSM system |
7.Wireless communications and data transmission system |
What is the Specifications of directional pannel antenna?
HK-8090-D12L65 Electric Specifications | |
Frequency rang(MHz) | 806~960 |
Polarization | +-45 |
Gain(dBi) | 2*12 |
Beamwidth | H:65 V:30 |
Front-to-back ratio(dB) | >=25 |
Input Impedance(Ω) | 50 |
VSWR | <=1.5 |
Isolation between ports | >=28dB |
Cross-polar ratio | >=15dB@0 degree >=10dB@+/-60 degree |
Sidelobe suppression for first sidelobe above horizon | 15 dB |
Max power(W) | 400 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Connector model | 2-N Female head 2-N Female |
antenna size (mm) | 680*280*80 |
Packing size(mm) | 700*320*170 |
Antenna weight (kg) | 6 |
Radome material | UPVC |
Radome color | Gray |
Mechanical tilt | 0~10(degree) |
Working Temperatu | -40~60(degree) |
Rated Wind Velocit(m/s) | 60 |
Pole diamete(mm) | 50~75 |

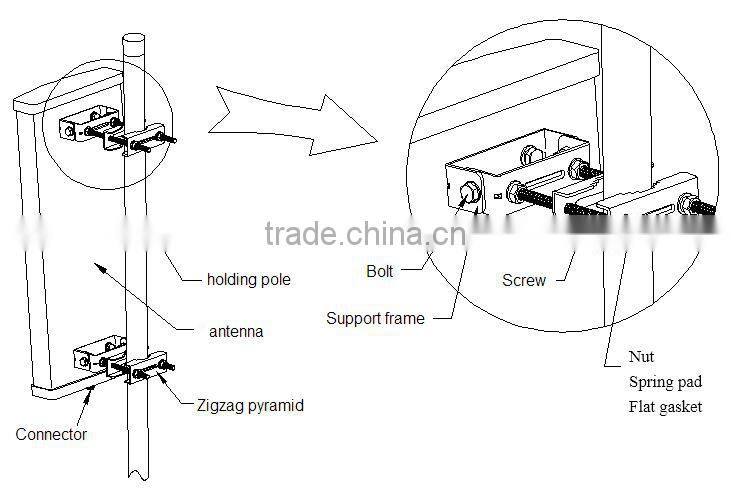

What is the Installation of directional pannel antenna?
Installation setup
| 1. put antenna upper and lower end sawtooth clip yards shàng of nut, and play pad and the flat pad twist xià, scored outside of Sawtooth clip yards, will antenna has joints of end towards xià, with sawtooth clip yards hold outside diameter for 50~75mm of hold Rod shàng, again put scored of Sawtooth clip yards through M8 of screw rod, put shàng flat pad, and play pad, then twist tight nut. |
| 2. remove the connector cover of the antenna and connect the antennaconnector and the sealed connector end of the antenna. |

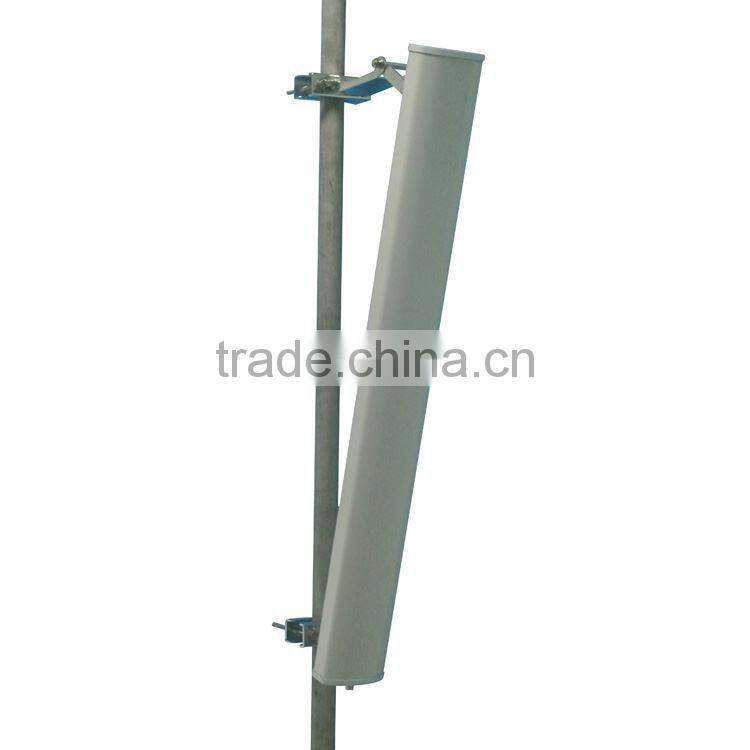

3. loosen the connection between the two mounting bolts, suitably adjust thetilt angle of the antenna, and allows it to receive the signal for the best,and then tighten all nuts. |
Testing report、VSWR curve

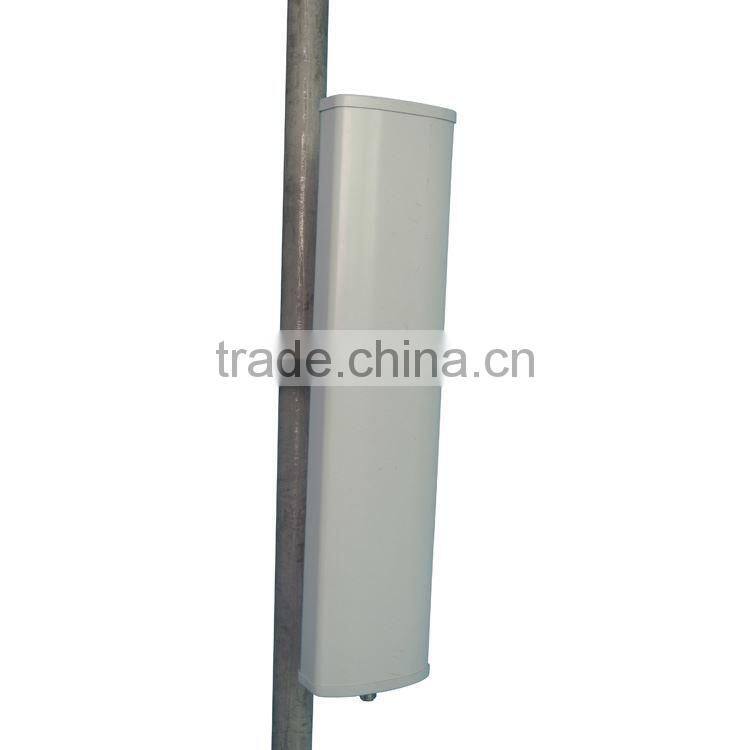

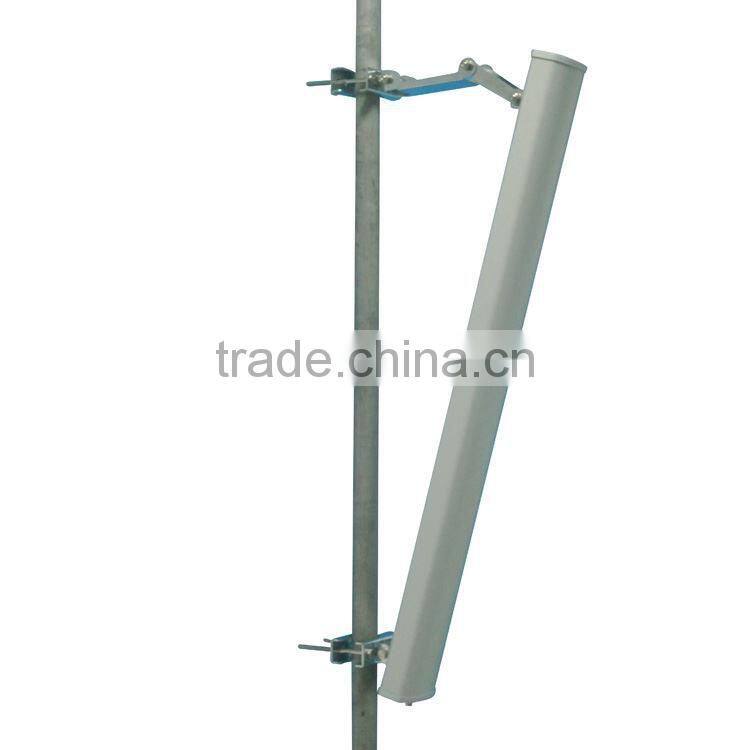

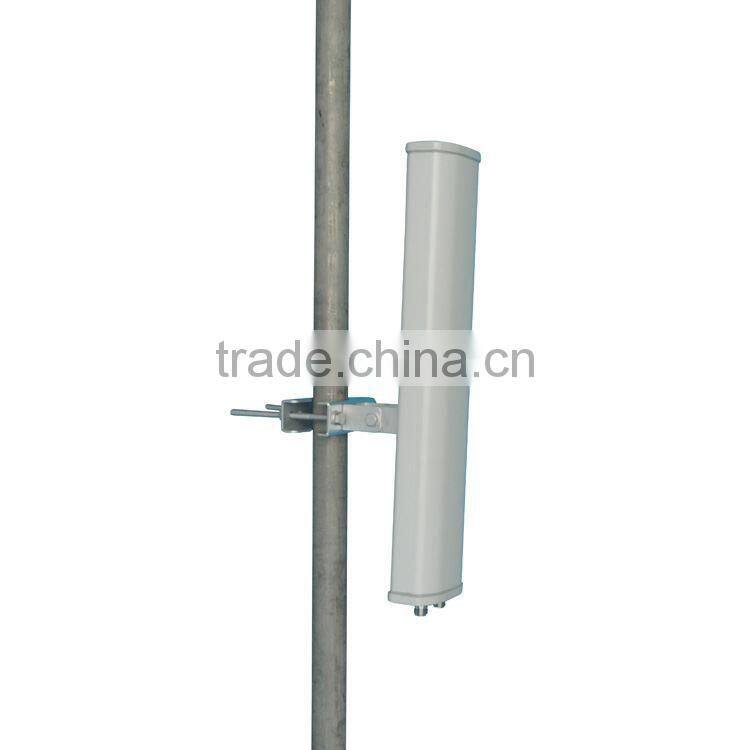

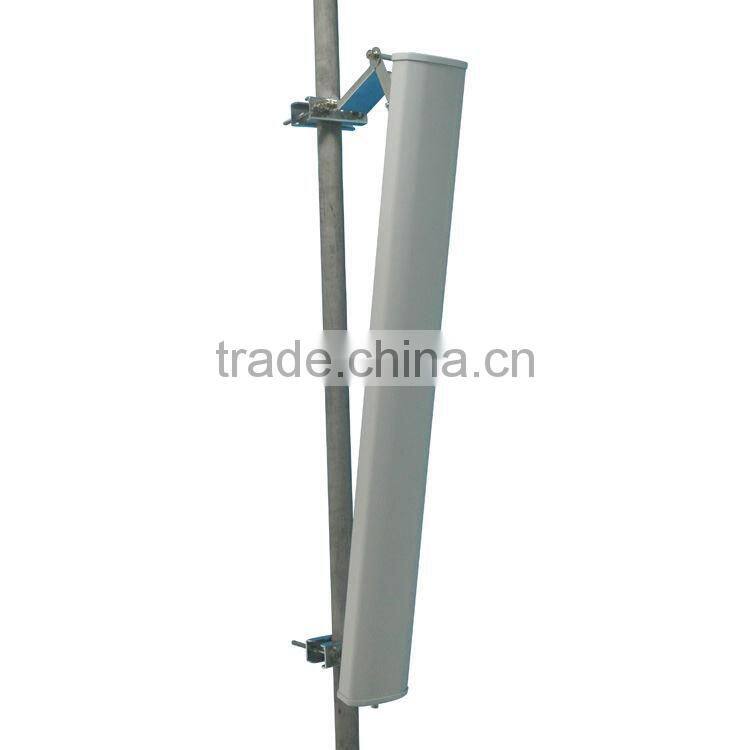

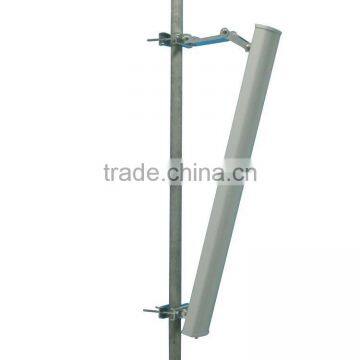

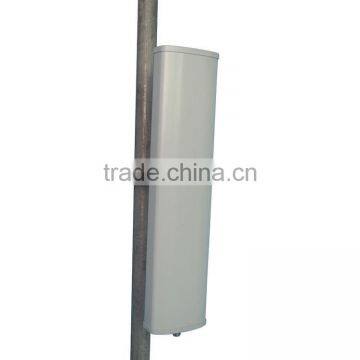

What is the pictures of directional pannel antenna?
|
|
|
|
|

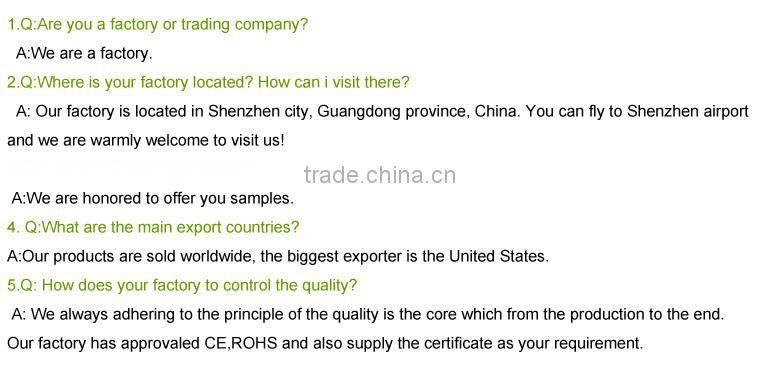

Why the customer choose us ?
