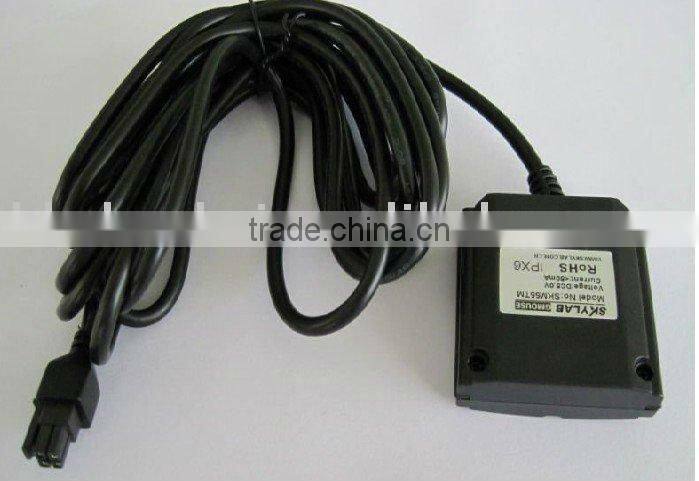

SKYLAB Usb 3g Dongle Gps Best Price
- hk /shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
SKYLAB Android Gps Receiver With 4800 Bps & Usb Port Best Price
-
Skylab Gps Module SKM55 Gps Mouse G-mouse Gps Receiver
-
SKYLAB Gps Usb Modem Best Price
-
Original GlobalSat Bu353 BU353S4 GPS Receiver Gps Tracker Tk103b
-
G-mouse SKM55 Gps Module in Navigation&GPS
-
G-mouse SKM55 Gps Module Fta Satellite Receiver
Product Details
| Type | Gps Receiver | Use | Automotive | |
| Screen Size | Other, skm55 | Function | Other | |
| Place of Origin | Kansas, United States | Brand Name | skylab | |
| Model Number | skm55 |
Product Description
Specifications
SKYLAB usb 3g dongle gps best priceSkyNav gps module SKM55
a complete GPS engine module
super sensitivity,
SKYLAB usb 3g dongle gps best price best price
SkyNav gps module SKM55 a complete GPS engine module super sensitivity, ultra low power
The SkyNav SKM55 Series with embedded GPS antenna enables high performance navigation in the most stringent applications and solid fix even in harsh GPS visibility environments.
- Ultra high sensitivity: -165dBm
- 22 tracking/66 acquisition-channel receiver
- WAAS/EGNOS/MSAS/GAGAN support
- NMEA protocols (default speed: 9600bps)
- Internal back-up battery and 1PPS output
- One serial port and USB port (option)
- Embedded patch antenna 18.2 x 18.2 x 4.0 mm
- Operating temperature range: -40 to 85
- RoHS compliant (Lead-free)
- 54mm Diameter 15.6mm Height
Performance Specification
Parameter | Specification | |
Receiver Type | L1 frequency band, C/A code 22 Tracking / 66 Acquisition-Channel | |
Sensitivity | Tracking Acquisition | -165dBm -148dBm |
Accuracy
| Position Velocity Timing (PPS) | 3m 3D RMS without SA 0.1m/s without SA 60ns RMS |
Acquisition Time | Cold Start Warm Start Hot Start Re-Acquisition | 36s 33s 1s <1s |
Power Consumption | Tracking Acquisition Sleep/Standby | <30mA @ 3V Vcc 40mA TBD |
Navigation Data Update Rate | 1Hz |
|
Operational Limits | Altitude Velocity Acceleration | Max 18,000m Max 515m/s Less than 4g |
| Antenna Specifications | OutlineDimension Center Frequency Bandwidth Impedance Axial Ratio Polarization | 18.2 x 18.2 x 4.0 mm 1575 ± 3 MHz 10 MHz min 50 Ω 3 dB max RHCP |
| Mechanical requirements | Dimension Weight | 54mm Diameter 15.6mm Height 9g |
| Power consumption | VCC Current | 5V ±5% 55mA(typical) |
| Environment | Operating temperature Storage temperature Humidity | 40 ~ +85 (w/o backup battery) 0 ~ +125 95% |
...
