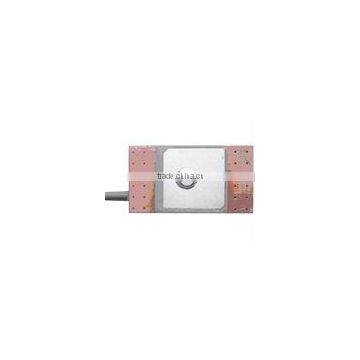

SHANHAI wifi patch antenna SHN081
Negotiable
/ Piece
100 Pieces(Min. Order)
- Zhejiang
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SHANHAI | |
| Model Number | SHN081 |
Product Description
Specifications
wifi patch antenna1.Size:22.5x12.4x6.4mm
2.DC Voltage 2.7~3.3 V
3.DC Current 5~8 mA
4.Cable RF1.13 40mm
wifi patch antenna
Name:SHN081
No:105Model:SHN081
Size:22.5x12.4x6.4mm
Product Description:
Center Frequency(MHz) 1575.42 MHz
Band Width(MHz) ±2.5 MHz
V.S.W.R(in BW) 1.5:1
Gain(Zenith) 0 dB
Polarization RHCP
Impedance 50 Ω
LNA Gain 16±2 dB
Noise Figure 1.5 dB
Filter Out Band Attenuation
30dB Min f0+40MHz
30dB Min f0-40MHz
40dB Min f0+100MHz 35dB Min f0-100MHz
DC Voltage 2.7~3.3 V
DC Current 5~8 mA
Cable RF1.13 40mm
Mounting Internal
