2 Silos Concrete Batching Machine PLD800
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | shengya | |
| Model Number | PLD800 Batching Machine | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
2 Silos Concrete Batching Machine PLD800
Contact:Nicole Yau
Tel:+0086 18816786369(Whatsapp)
QQ&Wechat:458317491
Skype:nicole31795
Introduction of 2 Silos Concrete Batching Machine PLD800:
1,The PLD Electronic Computation Material Compounding Machine is an automatic batching equipment, which is mainly used to match kinds of materials proportionally for live construction.It can be designed into four or more material boxes as customer 'demand.
2,It can finish automatically 3-6 kinds of material batching process like sand, stone and cement according to concrete ratio designed by user.
3,Electric weighing, computer control, digital display, cable remote control is adopted, with accurate weighing and high batching precision, high speed, good control ability, easy operation etc.
4,The series concrete batching machine can be combined with corresponding mixer to form different concrete batching plant.
Specifications of 2 Silos Concrete Batching Machine PLD800:
Power | 6.6kw |
Overall Size | 5600*1830*2760mm |
Electrical source | 380V/50Hz |
Total Mass | 2300kg |
Productivity | 48m3/h |
Max. Cycle | 60s |
Loading height | 2400mm |
| Recommended Mixer | JS500, JS350 |
Batching accuracy | ± 2% |

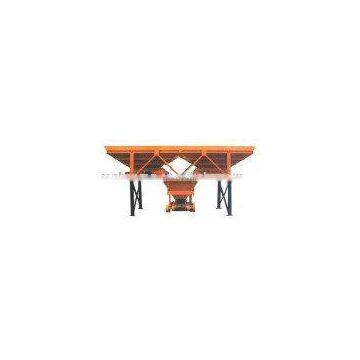

Picture show of 2 Silos Concrete Batching Machine PLD800:
PLD1200
the volume of hopper | 1200L |
production capacity | 72m3/hour |
Max.shift cycle | 50 seconds |
error of weighing | less than 1% |
the diameter of hopper | 160mm |
width of belt | 500mm |
speed of belt | 123m/minute |
motor | Y132S-6 3KW 960r/minute |
Packing & Shipping:
Packing:Nude or Iron Box
Delivery Time:30 days after the receipt of the down payment
Shipping Port: Qingdao, China
We have our long-term and reliable freight forwarder, which could guarantee to provide our customer with best service, but we could also use the clien's nominated freight agent as required.
Company Introduction:
Established in 1995, Shandong Shengya Machinery Co.,Ltd have been doing the brick machines for almost 20 years. 19 domestic branches and several overseas after sale service centers have been set up.
Our categories falls into the block making machine,hydraulic color figure block machine, contrete pipe machine, concrete mixer etc.
Basing on the principle of "Making development with high quality", our products are finished with careful design,and in 2006, we were awarded the honor of "State InspectionFree Product"."Shandong Famous Brand",and have passed the ISO 9001 Quality System Certification.Total 43 patents have been applied and certified until now.
We pay high attention the market demand at home and abroad, and attend the different kinds of fair in order to get the newest market trend at the very first place. Good feedbacks have been gained from Canton Fair, International Fair and so on.
We have confidence that Shengya's future would be better and better,and we are here to warmly welcome all the customer or friends to take a visit at our factory,and we believe that cooperate with us would be your best opportunity to get win-win!!
Outstanding Services:
Selling is only the beginning of our service, our good after-sale service would provide our customer with both the technology and the skills.
If needed, our overseas technicians would be there to help installation and teach the using method.But the correspondent cost would be born by the buyer.
Any question about the machine,pls feel free to contact:
Nicole Yau
whatsapp:18816786369
QQ&Wechat:458317491
skype:nicole31795
Shengya is worthy of your trust!!
