Multi Purpose Break-out LSZH Optic Fiber Cable GJFJV
- shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | NECERO | |
| Model Number | MPBC | Type | Coaxial | |
Product Description
Specifications
multi break-out optic fiber cableGood uniformity indoor optical cable
PVC LSZH indoor FIBER cable
ISO9001:2000 TLC factory
Our customers
Description

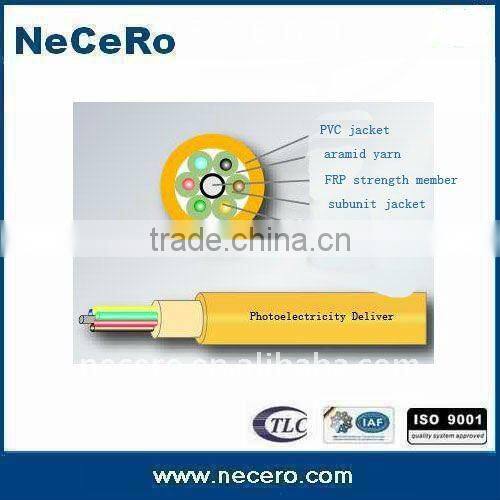

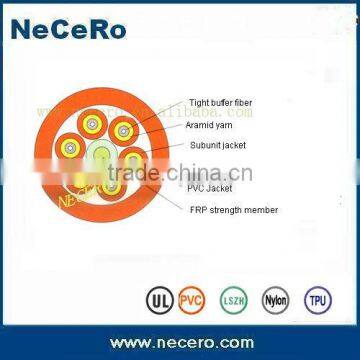

The tight buffered fibers which are sheathed with special buffer material to protect the fiber are stranded around the FRP(Fiber reinforced plastic),then, a layer of Aramid yarn is applied as a strength member,the cable is copleted with PVC jacket.(02-12 fiber, Stranded structure, FRP Strength member,1-fiber subunit(Φ900μm Tight buffer, Aramid yarn),PVC jacket.
Standards
Comply with Standard YD/T 1258.4-2005,ICEA-596,GR-409, IEC794,etc;and meet the requirements of UL approval for OFNR.
Cable code
| BOC-02 | BOC-04 | BOC-06 | BOC-08 | BOC-10 | BOC-12 |
Cable Diameter(mm) | 7.2±0.5 | 7.2±0.5 | 8.3±0.5 | 9.4±0.5 | 10.7±0.5 | 12.2±0.5 |
Cable Weight (kg/km) | 45 | 45.2 | 62.5 | 85.9 | 109 | 140 |
TBF Diameter | 900±50μm | |||||
Mechanical Characteristics
Tensile Strength | Long term | 200N |
Short term | 660N | |
Crush Resistance | Long term | 300N/100mm |
Short term | 1000N/100mm | |
Bending Radius | Dynamic | 20*D Cable Diameter |
Static | 10*D Cable Diameter |
Optical Characteristics
|
| 50/125μm | 62.5/125μm | G652 | G655 |
Attenuation(+20°C) | @850nm | ≤3.5dB/km | ≤3.5dB/km |
|
|
@1300nm | ≤1.5 dB/km | ≤1.5 dB/km |
|
| |
@1310nm |
|
| ≤0.45Db/km | ≤0.50Db/km | |
@1550nm |
|
| ≤0.30Db/km | ≤0.50Db/km | |
Bandwidth(ClassA) | @850nm | ≥500Mhz·km | ≥200Mhz·km |
|
|
@1300nm | ≥1000Mhz·km | ≥600Mhz·km |
|
| |
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA |
|
| |
Cable Cut-off Wavelength λcc |
|
| ≤1260nm | ≤1480nm | |
Attenuation at temperature cycling α(-20°C~+85°C)
| @1300nm | ≤0.25dB/km | ≤0.25dB/km |
|
|
@1550nm |
|
| ≤0.10dB/km | ≤0.10dB/km | |
Environmental Characteristics
Transport Temperature | -20°C~+60°C |
Storage Temperature | -20°C~+60°C |
Installation Temperature | -5°C~+50°C |
Operation Temperature | -20°C~+60°C |
Necero Optical Fiber and cable(china) Co.,Ltd has more than 10 years' experience in R&D and manufacturing in the fieled of optical fiber communication,which is capable of producing a variety of optical fibers according to diversified demands of customers.OEM SERVICE are provided.
Please feel free to contact me if your have any questions.
