Home > Products > 1. Solar Collectors > High Quality Split Solar Water Heater (25Tube)

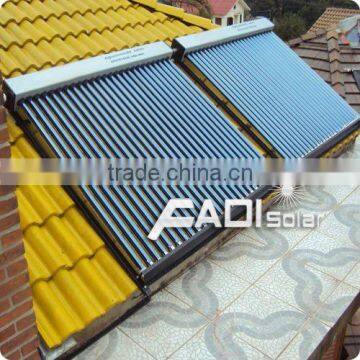

High Quality Split Solar Water Heater (25Tube)
- Shanghai Ningbo Sea-[prt
- T/T L/C D/P D/A Credit Card
You May Like
-
Haining Fadi Solar Water Heater Collector Supplier (50Tube)
-
2016 Fadi Keymark and SRCC Certified 18 Tube Solar Collector System
-
2KW DC to AC On/Off Hybrid Inverter /Solar Inverter (FD-HY2000-M)
-
300W DC to AC Inverter With Battery Charger (FD-IC-300P)
-
500W DC to AC Inverter With Charger (FD-IC-500P)
-
3000W Off Grid DC to AC Pure Sine Wave Inverter (FD-IV-3000P)
Product Details
| Type | Evacuated Tube | Pressure | Unpressurized | |
| Circulation Type | Direct / Open Loop (Active) | Heating System | Thermosyphon (Passive) | |
| Connection Type | Direct-Plug | Installation | Freestanding | |
| Housing Material | Other, Galvanized Steel | Certification | CE, Other, CE, ISO9001:2000 | |
| Place of Origin | Zhejiang, China | Brand Name | Split Solar Water Heater,OEM,FADI | |
| Model Number | FD-NPC58-30D |
Product Description
Specifications
Split solar water heater.Competitive price and good quality
.CE,ISO9001
.5-15 years warranty
.24hours service
Split solar water heater details:
Model: FD-NPC58-25
Split solar water heater features
1. Temperature conservation layer in chest
2. Economical and practical
3. Environmental conservation and energy saving
4. According to the required configuration, it can be divided into two types, one is vertical and the other is horizontal
Split solar water heater applications
1. Hotels, resorts, hospitals and hostels
2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
7. In-process heating
8. Health clubs (Steam / Sauna)
Solar water heater collector material specification
Descripition | Solar water heater collector |
Material of out manifold | 0.31-0.4mm thickness color steel/ fluorine carbon steel |
Material of inner tank | Food grade 0.4mm thickness SUS304 stainless steel |
Tank insulating layer | 40mm 45kg/m³ high-density polyurethane foamed |
Inlet and outlet hole | Male G3/4 |
Max pressure | 0.05 Mpa |
Solar collector tube | 3.3 Borosilicate glass with N/Al coating |
Thickness of glass tube | 1.6mm |
Vacuum tube tightness | P≤0.005 Pa |
Absorption | as=0.93-0.96(AM1.5) |
Emission ratio | εh=0.04-0.06(80C±5C) |
Idle sunning property parameters | Y=220~260m2.C/KW |
Average heat loss coefficient | ULT=0.6~0.7W/(m2.C) |
Bracket: | 1.5mm thickness Galvanized Steel |
Welding: | Argon arc welding |
Fastening pieces: | Made of stainless steel screw |
Absorber area | 2.343 m² |
Tube quantity | 25tube 58x1,800mm |
